SC-6-NSI
SKU: SC-6-NSI
MPN: SC-6-NSI
Key specs
View all- Color
- Blue
- Material
- Copper
- Number Of Poles
- 1
- Size
- L=1.00 - OD=.300 - ID=.200
- Type
- Short Barrel - CU Splice
- Voltage Rating
- 600 V
Description
Product overview

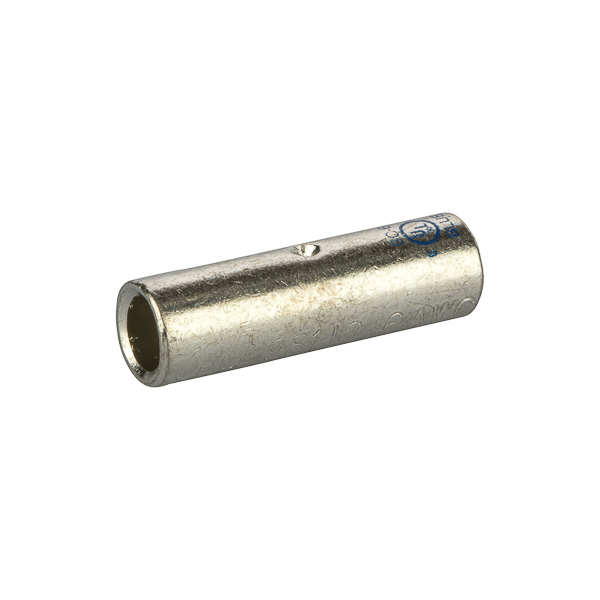

StandardBarrel TinnedCopperSplice 6 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
StandardBarrel TinnedCopperSplice 6 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI SC-6 CU CMP Splice Short 6 AWG
- Invoice description
- CU CMP Splice Short 6 AWG
Specifications
- UPC
- 662381037015
- Color
- Blue
- Material
- Copper
- Number Of Poles
- 1
- Size
- L=1.00 - OD=.300 - ID=.200
- Type
- Short Barrel - CU Splice
- Voltage Rating
- 600 V
- Color
- Blue
- Conductor Range
- # 6 AWG (STR)
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Material
- Copper
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=1.00 - OD=.300 - ID=.200
- Standard
- UL486
- Sub Brand
- Copper Compression
- Temperature Rating
- 90 C
- Type
- Short Barrel - CU Splice
- Voltage Rating
- 600 V
