$101.50 / EA
manufacturer discounts
learn about discounts
- $94.25 for $200.00+
- $90.63 for $500.00+
- $87.00 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

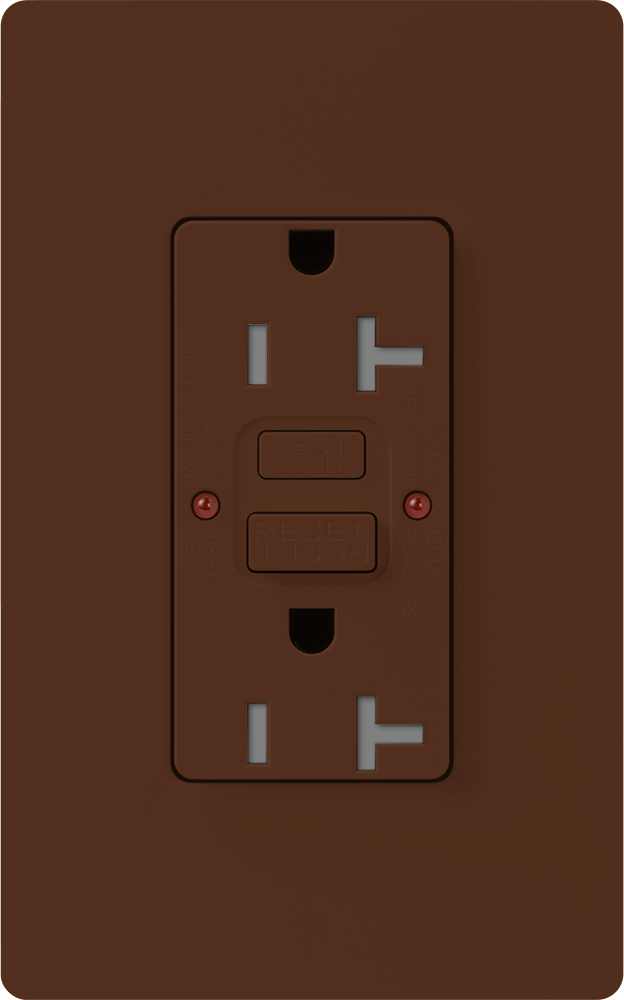

Satin Colors tamper resistant, Self-testing GFCI receptacle, 20A in sienna
Satin Colors tamper resistant, Self-testing GFCI receptacle, 20A in sienna
150
- Continuous self-test functionality - disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing "continuous self-testing" that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less
- Manual Test - this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, causing the mechanical system to react based on the action of the solenoid.
- Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- Clear visual indication of GFCI status LED indicating lights: - Green LED (power to the device) - Red LED (trip condition/ground fault condition) - Flashing Red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket, quick and dependable termination.
- Continuous self-test functionality - disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing "continuous self-testing" that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less
- Manual Test - this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, causing the mechanical system to react based on the action of the solenoid.
- Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- Clear visual indication of GFCI status LED indicating lights: - Green LED (power to the device) - Red LED (trip condition/ground fault condition) - Flashing Red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket, quick and dependable termination.
- UPC
- 784276158855
- UNSPSC
- 39121406
- Country of Origin
- CN
- Amperage Rating:
- 20 A
- Color:
- Sienna
- Material:
- Metal/Plastic
- Number Of Poles:
- 2
- Size:
- 4.69 in (119 mm) x 2.94 in (75 mm)
- Type:
- GFCI receptacle
- Voltage Rating:
- 125 V
- Wattage:
- 2,500 W
- Amperage Rating:
- 20 A
- Color:
- Sienna
- Connection:
- Screw terminal
- Environmental Conditions:
- 0 to 90% humidity, non-condensing
- Insulation:
- Plastic
- Material:
- Metal/Plastic
- Mounting:
- Wallbox
- NEMA Rating:
- 5-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3 to 5
- Size:
- 4.69 in (119 mm) x 2.94 in (75 mm)
- Standard:
- UL, CSA, NOM
- Sub Brand:
- Designer
- Temperature Rating:
- 32 to 104 F (0 to 40 C) F
- Type:
- GFCI receptacle
- Voltage Rating:
- 125 V
- Wattage:
- 2,500 W
- Wire Size:
- 10 to 12 AWG
