SG3A0300KB
SKU: SG3A0300KB
MPN: SG3A0300KB
Key specs
View all- Type
- Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase
Description
Product overview

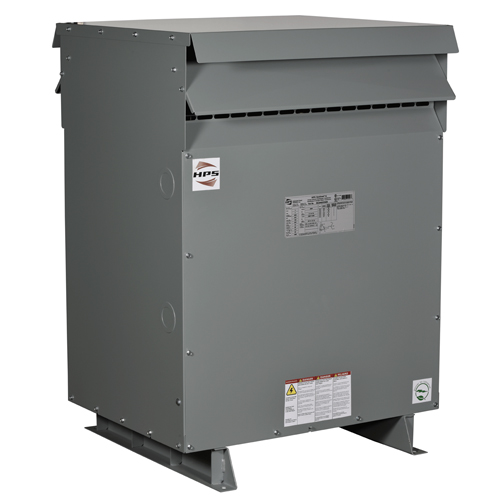

600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 208Y/120 SV, 300 kVA, 3PH, Aluminum Wound
600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 208Y/120 SV, 300 kVA, 3PH, Aluminum Wound
Manufacturer highlights
Optional infrared windows available
Optional infrared windows available
Additional manufacturer notes
- Short name
- HMND
- Feed description
- HMND SG3A0300KB D16/NRC19 3PH 300kV
- Invoice description
- D16/NRC19 3PH 300kVA 480D-208Y/120V AL
Specifications
- UPC
- 803423123765
- UNSPSC
- 39121001
- Country of Origin
- MUL
- Type
- Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase
- Cooling
- Convection cooled
- Enclosure
- DH5-N3R - Indoor or Outdoor
- Frequency Rating
- 60 Hz
- Height
- 52 in
- KVA Rating
- 300
- Length
- 34 in
- Mounting
- Floor Mount
- Number Of Phases
- 3
- Number Of Taps
- ST-20 compliant
- Phase
- A - 3PH Delta-Wye-N
- Primary Voltage
- 480D V
- Secondary Voltage
- 208Y/120 V
- Standard
- CSA, UL
- Sub Brand
- Energy efficient General Purpose Distribution Transformer
- Temperature Rating
- Typical 30 Average/ 40 Maximum Deg C
- Type
- Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase
- Width
- 37.5 in
- Winding
- A - Aluminum
