$508.20 / EA
manufacturer discounts
learn about discounts
- $457.38 for $300.00+
- $435.60 for $500.00+
- $417.45 for $1,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

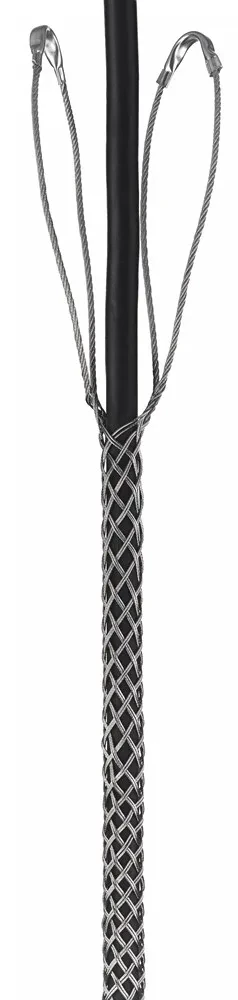

Wire and Cable Management, Support Grips, Heavy Duty, Double Eye, Stainless Steel, 2.00-2.49"
Wire and Cable Management, Support Grips, Heavy Duty, Double Eye, Stainless Steel, 2.00-2.49"
150
- UPC
- 781786007000
- UNSPSC
- 39121719
- Country of Origin
- US
- Material:
- Stainless Steel
- Type:
- Double Eye
- Approx Breaking Strength:
- 20,100 lbs
- Brand ID:
- BRYANT
- Cable Diameter Range:
- 2 in-2.49 in
- Cable Size:
- 2.00-2.49" (5.08-6.32)
- Carton Quantity:
- 5
- Catalog Number:
- SHC200DES
- Construction:
- Woven
- Description - Long:
- Wire and Cable Management, Support Grips, Heavy Duty, Double Eye, Stainless Steel, 2.00-2.49"
- Description - Short:
- Wire and Cable Management, Support Grips, Heavy Duty, Double Eye, Stainless Steel, 2.00-2.49"
- EU RoHS Indicator:
- Yes
- FV_Approx Breaking Strength:
- 20,100 lbs
- FV_Cable Diameter Range:
- 2 in-2.49 in
- Material:
- Stainless Steel
- Material - Mounting Hardware:
- Screw Hook or Beam Clamp
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- SHC200DES
- Series:
- Heavy Duty
- Type:
- Double Eye
- UPC:
- 781786007000
CGSR10
$60.75 /ea
Strain Relief Cord Connector Wire Mesh, Connector Type 90 Deg, Straight, Hub Size 3/4 Inch, 1 Inch, Material Stainless Steel, Application Strain Relief, Approval UL 514B, CSA C22.2, Overall Length 5.5 Inch, Weight 18.7 Lb per 100
CGSR11
$59.03 /ea
Strain Relief Cord Connector Wire Mesh, Connector Type 90 Deg, Straight, Hub Size 3/4 Inch, 1 Inch, Material Stainless Steel, Application Strain Relief, Approval UL 514B, CSA C22.2, Overall Length 6.38 Inch, Weight 18.7 Lb per 100
CGSR12
$59.03 /ea
Wire Mesh Strain Relief Cord Grip, Hub Size: 3/4 IN, 1 IN, Material: Stainless Steel Wire Mesh, Copperfree Aluminum Cap, Dimensions: 8.38 IN Length X 1.38 IN Width, Enclosure: NEMA 3R, Connection: Female Threaded X Mesh, Standard: UL 514B
| Attributed Data | Included |
|---|---|
| Material | Stainless Steel Wire Mesh, Copperfree Aluminum Cap Yes |
| Standard | UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III Yes |
| Type | Wire Mesh Strain Relief Cord Grip Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
CGSR10
Strain Relief Cord Connector Wire Mesh, Connector Type 90 Deg, Straight, Hub Size 3/4 Inch, 1 Inch, Material Stainless Steel, Application Strain Relief, Approval UL 514B, CSA C22.2, Overall Length 5.5 Inch, Weight 18.7 Lb per 100
$60.75 / EA
|
CGSR11
Strain Relief Cord Connector Wire Mesh, Connector Type 90 Deg, Straight, Hub Size 3/4 Inch, 1 Inch, Material Stainless Steel, Application Strain Relief, Approval UL 514B, CSA C22.2, Overall Length 6.38 Inch, Weight 18.7 Lb per 100
$59.03 / EA
|
CGSR12
Wire Mesh Strain Relief Cord Grip, Hub Size: 3/4 IN, 1 IN, Material: Stainless Steel Wire Mesh, Copperfree Aluminum Cap, Dimensions: 8.38 IN Length X 1.38 IN Width, Enclosure: NEMA 3R, Connection: Female Threaded X Mesh, Standard: UL 514B
$59.03 / EA
|
|
| Attributed Data | |||
| Hub Size | 0.75/1 in 0.75/1 in | ||
| Material | Stainless Steel Wire Mesh, Copperfree Aluminum Cap Stainless Steel Wire Mesh, Copperfree Aluminum Cap | ||
| Standard | UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III | ||
| Type | Wire Mesh Strain Relief Cord Grip Wire Mesh Strain Relief Cord Grip | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
