$10.08 / EA
manufacturer discounts
learn about discounts
- $9.07 for $300.00+
- $8.64 for $500.00+
- $8.28 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

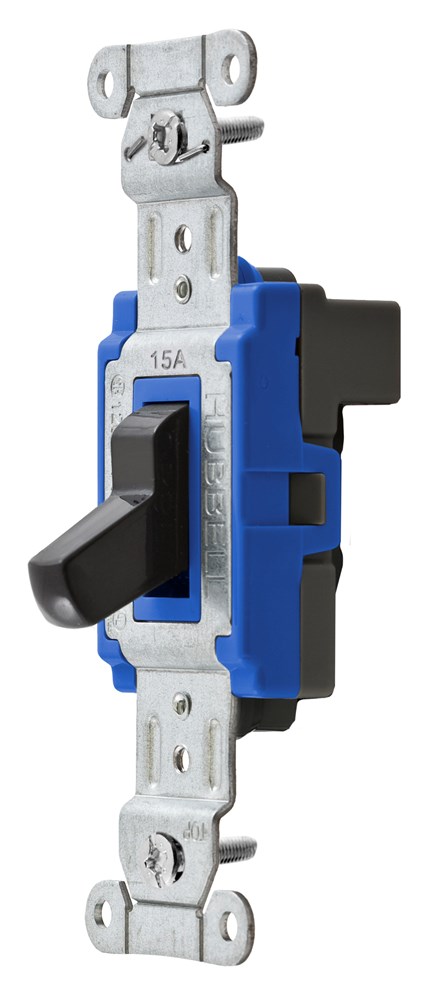

Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Single Pole, 15A 120/277V AC, Black Toggle, North American
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Single Pole, 15A 120/277V AC, Black Toggle, North American
150
- UPC
- 783585186047
- UNSPSC
- 39122211
- Country of Origin
- US
- Action:
- Positive Snap
- Amperage Rating:
- 15 A
- Color:
- Black
- Material:
- Thermoplastic
- Number Of Poles:
- 1
- Size:
- 4.18 in x 1.3 in x 1.74 in
- Type:
- Toggle
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 4,155 W
- Action:
- Positive Snap
- Actuator:
- Toggle
- Amperage Rating:
- 15 A
- Catalog Number:
- SNAP1201BKNA
- Color:
- Black
- Connection:
- Connectorized
- Contact Configuration:
- Two Position
- Contact Rating:
- Per UL 20
- Current / Amperage Rating:
- 15 A
- Current Rating:
- 15 A
- Description - Long:
- Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Single Pole, 15A 120/277V AC, Black Toggle, North American
- Description - Short:
- Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Single Pole, 15A 120/277V AC, Black Toggle, North American
- EU RoHS Indicator:
- No
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Steel, zinc plated bridge is corrosion resistant;Thread cleaning captive mounting screw;Automatic self-grounding staple assures continuity to wall box
- Insulation:
- None
- Item Type:
- Single Pole Toggle Switch
- Material:
- Thermoplastic
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Cycles:
- 50k
- Operating Temperature:
- Maximum continuous 75°C and minimum -40°C without Impact
- Product Name:
- SNAP1201BKNA
- Series:
- General Purpose
- Size:
- 4.18 in x 1.3 in x 1.74 in
- Standard:
- UL Listed
- Sub Brand:
- SNAPConnect Series
- Temperature Rise - Max.:
- 30°C maximum at rated current
- Type:
- Toggle
- UPC:
- 783585186047
- Voltage Rating:
- 120 to 277 VAC
- Voltage Rating Description:
- 120-277 VAC
- Wattage:
- 4,155 W
