SNAP8362S
SKU: SNAP8362S
MPN: SNAP8362S
Key specs
View all- Amperage Rating
- 20 A
- Color
- Blue
- Material
- Nylon
- Number Of Poles
- 2
- Size
- 3.31 in x 1.75 in x 1.52 in
- Type
- Surge Protection Receptacle
Description
Product overview

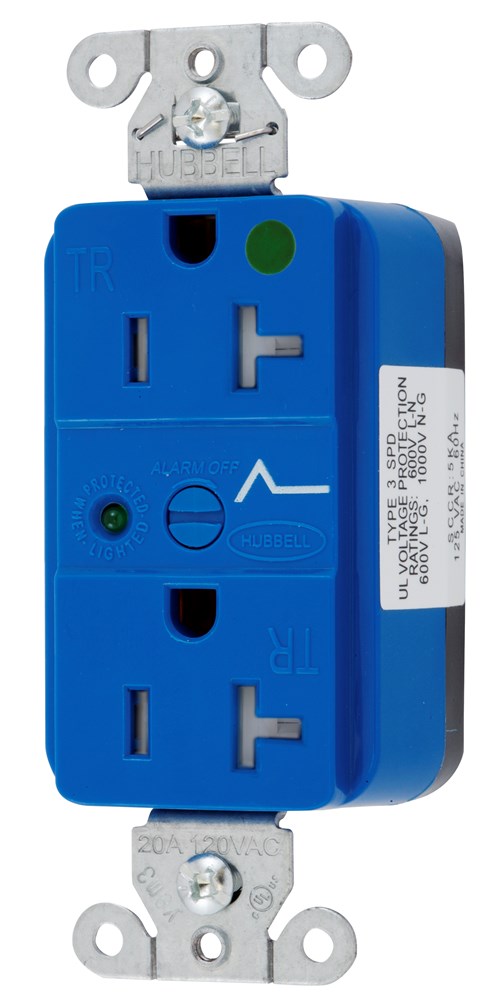

Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, SNAP-Connect, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Nylon, Blue
Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, SNAP-Connect, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Nylon, Blue
Manufacturer highlights
Additional manufacturer notes
- Short name
- HWDK
- Feed description
- HWDK SNAP8362S HG SNAP SPD RCPT, 20
- Invoice description
- HG SNAP SPD RCPT, 20A 125V, TR, BLUE
Specifications
- UPC
- 783585252179
- UNSPSC
- 39121406
- Country of Origin
- CN
- Amperage Rating
- 20 A
- Color
- Blue
- Material
- Nylon
- Number Of Poles
- 2
- Size
- 3.31 in x 1.75 in x 1.52 in
- Type
- Surge Protection Receptacle
- Voltage Rating
- 125 V
- Wattage
- 2,500 W
- Amperage Rating
- 20 A
- Catalog Number
- SNAP8362S
- Color
- Blue
- Connection
- Connectorized
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Long
- Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, SNAP-Connect, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Nylon, Blue
- Description - Short
- Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, SNAP-Connect, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Nylon, Blue
- Dielectric Strength
- Withstands 2,000V minimum
- EU RoHS Indicator
- No
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets
- Audible SNAP, indicates solid connection;Reduces installation time;Surge supression, Tamper Resistant, LED Indicator
- Horsepower - Maximum
- 1
- Item Type
- Smooth Face
- Material
- Nylon
- Material - Mounting Hardware
- Screw Mounting
- Mounting
- Screw Mount
- NEMA Rating
- 5-20R
- Number Of Poles
- 2
- Number Of Wires
- 3
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Phase
- 1
- Product Name
- SNAP8362S
- Series
- Hospital Grade
- Size
- 3.31 in x 1.75 in x 1.52 in
- Standard
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
- Sub Brand
- Straight Blade Devices
- Type
- Surge Protection Receptacle
- UPC
- 783585252179
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Wattage
- 2,500 W
- Wire Size
- #12 AWG
