$61.65 / EA
Local stock: 0
Lead time:
over 7 working days

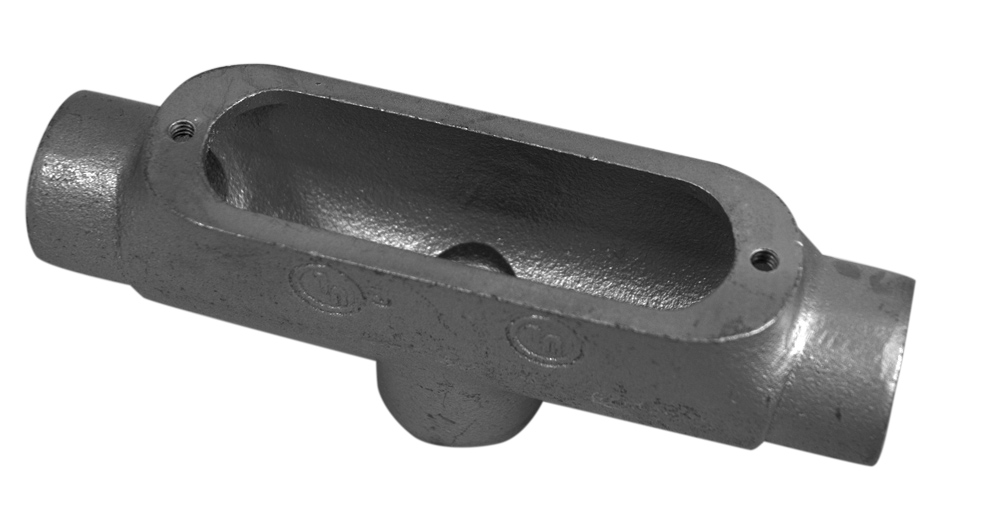

2" Malleable Iron Rigid Threaded Type TB Conduit Bodies
2" Malleable Iron Rigid Threaded Type TB Conduit Bodies
Topaz�s Malleable Iron Rigid Threaded type TB Conduit Body is constructed to offer unmatched high te...150
Topaz�s Malleable Iron Rigid Threaded type TB Conduit Body is constructed to offer unmatched high tensile strength and ductility. Strong and resilient malleable iron fabrication is resistant to damage from corrosion and impact. TB type conduit bodies allow inline access to the back left and rightRoomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Available in 1/2� to 2� sizes; UL listed.
- NPT tapered hubs
- NPT tapered hubs
- UPC
- 751338175501
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Type:
- TB Type Conduit Body
- Capacity:
- 75 CU.IN
- Connection:
- 2 FNPT IN
- Connectors (IN):
- 2 FNPT IN
- Finish:
- Zinc Plated
- Form:
- TB
- Height:
- 3.8125 in
- Height (IN):
- 3-13/16 IN
- Hub Size:
- 2 in
- Label Description:
- RIGID CONDUIT BODY- TB TYPE
- Length:
- 11-13/16 in
- Material:
- Malleable Iron
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 8.528
- Number of Conductors:
- 3
- Size (IN):
- 2" IN
- Size (trade) (IN):
- 2" IN
- Standard:
- UL E195124, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Threaded hub (IN):
- 2 IN
- Type:
- TB Type Conduit Body
- WebShop Width (IN):
- 4-1/8 IN
- Width:
- 4.125 in
- Wire Size:
- 3
Recently Viewed
-
-
2181-61
LIVEX LIGHTING, INC.
Unfortunately, we do not have a description available for 2181-61. Please call (800) 462-7733...
See more details -
-
RM2U18BKSP
HAMMOND POWER SOLUTIONS INC /IMARK GROUP
Unfortunately, we do not have a description available for RM2U18BKSP. Please call (800) 462-7733 See more details
-

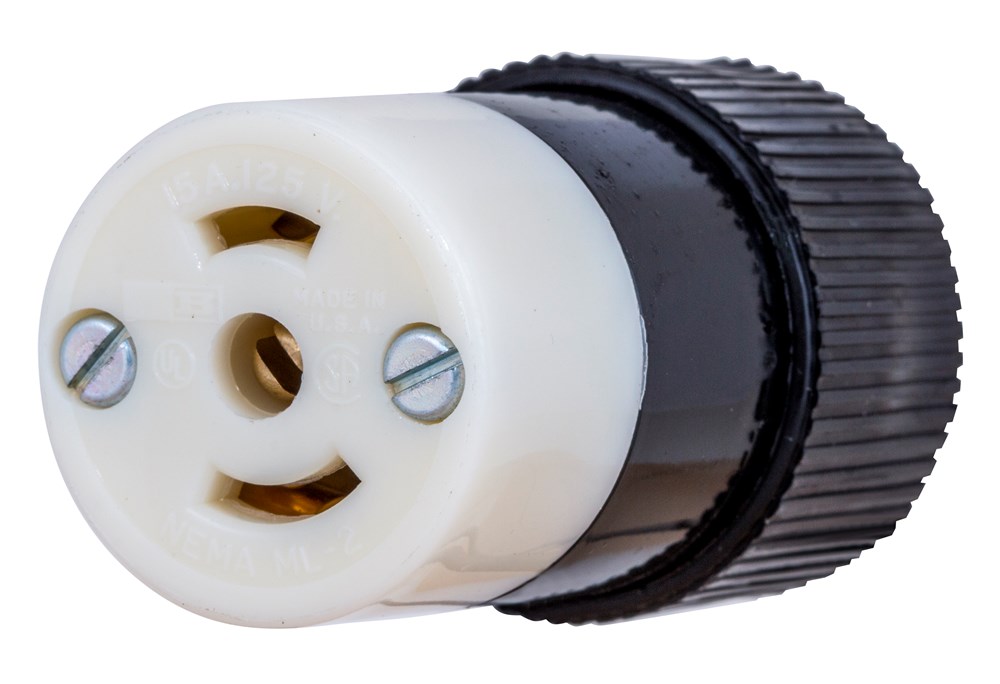

7593NC
