$43.58 / EA
Local stock: 0
Lead time:
over 7 working days

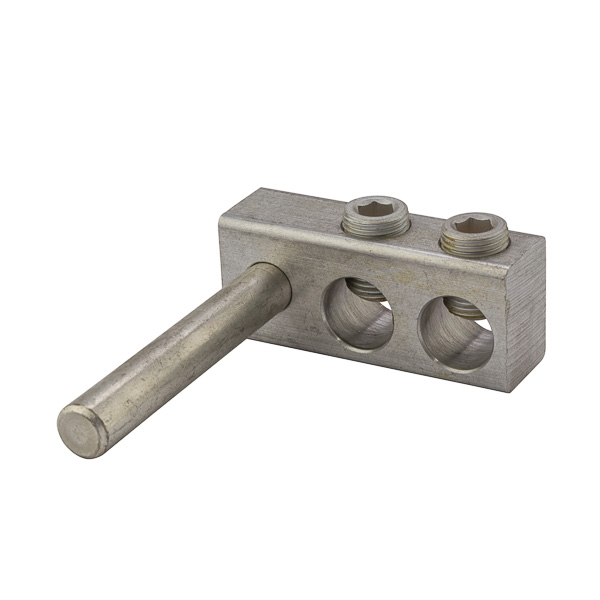

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 1/2" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temp...
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 1/2" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
150
- UPC
- 662381023636
- Color:
- Silver
- Material:
- Aluminum
- Number Of Poles:
- 1
- Voltage Rating:
- 600 V
- Color:
- Silver
- Environmental Conditions:
- 90 C
- Finish:
- Aluminum
- Material:
- Aluminum
- Number Of Poles:
- 1
- Sub Brand:
- Utilities
- Temperature Rating:
- 90 C
- Voltage Rating:
- 600 V
