TSR1220

SKU: TSR1220

MPN: TSR1220

Key specs

View all
Material
Steel
Type
Telescoping Support Brackets

Description

Product overview

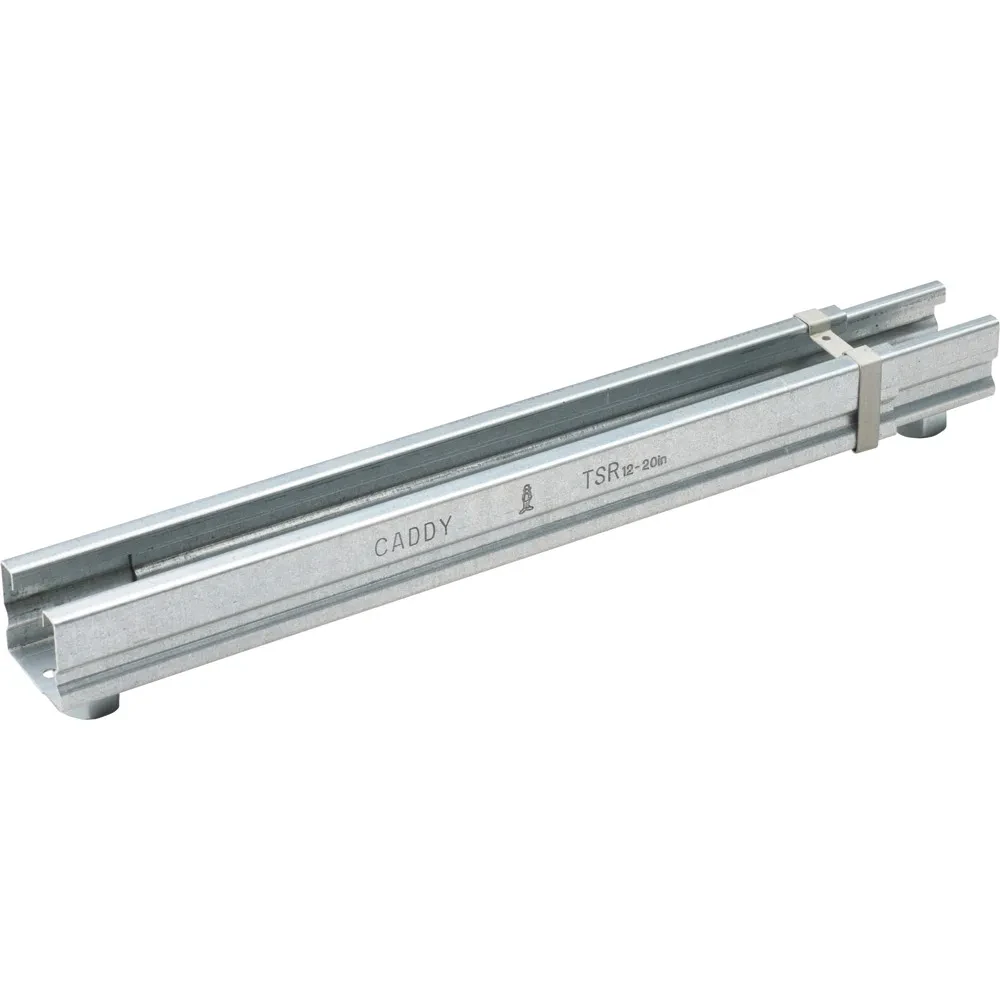

Telescoping Strut Replacement, 3/8" Rod

Telescoping Strut Replacement, 3/8" Rod

Manufacturer highlights

  • Captive threaded nuts enable fastening to threaded rod supports without loose parts
  • Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
  • Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
  • Integrated ruler displays space between hanger rods in inches and centimeters
  • Supports up to seven 2" (50 DN) conduits, six 2" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18 (450 mm) cable tray
  • Conduit can be supported on the top and bottom, eliminating the need for double sided strut
  • Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation

Additional manufacturer notes

Short description
Trapeze Bracket Assembly, 3/8"
Feed description
NVENT EFS TSR1220 Trapeze Bracket A
Label description
Trapeze Bracket Assembly, 3/8" Nut

Specifications

UPC
782856916437
UNSPSC
30101804
Country of Origin
US
Material
Steel
Type
Telescoping Support Brackets
Depth
1 3/8"
Finish
Galvanized
Gauge
0.04 in
Length
21.5 in
Material
Steel
Rod Size (Imperial)
3/8 in
Slot Size
7/8 in
Sub Brand
CADDY
Type
Telescoping Support Brackets
Width
1.625 in
Manufacturer keywords
adjustable strut, retrofit strut, strut channel, trapeze

Rate this product

Do you have a question about TSR1220?

Videos & documents

TSR1220

$14.39 / EA
