TSR1220N
SKU: TSR1220N
MPN: TSR1220N
Key specs
View all- Material
- Steel
- Type
- Telescoping Support Brackets
Description
Product overview

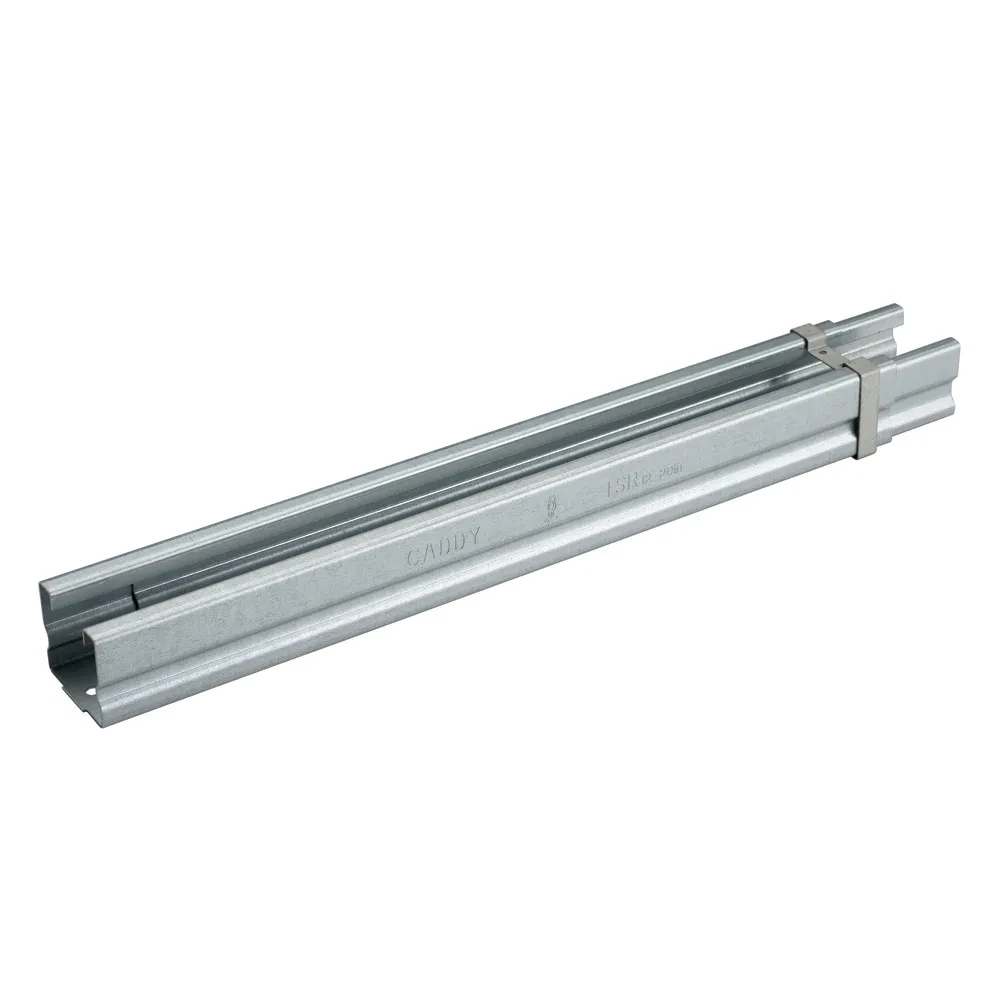

Telescoping Strut Replacement, No Nut
Telescoping Strut Replacement, No Nut
Manufacturer highlights
- Can be attached directly to a wall for wall-mounted applications?
- Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
- Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
- Integrated ruler displays space between hanger rods in inches and centimeters
- Supports up to seven 2" (50 DN) conduits, six 2" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18' (450 mm) cable tray
- Conduit can be supported on the top and bottom, eliminating the need for double sided strut
- Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation
Additional manufacturer notes
- Short description
- Trapeze Bracket Assembly, No N
- Short name
- EFS
- Feed description
- NVENT EFS TSR1220N Trapeze Bracket
- Label description
- Trapeze Bracket Assembly, No Nut, 1/2" hole
- Invoice description
- Trapeze Bracket Assembly, No Nut, 1/2" h
Specifications
- UPC
- 782856916451
- UNSPSC
- 30101804
- Country of Origin
- US
- Material
- Steel
- Type
- Telescoping Support Brackets
- Depth
- 1 3/8"
- Finish
- Galvanized
- Gauge
- 0.04 in
- Length
- 21.5 in
- Material
- Steel
- Slot Size
- 7/8 in
- Sub Brand
- CADDY
- Type
- Telescoping Support Brackets
- Width
- 1.625 in
- Manufacturer keywords
- adjustable, strut channel, telescoping
