TSR1220R

SKU: TSR1220R

MPN: TSR1220R

Key specs

View all
Material
Steel
Type
Telescoping Support Brackets

Description

Product overview

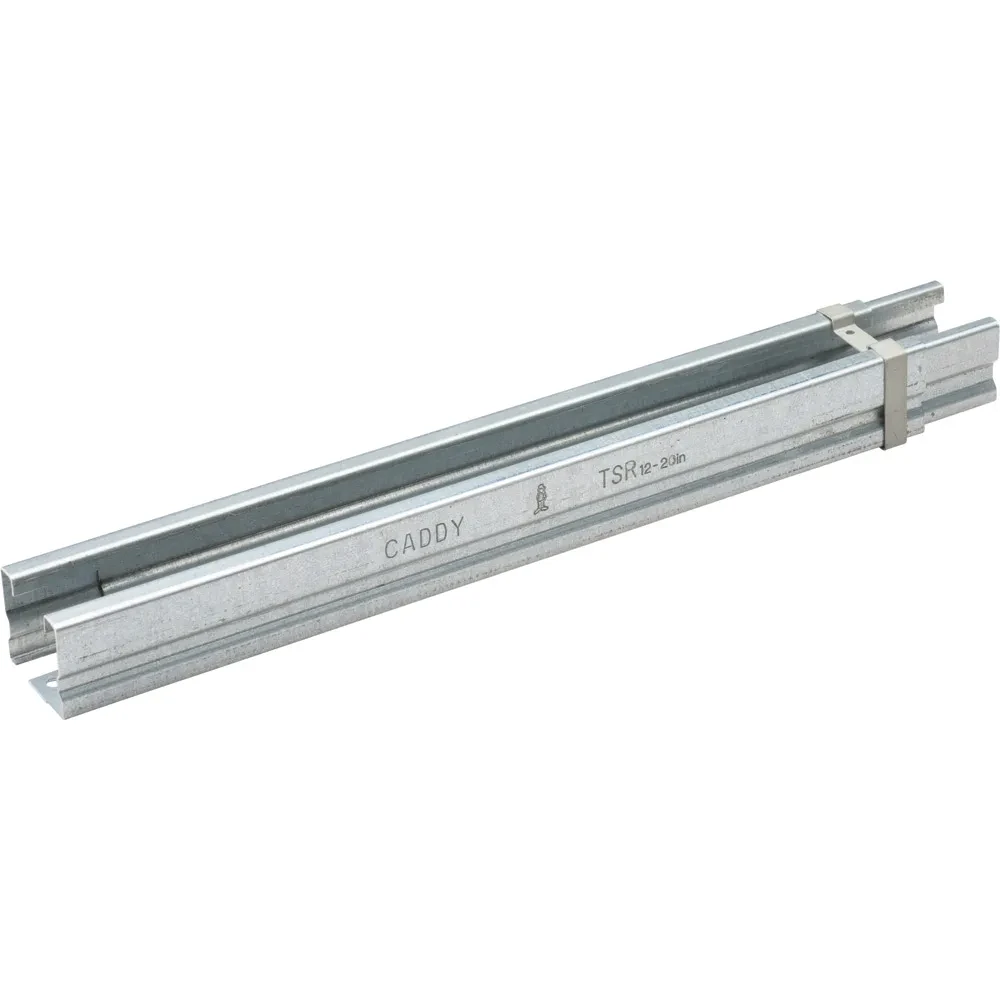

Telescoping Strut Replacement, Retrofit, 3/8" Rod

Telescoping Strut Replacement, Retrofit, 3/8" Rod

Manufacturer highlights

  • Slotted ends allow the bracket to be installed with four nVent CADDY SN Nuts on threaded rod above an existing trapeze, saving contractor time and limiting building downtime?
  • Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
  • Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
  • Integrated ruler displays space between hanger rods in inches and centimeters
  • Supports up to seven 2" (50 DN) conduits, six 2" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18 (450 mm) cable tray
  • Conduit can be supported on the top and bottom, eliminating the need for double sided strut
  • Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation

Additional manufacturer notes

Short description
Trapeze Bracket Assembly, No N
Feed description
NVENT EFS TSR1220R Trapeze Bracket
Label description
Trapeze Bracket Assembly, No Nut, Retrofit Slot
Invoice description
Trapeze Bracket Assembly, No Nut, Retrof

Specifications

UPC
782856916468
UNSPSC
30101804
Country of Origin
US
Material
Steel
Type
Telescoping Support Brackets
Depth
1 3/8"
Finish
Galvanized
Gauge
0.04 in
Length
21.5 in
Material
Steel
Rod Size (Imperial)
3/8 in
Slot Size
7/8 in
Sub Brand
CADDY
Type
Telescoping Support Brackets
Width
1.625 in
Manufacturer keywords
adjustable strut, retrofit strut, strut channel, trapeze

Rate this product

Do you have a question about TSR1220R?

Videos & documents

TSR1220R

$11.64 / EA
