U004CTL010
SKU: U004CTL010
MPN: U004CTL010
Key specs
View all- Amperage Rating
- 100 AMP
- Type
- Unmetered Power Outlet
- Voltage Rating
- 120/240 V
Description
Product overview

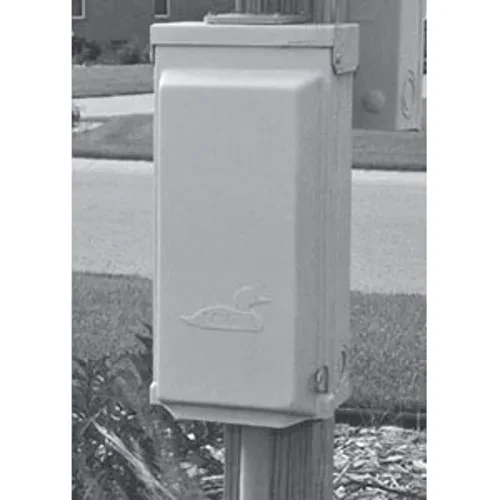

Midwest Electric’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weathe...
Midwest Electric’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.
Manufacturer highlights
Additional manufacturer notes
- Short name
- MIIDWEST
- Feed description
- MIDWEST U004CTL010 120A SURFACE UNM
- Invoice description
- 120A SURFACE UNMTRD 50/50/20GFCI
Specifications
- UPC
- 784567207002
- UNSPSC
- 39121102
- Country of Origin
- UKN
- Amperage Rating
- 100 AMP
- Type
- Unmetered Power Outlet
- Voltage Rating
- 120/240 V
- Amperage Rating
- 100 AMP
- Cable Entry
- Knockout Code (B): 1, 1-1/4, 1-1/2 IN; Knockout Code (D): 3/4, 1, 1-1/4 IN; Knockout Code (G): 1/2, 3/4, 1 IN
- Cutout Size
- 9 X 17
- Mounting
- Surface
- Phase
- 1 PH
- Standard
- UL/CUL Listed
- Type
- Unmetered Power Outlet
- Voltage Rating
- 120/240 V
