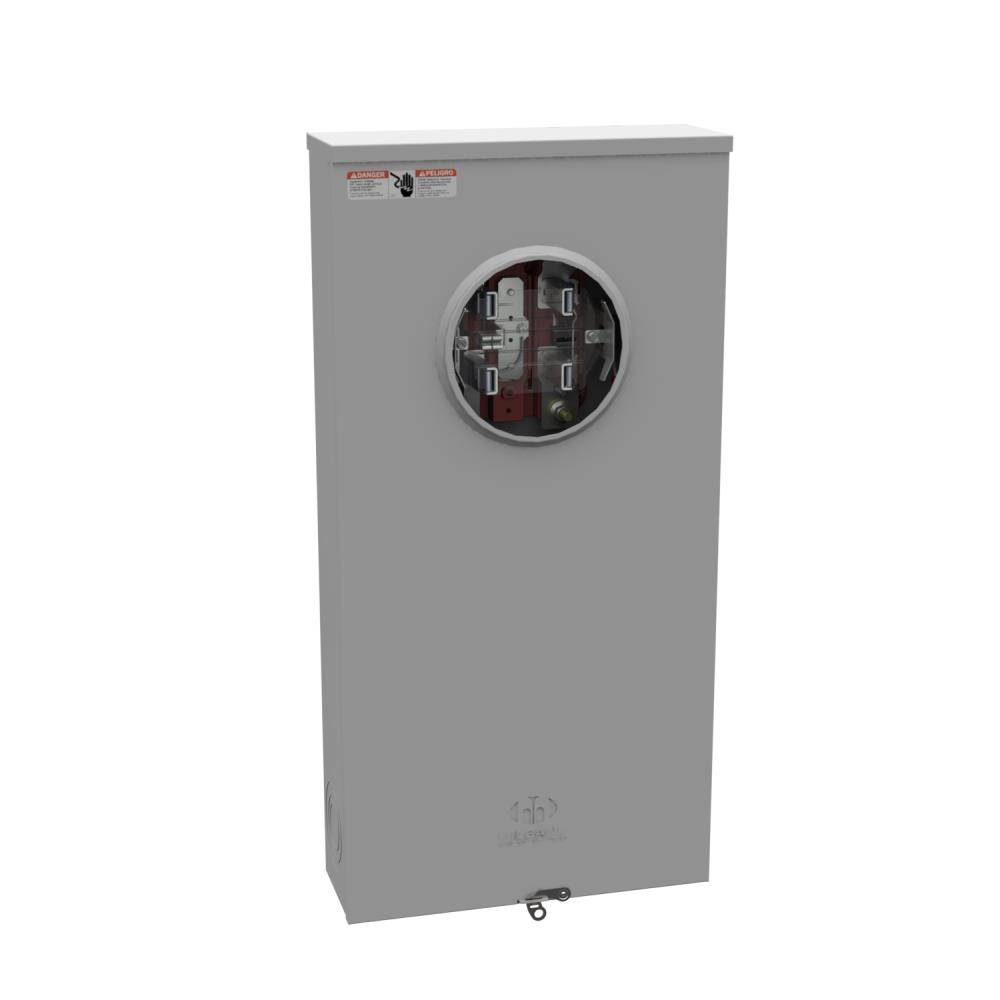

Milbank Manufacturing Co. U1129-O-5T9 Meter Centers Or Sockets product image

Milbank Manufacturing Co. U1129-O-5T9 Meter Centers Or Sockets product image view 2

Milbank Manufacturing Co. U1129-O-5T9 Meter Centers Or Sockets product image view 3

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Warranty Url Warranty Spec Sheet

U1129-O-5T9

SKU: U1129-O-5T9

MPN: U1129-O-5T9

Purchase options

$561.57 / EA

manufacturer discounts
learn about discounts

$484.11 for $1,750.00+
$464.75 for $2,500.00+
$449.26 for $3,500.00+

Available to order

Lead time: 1-2 working days

Lead time: 1-2 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 320 A
Size: 4.875L x 15W x 30H
Type: Ringless Meter Socket
Voltage Rating: 600 VAC

Description

Product overview

4 TERM RNGLS PLAIN TOP LVR BYPS 5TH TERM 9 OCLOCK POS

Manufacturer highlights

Additional manufacturer notes

Short name: MILB
Feed description: MILB U1129-O-5T9 320A 5T RL STUD HD
Invoice description: 320A 5T RL STUD HD LVR UG 28723

Specifications

UPC: 784572287235

UNSPSC: 39121102

Country of Origin: USA

Amperage Rating: 320 A

Size: 4.875L x 15W x 30H

Type: Ringless Meter Socket

Voltage Rating: 600 VAC

Amperage Rating: 320 A

Bypass Type: Lever Bypass

Cable Entry: Underground

Cutout Size: No Main Breaker

Enclosure: G90 Galvanized Steel with Powder Coat Finish

Equipment Ground: 3 Barrel Ground Lug

Frequency Rating: 60 Hz

Hub Opening: Plain Top

Insulation: Glass Polyester

Jaw Quantity: 5 Terminal

Mounting: Surface Mount

Number of Meter Positions: 1 Position

Phase: 1

Size: 4.875L x 15W x 30H

Standard: UL Listed;Type 3R

Terminal: 3/8 Inch Stud

Type: Ringless Meter Socket

Voltage Rating: 600 VAC

Do you have a question about U1129-O-5T9?

Videos & documents

Documents

Warranty Url Warranty Spec Sheet

Similar items

Compare alternates in this category before ordering.

4 TERM RNGLS 2 SML CLS PLTS 1-200 AMP MN BRKR 8 BRANCH CKT HRN BYPS

Similar item

U5168-XTL-200-KK

4 TERM RNGLS 2 SML CLS PLTS 1-200 AMP MN BRKR 8 BRANCH CKT HRN BYPS

$405.26 / EA

106 available

View details

Similar item

U9090-O

4 TERM RNGLS PLAIN TOP STUD TYPE

$125.73 / EA

77 available

View details

4 TERM RNGLS 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT HRN BYPS

Similar item

U5168-XTL-100-KK

4 TERM RNGLS 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT HRN BYPS

$344.22 / EA

8 available

View details

No image currently available

Similar item

H9747-1112

LG ACC COVERPLATE ADAPTER ALUM W/O HDWR

$14.35 / EA

4 available

View details

4 TERM RNGLS LRG HUB OPEN HRN BYPS 2 POS ROCHESTER GAS AND ELECTRIC

Similar item

U1252-R-KK-RGE

4 TERM RNGLS LRG HUB OPEN HRN BYPS 2 POS ROCHESTER GAS AND ELECTRIC

$377.88 / EA

7 available

View details

4 TERM RNGLS LRG CLS PLT LVR BYPS ROCHESTER GAS AND ELECTRIC

Similar item

U2448-X-RGE

4 TERM RNGLS LRG CLS PLT LVR BYPS ROCHESTER GAS AND ELECTRIC

$528.93 / EA

4 available

View details

Specification comparison

Scan the attributes that differ across these alternatives.

U5168-XTL-200-KK View key specs

SKU: U5168-XTL-200-KK
Price: $405.26 / EA
Availability: 106 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: Horn Bypass
Cable Entry: Overhead or Underground
Cutout Size: One 200 Ampere Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Bar

View full product details

U9090-O View key specs

SKU: U9090-O
Price: $125.73 / EA
Availability: 77 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: No Bypass
Cable Entry: Underground
Cutout Size: No Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Lug

View full product details

U5168-XTL-100-KK View key specs

SKU: U5168-XTL-100-KK
Price: $344.22 / EA
Availability: 8 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: Horn Bypass
Cable Entry: Overhead or Underground
Cutout Size: One 100 Ampere Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Bar

View full product details

H9747-1112 View key specs

SKU: H9747-1112
Price: $14.35 / EA
Availability: 4 available
Amperage Rating: —
Bypass Type: —
Cable Entry: —
Cutout Size: —
Enclosure: ALUMINUM
Equipment Ground: —

View full product details

U1252-R-KK-RGE View key specs

SKU: U1252-R-KK-RGE
Price: $377.88 / EA
Availability: 7 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: Horn Bypass
Cable Entry: Overhead or Underground with Center Wireway
Cutout Size: No Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Lug

View full product details

U2448-X-RGE View key specs

SKU: U2448-X-RGE
Price: $528.93 / EA
Availability: 4 available
Amperage Rating: 320 A
Bypass Type: Lever Bypass
Cable Entry: Overhead or Underground
Cutout Size: No Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Lug

View full product details

Attribute	U5168-XTL-200-KK 4 TERM RNGLS 2 SML CLS PLTS 1-200 AMP MN BRKR 8 BRANCH CKT HRN BYPS	U9090-O 4 TERM RNGLS PLAIN TOP STUD TYPE	U5168-XTL-100-KK 4 TERM RNGLS 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT HRN BYPS	H9747-1112 LG ACC COVERPLATE ADAPTER ALUM W/O HDWR	U1252-R-KK-RGE 4 TERM RNGLS LRG HUB OPEN HRN BYPS 2 POS ROCHESTER GAS AND ELECTRIC	U2448-X-RGE 4 TERM RNGLS LRG CLS PLT LVR BYPS ROCHESTER GAS AND ELECTRIC
Price	$405.26 / EA	$125.73 / EA	$344.22 / EA	$14.35 / EA	$377.88 / EA	$528.93 / EA
Availability	106 available	77 available	8 available	4 available	7 available	4 available
Amperage Rating	200 Continuous Ampere	200 Continuous Ampere	200 Continuous Ampere	—	200 Continuous Ampere	320 A
Bypass Type	Horn Bypass	No Bypass	Horn Bypass	—	Horn Bypass	Lever Bypass
Cable Entry	Overhead or Underground	Underground	Overhead or Underground	—	Overhead or Underground with Center Wireway	Overhead or Underground
Cutout Size	One 200 Ampere Main Breaker	No Main Breaker	One 100 Ampere Main Breaker	—	No Main Breaker	No Main Breaker
Enclosure	G90 Galvanized Steel with Powder Coat Finish	G90 Galvanized Steel with Powder Coat Finish	G90 Galvanized Steel with Powder Coat Finish	ALUMINUM	G90 Galvanized Steel with Powder Coat Finish	G90 Galvanized Steel with Powder Coat Finish
Equipment Ground	Ground Bar	Ground Lug	Ground Bar	—	Ground Lug	Ground Lug
Frequency Rating	60 Hz	60 Hz	60 Hz	—	60 Hz	60 Hz
Hub Opening	Twin Small Closing Plates	Plain Top	Twin Small Closing Plates	—	Large Hub Opening	Large Closing Plate
Insulation	Glass Polyester	Glass Polyester	Glass Polyester	—	Glass Polyester	Glass Polyester
Jaw Quantity	4 Terminal	4 Terminal	4 Terminal	—	4 Terminal	4 Terminal
Line Side Wire Range	6 AWG - 350 kcmil	—	6 AWG - 350 kcmil	—	—	—
Load Side Wire Range	6 AWG - 350 kcmil	6 AWG - 350 kcmil	6 AWG - 350 kcmil	—	6 AWG - 350 kcmil	—
Mounting	Surface Mount	Surface Mount	Surface Mount	SURFACEMOUNTING	Surface Mount	Surface Mount
Number Branch Circuits	8	—	8	—	—	—
Number Of Cutouts	1	—	1	—	—	—
Number of Meter Positions	1 Position	1 Position	1 Position	—	2 Positions	1 Position
Phase	1	1	1	—	1	1
Size	4.5L x 14.125W x 30H	4.5L x 9W x 20.75H	4.5L x 14.125W x 30H	—	5.125L x 26.5W x 14H	6.5L x 17.75W x 34.125H
Standard	UL Listed;Type 3R	UL Listed;Type 3R	UL Listed;Type 3R	UL	UL Listed;Type 3R	UL Listed;Type 3R
Terminal	Lay in	Lay in	Lay in	—	3/8 Inch Stud	3/8 Inch Stud
Type	Ringless Meter Socket	Ringless Meter Socket	Ringless Meter Socket	—	Ringless Meter Socket	Ringless Meter Socket
Voltage Rating	240 VAC	600 VAC	240 VAC	—	300 VAC	600 VAC
