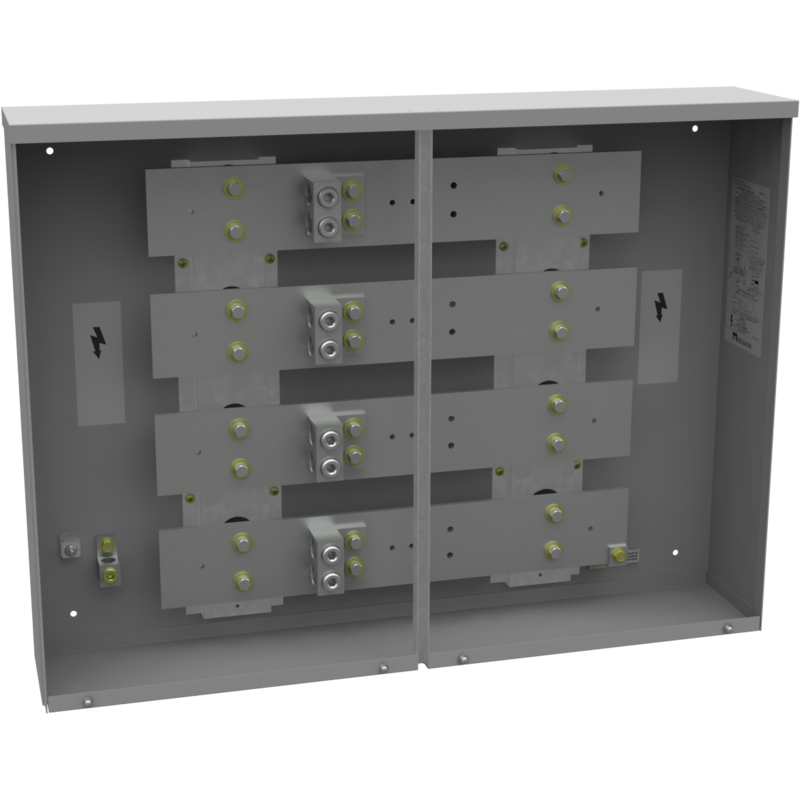

Milbank Manufacturing Co. U3463-O Bus Conductors product image

Milbank Manufacturing Co. U3463-O Bus Conductors product image view 2

Milbank Manufacturing Co. U3463-O Bus Conductors product image view 3

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Warranty Url Warranty Spec Sheet

U3463-O

SKU: U3463-O

MPN: U3463-O

Purchase options

$2,291.13 / EA

manufacturer discounts
learn about discounts

$1,975.11 for $1,750.00+
$1,896.11 for $2,500.00+
$1,832.90 for $3,500.00+

Available to order

Lead time: 1-2 working days

Lead time: 1-2 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Hill Electric Supply

Established 1948

Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 600 A
Color: Gray
Size: 6.5L x 36W x 26.75H
Type: Line to Load Distribution
Voltage Rating: 600 VAC

Description

Product overview

600 AMP 3 PH 600 VOLT 36IN-26IN-6IN PNTD STL LIFT OFF SCR FRONTS 2 LUGS PER LND - 4-600kcmil 50K AIC

Manufacturer highlights

Additional manufacturer notes

Feed description: MILB U3463-O 600A 3PH 3P BUS GUTTER
Invoice description: 600A 3PH 3P BUS GUTTER 13806

Specifications

UPC: 784572138063

UNSPSC: 26121541

Country of Origin: USA

Amperage Rating: 600 A

Color: Gray

Size: 6.5L x 36W x 26.75H

Type: Line to Load Distribution

Voltage Rating: 600 VAC

Amperage Rating: 600 A

Color: Gray

Conductor Material: Copper and Aluminum

Connection: 4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes

Construction: G90 Galvanized Steel

Finish: Powder Coat

Insulation Material: Polypropylene

Jacket Material: No Jacket Material

Length: 6.5

Miscellaneous: No Knockouts

Number Of Conductors: 2

Number of Phases: 3

Number of Positions: 3 Positions

Short Circuit Rating: 50000 Ampere

Size: 6.5L x 36W x 26.75H

Standard: UL Listed;Type 3R

Temperature Rating: No Temperature Rating

Type: Line to Load Distribution

Voltage Rating: 600 VAC

Do you have a question about U3463-O?

Videos & documents

Documents

Warranty Url Warranty Spec Sheet

Similar items

Compare alternates in this category before ordering.

400 AMP 1PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10K SCCR

Similar item

U4548-RXL

400 AMP 1PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10K SCCR

$981.39 / EA

Available to order

View details

400 AMP 3PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10K SCCR

Similar item

U4549-RXL

400 AMP 3PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10K SCCR

$1,188.06 / EA

Available to order

View details

Similar item

U3412-O

400A 1PH 2P BUS GUTTER

$1,241.14 / EA

Available to order

View details

600 AMP 1PH 600 VOLT 36IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 2 LUGS PER LND - 4-600 kcmil 50 AIC 3 POS

Similar item

U3413-O

600 AMP 1PH 600 VOLT 36IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 2 LUGS PER LND - 4-600 kcmil 50 AIC 3 POS

$1,634.57 / EA

Available to order

View details

800 AMP 1PH 600 VOLT 48IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER LND - 4-600 kcmil 65 AIC 4 POS

Similar item

U3414-O

800 AMP 1PH 600 VOLT 48IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER LND - 4-600 kcmil 65 AIC 4 POS

$1,978.19 / EA

Available to order

View details

800 AMP 1PH 600 VOLT 72IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER LND - 4-600 kcmil 65 AIC 6 POS

Similar item

U3416-O

800 AMP 1PH 600 VOLT 72IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER LND - 4-600 kcmil 65 AIC 6 POS

$4,501.61 / EA

Available to order

View details

Specification comparison

Scan the attributes that differ across these alternatives.

U4548-RXL View key specs

SKU: U4548-RXL
Price: $981.39 / EA
Availability: Available to order
Amperage Rating: 400 A
Color: Gray
Conductor Material: Copper and Aluminum
Connection: 4 AWG to 600 kcmil and 6 AWG to 350 kcmil and 4 AWG to 600 kcmil and Line and Load Side Lugs
Construction: G90 Galvanized Steel
Finish: Powder Coat

View full product details

U4549-RXL View key specs

SKU: U4549-RXL
Price: $1,188.06 / EA
Availability: Available to order
Amperage Rating: 400 A
Color: Gray
Conductor Material: Copper and Aluminum
Connection: 4 AWG to 600 kcmil and 6 AWG to 350 kcmil and 4 AWG to 600 kcmil and Line and Load Side Lugs
Construction: G90 Galvanized Steel
Finish: Powder Coat

View full product details

U3412-O View key specs

SKU: U3412-O
Price: $1,241.14 / EA
Availability: Available to order
Amperage Rating: 400 A
Color: Gray
Conductor Material: Copper and Aluminum
Connection: 4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes
Construction: G90 Galvanized Steel
Finish: Powder Coat

View full product details

U3413-O View key specs

SKU: U3413-O
Price: $1,634.57 / EA
Availability: Available to order
Amperage Rating: 600 A
Color: Gray
Conductor Material: Copper and Aluminum
Connection: 4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes
Construction: G90 Galvanized Steel
Finish: Powder Coat

View full product details

U3414-O View key specs

SKU: U3414-O
Price: $1,978.19 / EA
Availability: Available to order
Amperage Rating: 800 A
Color: Gray
Conductor Material: Copper and Aluminum
Connection: 4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes
Construction: G90 Galvanized Steel
Finish: Powder Coat

View full product details

U3416-O View key specs

SKU: U3416-O
Price: $4,501.61 / EA
Availability: Available to order
Amperage Rating: 800 A
Color: Gray
Conductor Material: Copper and Aluminum
Connection: 4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes
Construction: G90 Galvanized Steel
Finish: Powder Coat

View full product details

Attribute	U4548-RXL 400 AMP 1PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10...	U4549-RXL 400 AMP 3PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10...	U3412-O 400A 1PH 2P BUS GUTTER	U3413-O 600 AMP 1PH 600 VOLT 36IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 2 LUGS PER...	U3414-O 800 AMP 1PH 600 VOLT 48IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER...	U3416-O 800 AMP 1PH 600 VOLT 72IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER...
Price	$981.39 / EA	$1,188.06 / EA	$1,241.14 / EA	$1,634.57 / EA	$1,978.19 / EA	$4,501.61 / EA
Availability	Available to order	Available to order	Available to order	Available to order	Available to order	Available to order
Amperage Rating	400 A	400 A	400 A	600 A	800 A	800 A
Color	Gray	Gray	Gray	Gray	Gray	Gray
Conductor Material	Copper and Aluminum	Copper and Aluminum	Copper and Aluminum	Copper and Aluminum	Copper and Aluminum	Copper and Aluminum
Connection	4 AWG to 600 kcmil and 6 AWG to 350 kcmil and 4 AWG to 600 kcmil and Line and Load Side Lugs	4 AWG to 600 kcmil and 6 AWG to 350 kcmil and 4 AWG to 600 kcmil and Line and Load Side Lugs	4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes	4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes	4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes	4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes
Construction	G90 Galvanized Steel	G90 Galvanized Steel	G90 Galvanized Steel	G90 Galvanized Steel	G90 Galvanized Steel	G90 Galvanized Steel
Finish	Powder Coat	Powder Coat	Powder Coat	Powder Coat	Powder Coat	Powder Coat
Insulation Material	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Jacket Material	No Jacket Material	No Jacket Material	No Jacket Material	No Jacket Material	No Jacket Material	No Jacket Material
Length	5	5	6.5	6.5	6.5	6.5
Miscellaneous	—	—	No Knockouts	No Knockouts	No Knockouts	No Knockouts
Number Of Conductors	5	5	1	2	3	3
Number of Phases	1	3	1	1	1	1
Number of Positions	1 Position	1 Position	2 Positions	3 Positions	4 Positions	6 Positions
Short Circuit Rating	10000 Ampere	10000 Ampere	50000 Ampere	50000 Ampere	65000 Ampere	65000 Ampere
Size	5L x 15.5W x 27H	5L x 15.5W x 27H	6.5L x 24W x 26.75H	6.5L x 36W x 26.75H	6.5L x 48W x 26.75H	6.5L x 72W x 26.75H
Standard	UL Listed;Type 3R	UL Listed;Type 3R	UL Listed;Type 3R	UL Listed;Type 3R	UL Listed;Type 3R	UL Listed;Type 3R
Temperature Rating	No Temperature Rating	No Temperature Rating	No Temperature Rating	No Temperature Rating	No Temperature Rating	No Temperature Rating
Type	Line to Load Distribution	Line to Load Distribution	Line to Load Distribution	Line to Load Distribution	Line to Load Distribution	Line to Load Distribution
Voltage Rating	600 VAC	600 VAC	600 VAC	600 VAC	600 VAC	600 VAC
