Milbank Manufacturing Co. U5000-XL-332 Meter Centers Or Sockets product image

Milbank Manufacturing Co. U5000-XL-332 Meter Centers Or Sockets product image view 2

Milbank Manufacturing Co. U5000-XL-332 Meter Centers Or Sockets product image view 3

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Warranty Url

U5000-XL-332

SKU: U5000-XL-332

MPN: U5000-XL-332

Purchase options

$379.29 / EA

manufacturer discounts
learn about discounts

$326.97 for $1,750.00+
$313.90 for $2,500.00+
$303.43 for $3,500.00+

Available to order

Local stock: 0
Lead time: 1-2 working days

Lead time: 1-2 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Amperage Rating: 125 Continuous Ampere
Size: 5.188L x 8.875W x 19.25H
Type: Unmetered Power Supply
Voltage Rating: 240 VAC

Description

Product overview

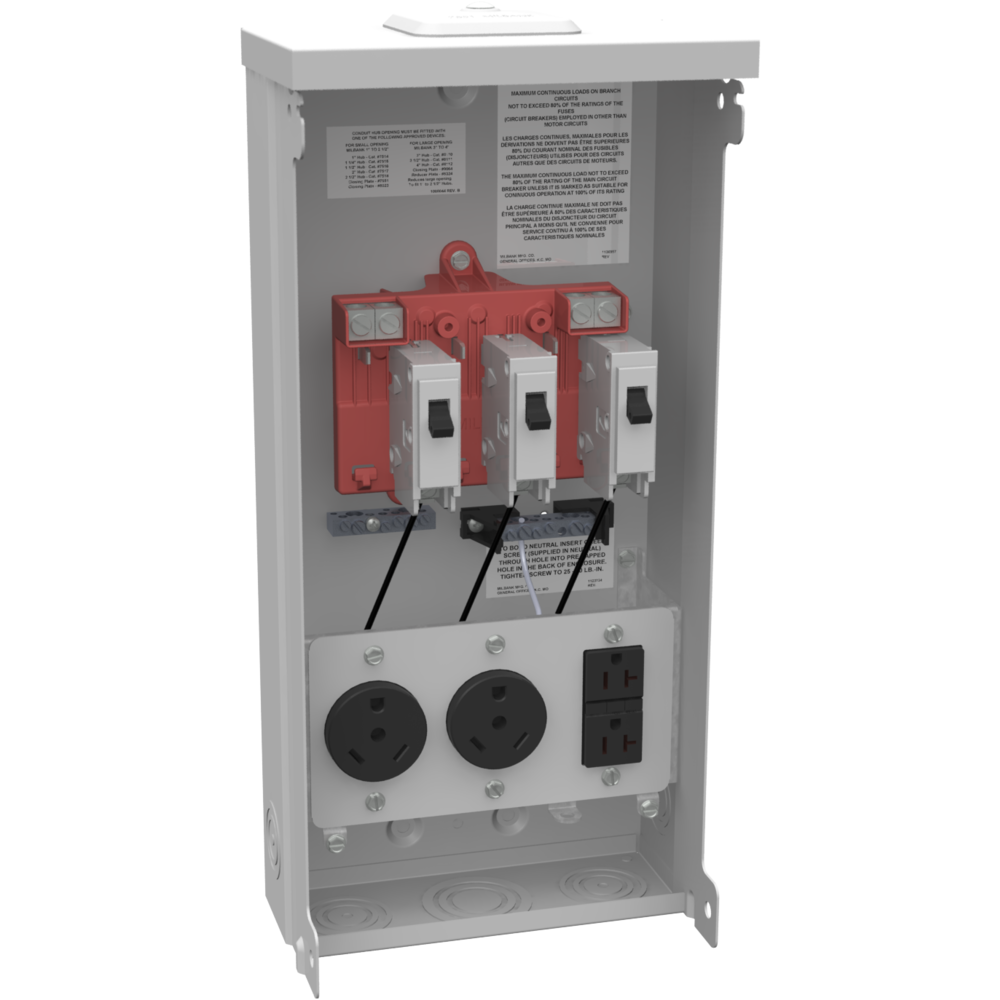

UNMTR SML CLS PLT TT30 TT30 520GR SURF MNT

Manufacturer highlights

Additional manufacturer notes

Short name: MILB
Feed description: MILB U5000-XL-332 125A UNMET P/O 26
Invoice description: 125A UNMET P/O 26552

Specifications

UPC: 784572265523

UNSPSC: 39121102

Country of Origin: USA

Amperage Rating: 125 Continuous Ampere

Size: 5.188L x 8.875W x 19.25H

Type: Unmetered Power Supply

Voltage Rating: 240 VAC

Amperage Rating: 125 Continuous Ampere

Bypass Type: No Bypass

Cable Entry: Overhead or Underground

Cutout Size: Two Single Pole 30 Ampere Breakers and One Single Pole 20 Ampere Breaker

Enclosure: G90 Galvanized Steel with Powder Coat Finish

Equipment Ground: Ground Bar

Frequency Rating: 60 Hz

Hub Opening: Small Closing Plate

Insulation: Glass Polyester

Jaw Quantity: 0 Terminals

Line Side Wire Range: 14 - 2/0 AWG

Mounting: Surface Mount

Number Branch Circuits: 3

Number Of Cutouts: 3

Number Of Receptacles: 3

Number of Meter Positions: Single Power Head

Phase: 1

Receptacle Configuration: Two NEMA TT30 and One NEMA 5-20 Ground Fault

Size: 5.188L x 8.875W x 19.25H

Standard: UL Listed;Type 3R

Terminal: Lay in

Type: Unmetered Power Supply

Voltage Rating: 240 VAC

Do you have a question about U5000-XL-332?

Request a quote

Videos & documents

Documents

$396.77 / EA

Available to order

View details

Specification comparison

Scan the attributes that differ across these alternatives.

U5168-XTL-200-KK View key specs

SKU: U5168-XTL-200-KK
Price: $425.52 / EA
Availability: 23 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: Horn Bypass
Cable Entry: Overhead or Underground
Cutout Size: One 200 Ampere Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Bar

View full product details

U9090-O View key specs

SKU: U9090-O
Price: $132.02 / EA
Availability: 100 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: No Bypass
Cable Entry: Underground
Cutout Size: No Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Lug

View full product details

WPSK400 View key specs

SKU: WPSK400
Price: $161.91 / EA
Availability: 2 available
Amperage Rating: 400 A
Bypass Type: —
Cable Entry: —
Cutout Size: —
Enclosure: —
Equipment Ground: —

View full product details

U2448-X-RGE View key specs

SKU: U2448-X-RGE
Price: $555.38 / EA
Availability: 2 available
Amperage Rating: 320 A
Bypass Type: Lever Bypass
Cable Entry: Overhead or Underground
Cutout Size: No Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Lug

View full product details

U5168-XTL-100-KK View key specs

SKU: U5168-XTL-100-KK
Price: $361.43 / EA
Availability: 2 available
Amperage Rating: 200 Continuous Ampere
Bypass Type: Horn Bypass
Cable Entry: Overhead or Underground
Cutout Size: One 100 Ampere Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Bar

View full product details

U1252-R-KK-RGE View key specs

SKU: U1252-R-KK-RGE
Price: $396.77 / EA
Availability: Available to order
Amperage Rating: 200 Continuous Ampere
Bypass Type: Horn Bypass
Cable Entry: Overhead or Underground with Center Wireway
Cutout Size: No Main Breaker
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Equipment Ground: Ground Lug

View full product details

Attribute	U5168-XTL-200-KK 4 TERM RNGLS 2 SML CLS PLTS 1-200 AMP MN BRKR 8 BRANCH CKT HRN BYPS	U9090-O 4 TERM RNGLS PLAIN TOP STUD TYPE	WPSK400 Siemens Low Voltage s Multi-Family Metering Line of Power Mod Accessories and Re...	U2448-X-RGE 4 TERM RNGLS LRG CLS PLT LVR BYPS ROCHESTER GAS AND ELECTRIC	U5168-XTL-100-KK 4 TERM RNGLS 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT HRN BYPS	U1252-R-KK-RGE 4 TERM RNGLS LRG HUB OPEN HRN BYPS 2 POS ROCHESTER GAS AND ELECTRIC
Price	$425.52 / EA	$132.02 / EA	$161.91 / EA	$555.38 / EA	$361.43 / EA	$396.77 / EA
Availability	23 available	100 available	2 available	2 available	2 available	Available to order
Amperage Rating	200 Continuous Ampere	200 Continuous Ampere	400 A	320 A	200 Continuous Ampere	200 Continuous Ampere
Bypass Type	Horn Bypass	No Bypass	—	Lever Bypass	Horn Bypass	Horn Bypass
Cable Entry	Overhead or Underground	Underground	—	Overhead or Underground	Overhead or Underground	Overhead or Underground with Center Wireway
Cutout Size	One 200 Ampere Main Breaker	No Main Breaker	—	No Main Breaker	One 100 Ampere Main Breaker	No Main Breaker
Enclosure	G90 Galvanized Steel with Powder Coat Finish	G90 Galvanized Steel with Powder Coat Finish	—	G90 Galvanized Steel with Powder Coat Finish	G90 Galvanized Steel with Powder Coat Finish	G90 Galvanized Steel with Powder Coat Finish
Equipment Ground	Ground Bar	Ground Lug	—	Ground Lug	Ground Bar	Ground Lug
Frequency Rating	60 Hz	60 Hz	—	60 Hz	60 Hz	60 Hz
Hub Opening	Twin Small Closing Plates	Plain Top	—	Large Closing Plate	Twin Small Closing Plates	Large Hub Opening
Insulation	Glass Polyester	Glass Polyester	—	Glass Polyester	Glass Polyester	Glass Polyester
Jaw Quantity	4 Terminal	4 Terminal	—	4 Terminal	4 Terminal	4 Terminal
Line Side Wire Range	6 AWG - 350 kcmil	—	—	—	6 AWG - 350 kcmil	—
Load Side Wire Range	6 AWG - 350 kcmil	6 AWG - 350 kcmil	—	—	6 AWG - 350 kcmil	6 AWG - 350 kcmil
Mounting	Surface Mount	Surface Mount	WALLMOUNTED	Surface Mount	Surface Mount	Surface Mount
Number Branch Circuits	8	—	—	—	8	—
Number Of Cutouts	1	—	—	—	1	—
Number of Meter Positions	1 Position	1 Position	—	1 Position	1 Position	2 Positions
Phase	1	1	—	1	1	1
Size	4.5L x 14.125W x 30H	4.5L x 9W x 20.75H	—	6.5L x 17.75W x 34.125H	4.5L x 14.125W x 30H	5.125L x 26.5W x 14H
Standard	UL Listed;Type 3R	UL Listed;Type 3R	UL-50;67;414	UL Listed;Type 3R	UL Listed;Type 3R	UL Listed;Type 3R
Terminal	Lay in	Lay in	—	3/8 Inch Stud	Lay in	3/8 Inch Stud
Type	Ringless Meter Socket	Ringless Meter Socket	—	Ringless Meter Socket	Ringless Meter Socket	Ringless Meter Socket
Voltage Rating	240 VAC	600 VAC	—	600 VAC	240 VAC	300 VAC
