$984.17 / EA
manufacturer discounts
learn about discounts
- $848.43 for $1,750.00+
- $814.49 for $2,500.00+
- $787.34 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

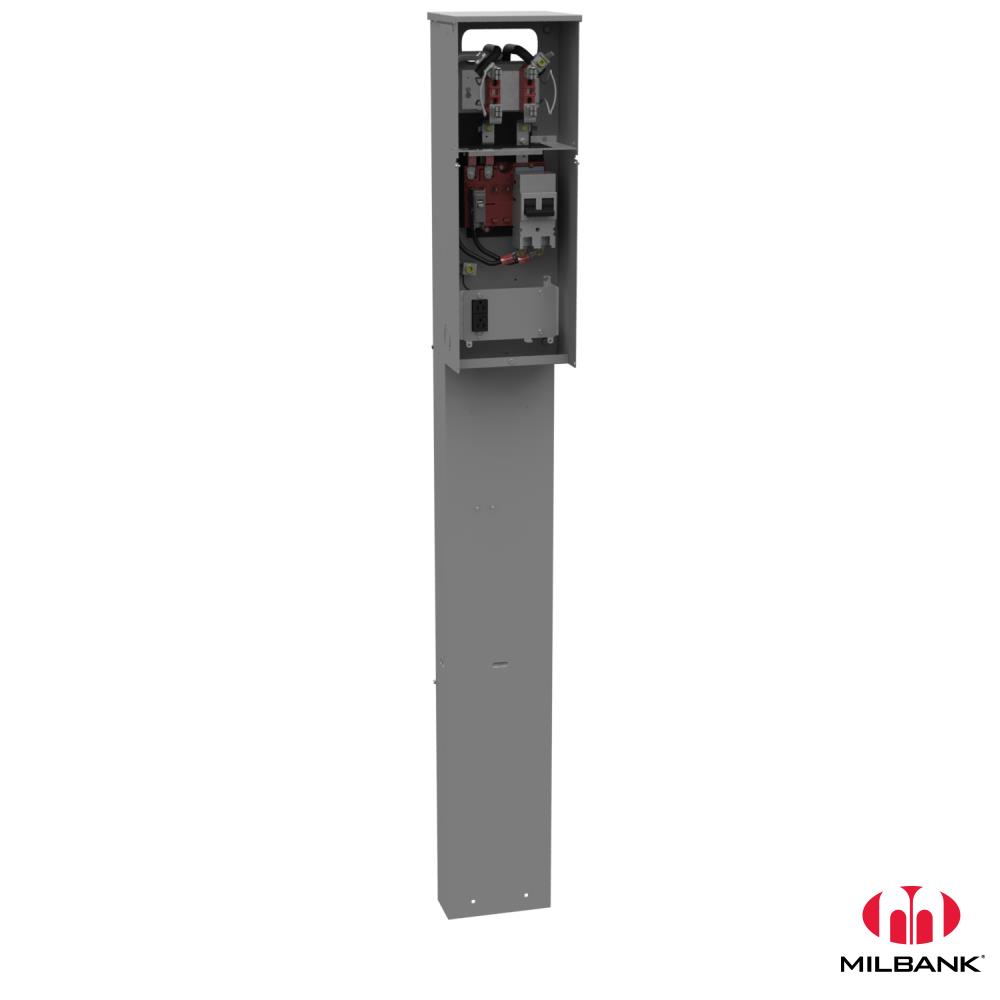

4 TERM RNGLS PLAIN TOP HRN BYPS 1-200 AMP MN BRKR 520GR SGL PED DIR BURY
4 TERM RNGLS PLAIN TOP HRN BYPS 1-200 AMP MN BRKR 520GR SGL PED DIR BURY
150
- UPC
- 784572312470
- UNSPSC
- 39121102
- Country of Origin
- USA
- Amperage Rating:
- 200 Continuous Ampere
- Size:
- 10.25L x 9.688W x 80H
- Type:
- Ringless Meter Socket
- Voltage Rating:
- 240 VAC
- Amperage Rating:
- 200 Continuous Ampere
- Bypass Type:
- Horn Bypass
- Cable Entry:
- Underground
- Cutout Size:
- One 200 Ampere Main Breaker and One Single Pole 20 Ampere Breaker
- Enclosure:
- G90 Galvanized Steel with Powder Coat Finish
- Equipment Ground:
- Ground Bar
- Frequency Rating:
- 60 Hz
- Hub Opening:
- Plain Top
- Insulation:
- Glass Polyester
- Jaw Quantity:
- 4 Terminal
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 1/0 AWG - 300 kcmil
- Mounting:
- Pedestal
- Number Branch Circuits:
- 4
- Number Of Cutouts:
- 2
- Number Of Receptacles:
- 1
- Number of Meter Positions:
- Single Power Head
- Phase:
- 1
- Receptacle Configuration:
- One NEMA 5-20 Ground Fault
- Size:
- 10.25L x 9.688W x 80H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Double Mechanical
- Type:
- Ringless Meter Socket
- Voltage Rating:
- 240 VAC
