$264.11 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Eaton Bussmann series UHT cable limiter, MY
Eaton Bussmann series UHT cable limiter, MY
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limite...150
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
- UPC
- 051712198608
- UNSPSC
- 39121626
- Country of Origin
- MX
- Type:
- Cable limiter
- Dimensions:
- 0.9700 IN X 1.1000 IN X 4.3000 IN
- Standard:
- RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Cable limiter

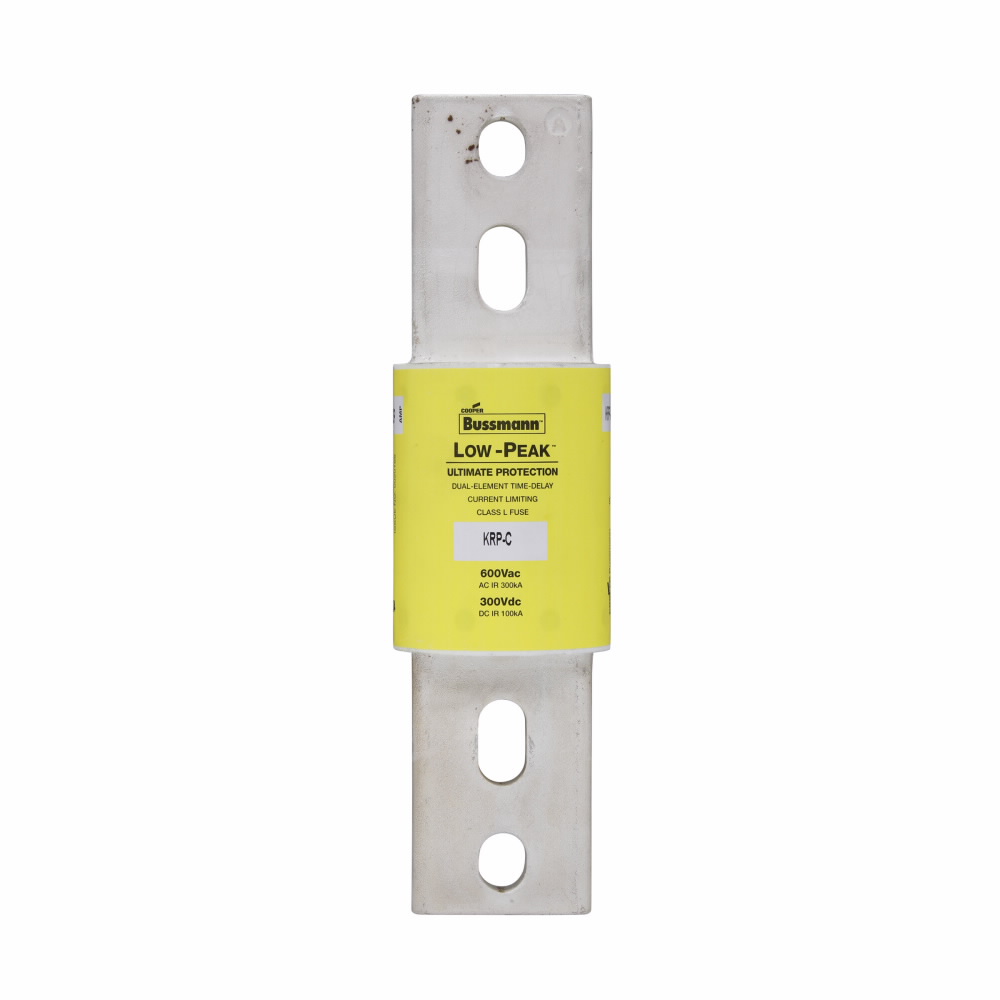

KRP-C-1600SP
$1,702.85 /ea
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1600 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
| Attributed Data | Included |
|---|---|
| Class | L Yes |
| Connection | Bolted blade end x bolted blade end Yes |
| Dimensions | 10.7500 IN X 3.0300 IN X 3.0300 IN Yes |
| Interrupt Rating | 300 kAIC at 600 Vac100 kAIC Vdc Yes |
| Material | Melamine Glass Tube Yes |
| Response Time | 4 sec at 500% Yes |
| Size | 3.00 In Diameter X 10.75 In Length Yes |
| Standard | CE Marked,RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
70F-1/4A
$33.17 /ea
Eaton Bussmann series 70 Series telecommunication fuse, Color code violet, 125 Vac, 300 Vdc, 0.25A, 1 kAIC at 300 Vdc, Non Indicating, Indicating, Ferrule end X ferrule end
| Attributed Data | Included |
|---|---|
| Connection | Ferrule end x ferrule end Yes |
| Dimensions | 1.6300 IN X 0.4200 IN X 2.5000 IN Yes |
| Interrupt Rating | 1 kAIC at 300 Vdc Yes |
| Material | Fiber Tube Yes |
| Size | 0.28 In Diameter X 1.86 In Length Yes |
| Standard | CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Telecommunication fuse Yes |
KRP-C-1800SP
$2,887.19 /ea
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1800 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
| Attributed Data | Included |
|---|---|
| Amperage Rating | 1800 A Yes |
| Class | L Yes |
| Connection | Bolted blade end x bolted blade end Yes |
| Dimensions | 10.7500 IN X 3.5300 IN X 3.5300 IN Yes |
| Interrupt Rating | 300 kAIC at 600 Vac100 kAIC Vdc Yes |
| Material | Melamine Glass Tube Yes |
| Response Time | 4 sec at 500% Yes |
| Size | 3.50 In Diameter X 10.75 In Length Yes |
| Standard | RoHS Compliant,CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
KRP-C-1600SP
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1600 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
$1,702.85 / EA
|
70F-1/4A
Eaton Bussmann series 70 Series telecommunication fuse, Color code violet, 125 Vac, 300 Vdc, 0.25A, 1 kAIC at 300 Vdc, Non Indicating, Indicating, Ferrule end X ferrule end
$33.17 / EA
|
KRP-C-1800SP
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1800 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
$2,887.19 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 1.6k A 1.6k A | 250m A 250m A | 1800 A 1800 A |
| Class | L L | ||
| Connection | Bolted blade end x bolted blade end Bolted blade end x bolted blade end | Ferrule end x ferrule end Ferrule end x ferrule end | |
| Dimensions | 1.6300 IN X 0.4200 IN X 2.5000 IN 1.6300 IN X 0.4200 IN X 2.5000 IN | 10.7500 IN X 3.0300 IN X 3.0300 IN 10.7500 IN X 3.0300 IN X 3.0300 IN | 10.7500 IN X 3.5300 IN X 3.5300 IN 10.7500 IN X 3.5300 IN X 3.5300 IN |
| Interrupt Rating | 1 kAIC at 300 Vdc 1 kAIC at 300 Vdc | 300 kAIC at 600 Vac100 kAIC Vdc 300 kAIC at 600 Vac100 kAIC Vdc | |
| Material | Fiber Tube Fiber Tube | Melamine Glass Tube Melamine Glass Tube | |
| Response Time | 0 to 9@150% s 0 to 9@150% s | 4 sec at 500% 4 sec at 500% | |
| Size | 0.28 In Diameter X 1.86 In Length 0.28 In Diameter X 1.86 In Length | 3.00 In Diameter X 10.75 In Length 3.00 In Diameter X 10.75 In Length | 3.50 In Diameter X 10.75 In Length 3.50 In Diameter X 10.75 In Length |
| Standard | CE Marked CE Marked | CE Marked,RoHS Compliant CE Marked,RoHS Compliant | RoHS Compliant,CE Marked RoHS Compliant,CE Marked |
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Fuse Fuse | Telecommunication fuse Telecommunication fuse | |
| Voltage Rating | 125//300 VAC//VDC 125//300 VAC//VDC | 600//300 VAC//VDC 600//300 VAC//VDC | |
| Add a product to the cart | Show more details | Show more details | Show more details |
