W40-1FC
SKU: W40-1FC
MPN: W40-1FC
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Size
- L= 17.50 - Diameter Flex IN
- Type
- Wedge Clamps
Description
Product overview

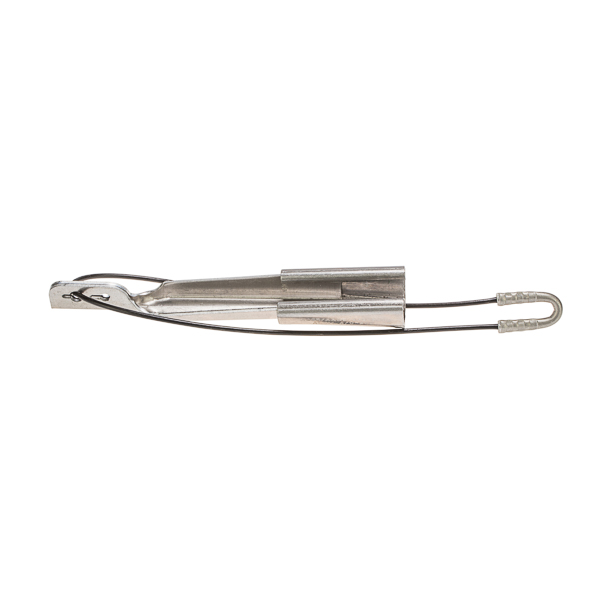

Aluminum Service Flex Wedge Clamp for 4/0 - 2/0 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.
Aluminum Service Flex Wedge Clamp for 4/0 - 2/0 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI W40-1FC Wedge Clamp 4/0-2/0 Al
- Invoice description
- Wedge Clamp 4/0-2/0 Al.Flex
Specifications
- UPC
- 662381082923
- Color
- Silver
- Material
- Aluminum
- Size
- L= 17.50 - Diameter Flex IN
- Type
- Wedge Clamps
- Cable Size
- 4/0-2/0(ACSR) - 4/0 STR-2 SOL(Aluminum)
- Color
- Silver
- Finish
- Aluminum
- Material
- Aluminum
- Size
- L= 17.50 - Diameter Flex IN
- Sub Brand
- Hardware & Misc
- Type
- Wedge Clamps
