WC-B-SJ
SKU: WC-B-SJ
MPN: WC-B-SJ
Key specs
View all- Color
- Blue
- Material
- Thermoplastic
- Size
- H=.697 - W=.390 - ID=.161
- Type
- Standard Wire Connectors
- Voltage Rating
- 300 V
Description
Product overview

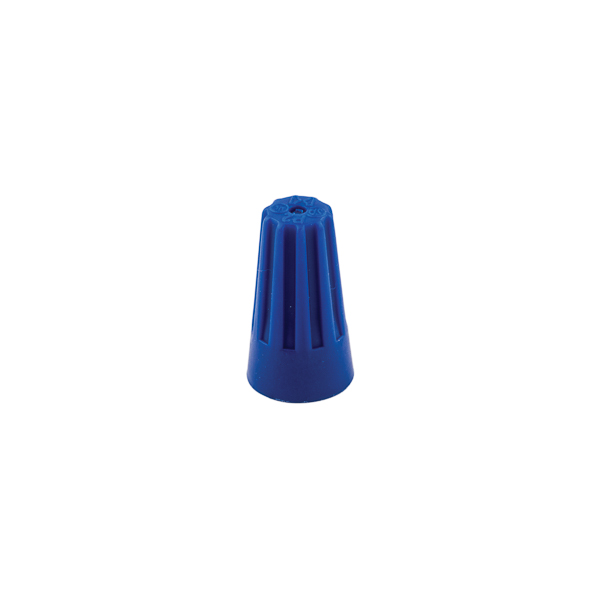

Easy-Twist Standard Twist-On Wire Connectors - Standard Blue Small Jar 22-14 AWG APPLICATIONS: Easy-Twist Standard Twist-On Wire Connectors have a flame retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation. They have a temperature rating of 221 degrees F (105 degrees C). Their fixed, precise square wire spring provides secure gripping of conductors. Their deep skirt entry provides protection from flashover and shorts. Sure-grip ribs improve gripping comfort. Compa...
Easy-Twist Standard Twist-On Wire Connectors - Standard Blue Small Jar 22-14 AWG APPLICATIONS: Easy-Twist Standard Twist-On Wire Connectors have a flame retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation. They have a temperature rating of 221 degrees F (105 degrees C). Their fixed, precise square wire spring provides secure gripping of conductors. Their deep skirt entry provides protection from flashover and shorts. Sure-grip ribs improve gripping comfort. Compact design ensures proper installation - especially in tight spaces. Threaded funnel entry guides the wires into the connector easily. Pre-twisting of wires is not necessary. 1,000 volt maximum in fixtures and signs. UL 486C Listed Wire Connector. For Copper Wire Only.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI WC-B-SJ STANDARD BLUE EASY TWIS
- Invoice description
- Easy-Twist Blue - Std Jar
Specifications
- UPC
- 662381142399
- Color
- Blue
- Material
- Thermoplastic
- Size
- H=.697 - W=.390 - ID=.161
- Type
- Standard Wire Connectors
- Voltage Rating
- 300 V
- Color
- Blue
- Conductor Range
- 22-14 AWG
- Environmental Conditions
- 105 C
- Finish
- Thermoplastic
- Material
- Thermoplastic
- Number Of Conductors
- 1
- Size
- H=.697 - W=.390 - ID=.161
- Standard
- UL486C Listed
- Sub Brand
- Easy Twist
- Temperature Rating
- 105 C
- Type
- Standard Wire Connectors
- Voltage Rating
- 300 V
- Wire Type
- CU Wire Only
