$743.66 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

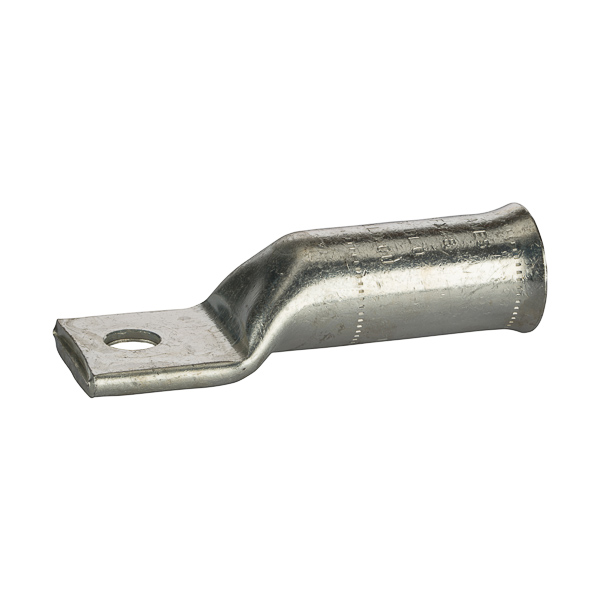

1 Hole Long Barrel Belled End Copper Compression Lug 700 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. Temperature rating 90 degrees C.
1 Hole Long Barrel Belled End Copper Compression Lug 700 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. Temperature rating 90 degrees C.
150
- UPC
- 662381337160
- Material:
- Copper
- Size:
- L=4.97 - W=1.70 - OD=1.23 - ID=.975
- Type:
- Long Barrel - One Hole - Belled End
- Voltage Rating:
- 600 V
- Cable Size:
- 700 MCM (STR)
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 1/2 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=4.97 - W=1.70 - OD=1.23 - ID=.975
- Standard:
- UL486
- Stud Size:
- 0.5 in
- Sub Brand:
- Copper Compression
- Type:
- Long Barrel - One Hole - Belled End
- Voltage Rating:
- 600 V
