$605.84 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

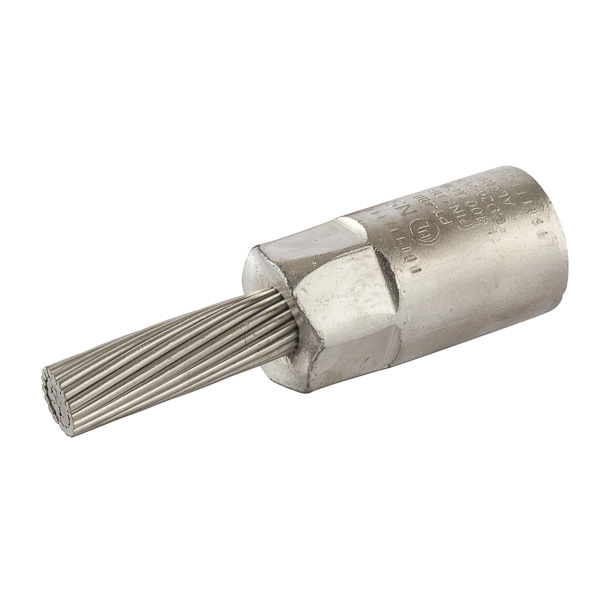

Stranded Bi-Metallic Pin Terminal 400 MCM Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Stranded Bi-Metallic Pin Terminal 400 MCM Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
150
- UPC
- 662381033116
- Color:
- Pink
- Material:
- Aluminum/Copper
- Number Of Poles:
- 1
- Size:
- L=4.36 - OD=1.33 - ID=.759 - Pin Dia=.582
- Type:
- Bi-Metallic Pin
- Voltage Rating:
- 600 V
- Color:
- Pink
- Conductor Range:
- 400 MCM (STR)
- Connection:
- 250 Pin
- Environmental Conditions:
- 90 C
- Finish:
- Aluminum
- Insulation:
- Plastisol
- Material:
- Aluminum/Copper
- Number Of Conductors:
- 1
- Number Of Poles:
- 1
- Size:
- L=4.36 - OD=1.33 - ID=.759 - Pin Dia=.582
- Standard:
- UL486
- Sub Brand:
- Pin Terminals
- Temperature Rating:
- 90 C
- Type:
- Bi-Metallic Pin
- Voltage Rating:
- 600 V
