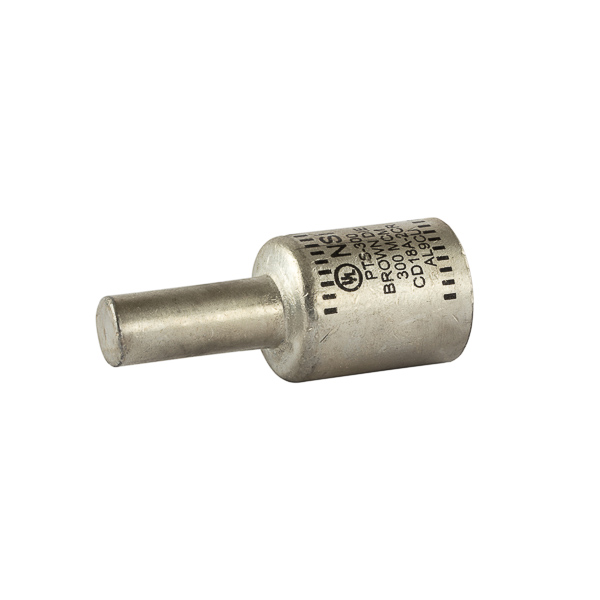

Solid Pin Terminal for Copper and Aluminum Conductors 300 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Nsi Industries PTS300

Name: PTS300 — Solid Pin Terminal for Copper and Aluminum Conductors 300 MCM All-aluminum Pin Terminals
Brand: NSI Industries
SKU: PTS300
Price: 372.69 USD
Availability: BackOrder

Purchase options

$372.69 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

Description

Solid Pin Terminal for Copper and Aluminum Conductors 300 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

150

Specifications

UPC: 662381033499
Color: Brown
Material: Aluminum
Number Of Poles: 1
Size: L=2.74 - OD=1.09 - ID=.653 - Pin Dia=.530
Type: Solid Pin
Voltage Rating: 600 V
Color: Brown
Conductor Range: 300 MCM (STR)
Connection: 4/0 Pin
Environmental Conditions: 90 C
Finish: Tin Plated
Insulation: Plastisol
Material: Aluminum
Number Of Conductors: 1
Number Of Poles: 1
Size: L=2.74 - OD=1.09 - ID=.653 - Pin Dia=.530
Standard: UL486
Sub Brand: Pin Terminals
Temperature Rating: 90 C
Type: Solid Pin
Voltage Rating: 600 V
