Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$67.61 / EA
manufacturer discounts
learn about discounts
- $58.29 for $1,750.00+
- $55.96 for $2,500.00+
- $54.09 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

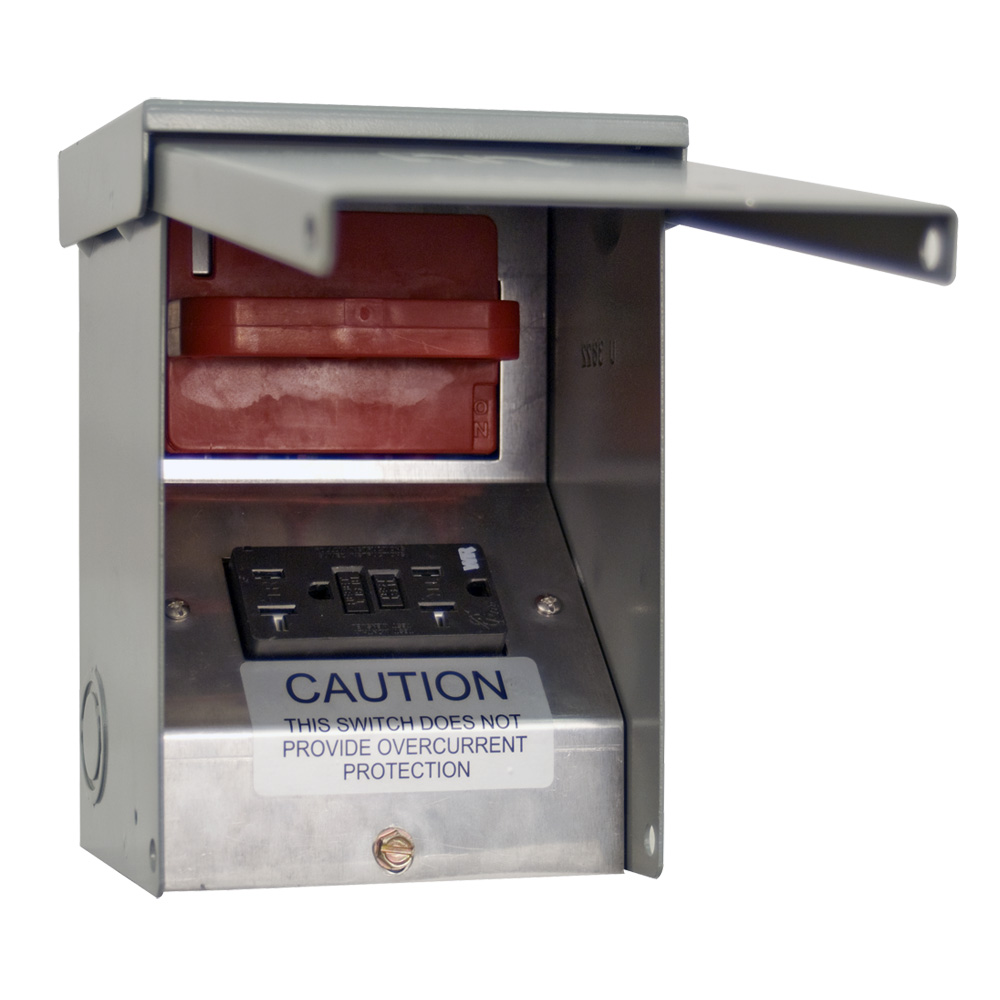

60 AMP NON-FUSED AC DISC 520GR PULL-OUT
60 AMP NON-FUSED AC DISC 520GR PULL-OUT
150
- UPC
- 784572527829
- UNSPSC
- 39122233
- Country of Origin
- USA
- Amperage Rating:
- 60 A
- Number Of Poles:
- 2
- Size:
- 5.065L x 4.672W x 7.5H
- Type:
- Air Conditioner Disconnect
- Voltage Rating:
- 240 VAC
- Amperage Rating:
- 60 A
- Conduit Connection:
- Knockouts
- Connection:
- Pullout
- Contact Configuration:
- Pull Out
- Contact Rating:
- 60 Ampere Up to 240 Volts Alternating Current
- Enclosure:
- Painted Steel
- Interrupt Rating:
- 10,000 Ampere Interrupting Capacity
- Mounting:
- Surface Mount
- Number Of Poles:
- 2
- Size:
- 5.065L x 4.672W x 7.5H
- Standard:
- UL Listed;Type 3R
- Trip Type:
- None
- Type:
- Air Conditioner Disconnect
- Voltage Rating:
- 240 VAC
360MF6WLEV
$1,869.02 /ea
60 Amp, 240 Volt, IEC 309-1 & 309-2, 2P, 3W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Fused - Blue
| Attributed Data | Included |
|---|---|
| Actuator | Cam Lever Yes |
| Color | Blue Yes |
| Contact Rating | 240 V;60 AMP Yes |
| Environmental Conditions | Flammability (0.6 V-0) Yes |
| Material | Valox 357 Yes |
| Number Of Poles | 2 Yes |
| Number Of Poles | 3 Yes |
| Number Of Wires | 3 Yes |
| Replacement Parts Material | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun Yes |
| Standard | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) Yes |
| Sub Brand | PowerSwitch Yes |
| Type | Pin & Sleeve Fused Mechanical Interlock Yes |
520MI5WLEV
$1,015.52 /ea
20 Amp, 347/600 Volt 3PY, IEC 309-1 & 309-2, 4P, 5W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Black
| Attributed Data | Included |
|---|---|
| Actuator | Cam Lever Yes |
| Color | Black Yes |
| Contact Rating | 347/600 V;20 AMP Yes |
| Environmental Conditions | Flammability (0.6 V-0) Yes |
| Material | Valox 357 Yes |
| Number Of Poles | 4 Yes |
| Number Of Wires | 4 Yes |
| Number Of Wires | 5 Yes |
| Replacement Parts Material | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun Yes |
| Standard | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) Yes |
| Sub Brand | PowerSwitch Yes |
| Type | Pin & Sleeve Non Fused Mechanical Interlock Yes |
430MI12WLEV
$1,057.17 /ea
30 Amp, 125/250 Volt, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Orange
| Attributed Data | Included |
|---|---|
| Actuator | Cam Lever Yes |
| Color | Orange Yes |
| Contact Rating | 125/250 V;30 AMP Yes |
| Environmental Conditions | Flammability (0.6 V-0) Yes |
| Material | Valox 357 Yes |
| Number Of Poles | 3 Yes |
| Number Of Poles | 4 Yes |
| Number Of Wires | 3 Yes |
| Number Of Wires | 4 Yes |
| Replacement Parts Material | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun Yes |
| Standard | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) Yes |
| Sub Brand | PowerSwitch Yes |
| Type | Pin & Sleeve Non Fused Mechanical Interlock Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
360MF6WLEV
60 Amp, 240 Volt, IEC 309-1 & 309-2, 2P, 3W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Fused - Blue
$1,869.02 / EA
|
520MI5WLEV
20 Amp, 347/600 Volt 3PY, IEC 309-1 & 309-2, 4P, 5W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Black
$1,015.52 / EA
|
430MI12WLEV
30 Amp, 125/250 Volt, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Orange
$1,057.17 / EA
|
|
| Attributed Data | |||
| Actuator | Cam Lever Cam Lever | ||
| Amperage Rating | 20 A 20 A | 30 A 30 A | 60 A 60 A |
| Color | Black Black | Blue Blue | Orange Orange |
| Contact Rating | 125/250 V;30 AMP 125/250 V;30 AMP | 240 V;60 AMP 240 V;60 AMP | 347/600 V;20 AMP 347/600 V;20 AMP |
| Environmental Conditions | Flammability (0.6 V-0) Flammability (0.6 V-0) | ||
| Horsepower | 25 HP 25 HP | ||
| Material | Valox 357 Valox 357 | ||
| Number Of Poles | 2 2 | 3 3 | 4 4 |
| Number Of Wires | 3 3 | 4 4 | 5 5 |
| Operating Temperature | -40 to +60 DEG C -40 to +60 DEG C | ||
| Replacement Parts Material | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun | ||
| Size | 8.78 W x 12.52 H x 8.29 D IN 8.78 W x 12.52 H x 8.29 D IN | 9.37 W x 18.54 H x 9.80 D IN 9.37 W x 18.54 H x 9.80 D IN | |
| Standard | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) | ||
| Sub Brand | PowerSwitch PowerSwitch | ||
| Type | Pin & Sleeve Fused Mechanical Interlock Pin & Sleeve Fused Mechanical Interlock | Pin & Sleeve Non Fused Mechanical Interlock Pin & Sleeve Non Fused Mechanical Interlock | |
| Voltage Rating | 125/250 VAC 125/250 VAC | 240 VAC 240 VAC | 347/600 VAC 347/600 VAC |
