Erico Products Inc 200RS375 Beam Clamps product image

Erico Products Inc 200RS375 Beam Clamps product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Product Data Spec Sheet

200RS375

SKU: 200RS375

MPN: 200RS375

Purchase options

$17.44 / EA

manufacturer discounts
learn about discounts

$15.64 for $1,300.00+
$14.79 for $2,000.00+
$14.19 for $3,000.00+

Available to order

Lead time: 1-2 working days

Must be purchased in multiples of 10

Lead time: 1-2 working days
Secure checkout with protected order handling.
Minimum order multiple: 10 units.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Material: Steel
Type: Beam Clamps and Accessories

Description

Product overview

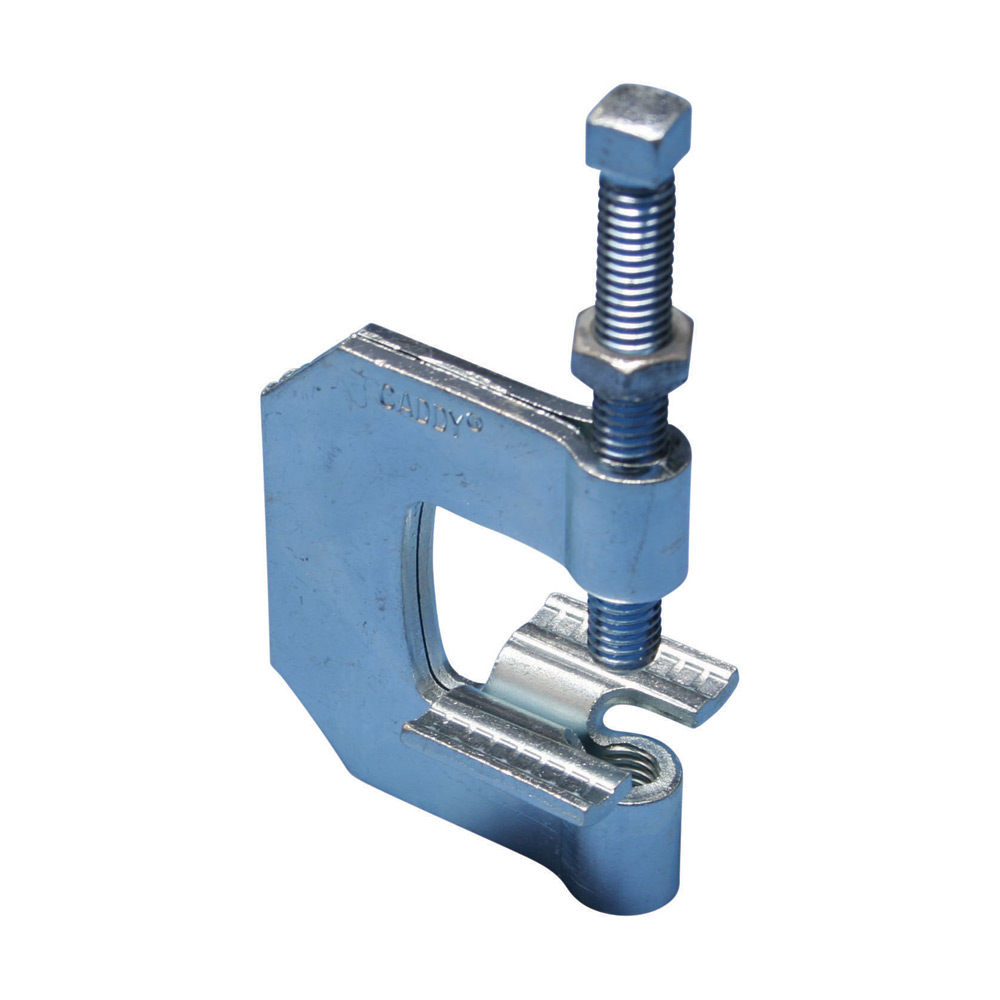

C-Clamp for Strut and Rod, 3/8" Rod, 5/8" Max Flange

Manufacturer highlights

Dual puropse beam clamp for rod and strut
Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI/MSS-SP-58 (Type 23)

Additional manufacturer notes

Short description: CLAMP,BEAM,MILD STEEL, 3/8-16
Short name: EFS
Feed description: NVENT EFS 200RS375 CLAMP,BEAM,MILD

Specifications

UPC: 782856342458

UNSPSC: 31162905

Country of Origin: US

Material: Steel

Type: Beam Clamps and Accessories

Finish: Galvanized

Flange Thickness (Imperial) <Max>: 5/8 in

Material: Steel

Rod Size: 3/8

Standard: UL, cUL

Static Load (lb): 250 lb

Sub Brand: CADDY

Type: Beam Clamps and Accessories

Manufacturer keywords: 1-hole Beam Clamp, Standard Flange, Strut Attachment, Top Mounted Beam Clamp

Do you have a question about 200RS375?

Videos & documents

Documents

$944.36 / EA

Available to order

View details

Specification comparison

Scan the attributes that differ across these alternatives.

126-TOPAZ View key specs

SKU: 126-TOPAZ
Price: $2.99 / EA
Availability: Available to order
Color: —
For Use With: Hanging & Support Devices
Height: 2.49 IN
Label Description: I-BEAM CLAMP
Length: 2.49 in
Material: Steel

View full product details

DPS8 View key specs

SKU: DPS8
Price: $18.08 / EA
Availability: Available to order
Color: —
For Use With: —
Height: —
Label Description: —
Length: —
Material: ABS/AES

View full product details

MB38SBC View key specs

SKU: MB38SBC
Price: $7.84 / EA
Availability: Available to order
Color: —
For Use With: —
Height: —
Label Description: —
Length: —
Material: —

View full product details

1052-MAW View key specs

SKU: 1052-MAW
Price: $3.72 / EA
Availability: Available to order
Color: —
For Use With: —
Height: —
Label Description: —
Length: —
Material: —

View full product details

BC25 View key specs

SKU: BC25
Price: $1.63 / EA
Availability: Available to order
Color: Silver
For Use With: —
Height: —
Label Description: —
Length: 1.312 in
Material: Steel

View full product details

SUB158 View key specs

SKU: SUB158
Price: $944.36 / EA
Availability: Available to order
Color: —
For Use With: —
Height: —
Label Description: —
Length: —
Material: Cold Formed Steel

View full product details

Attribute	126-TOPAZ 3/8" - 16 I-Beam Steel C Clamps	DPS8 8 Inch Pre Cut UL Listed Pipe Support Block	MB38SBC PECO FASTENERS 3/8-16 STAMPED BEAM CLAMP 25 PER BOX	1052-MAW 3/4" Bronze Ground Rod Clamps	BC25 Beam Clamp. Plated Steel. 1/4/20 threaded rod size. Static Load rating 75lbs.	SUB158 U-Bolt Beam Clamp, Cold Formed Steel material, 1-5/8 x 1-5/8 in. Size
Price	$2.99 / EA	$18.08 / EA	$7.84 / EA	$3.72 / EA	$1.63 / EA	$944.36 / EA
Availability	Available to order	Available to order	Available to order	Available to order	Available to order	Available to order
Color	—	—	—	—	Silver	—
For Use With	Hanging & Support Devices	—	—	—	—	—
Height	2.49 IN	—	—	—	—	—
Label Description	I-BEAM CLAMP	—	—	—	—	—
Length	2.49 in	—	—	—	1.312 in	—
Material	Steel	ABS/AES	—	—	Steel	Cold Formed Steel
Material of Construction	—	ABS/AES	—	—	Plated Steel	Steel
Maximum Load	—	130 LB/IN	—	—	—	—
Nominal Length Inches	1.47	—	—	—	—	—
Opening Size	0.73 IN	—	—	—	—	—
Rod Size	3/8 - 16 IN	3/8 IN	—	—	—	—
Rod Size (IN)	3/8 - 16 IN	—	—	—	—	—
Screw	Yes	—	—	—	—	—
Set Screw	Yes	—	—	—	—	—
Size	3/4 IN	8 IN	—	—	L(1.312) x W(1.718) x H(0.812) IN	1-5/8 x 1-5/8 IN
Size (IN)	3/8" - 16 IN	—	—	—	—	—
Standard	UL 514B, UL File Number E174011, US Federal Specification Number A-A-50553, NEMA/ANSI FB-1, Military Specification: W-F-406D, W-F-406E, W-F-408D, W-S-610D	UL Listed	—	—	—	—
Type	C Clamp	Pipe Support	—	—	Beam Clamp	U-Bolt Beam Clamp
Width	—	—	—	—	1.718 IN	—
