$30.17 / EA
manufacturer discounts
learn about discounts
- $27.05 for $1,500.00+
- $26.01 for $2,500.00+
- $24.97 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

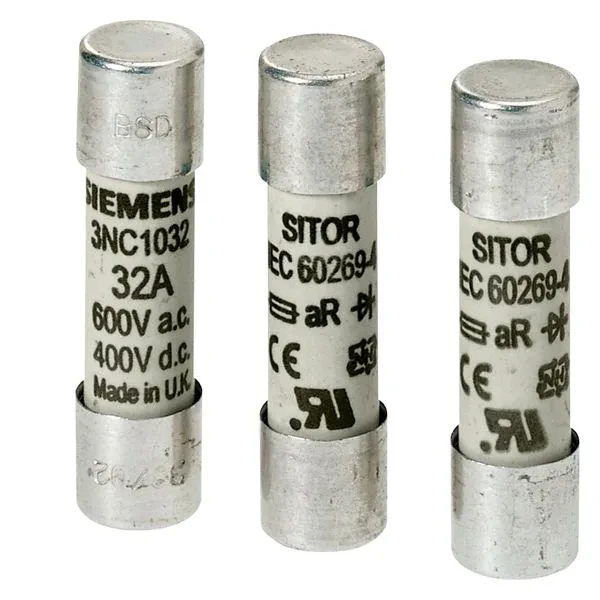

FUSE LINK, SITOR, 50A, 690V AC,14 X 51MM SITOR CYLINDRICAL FUSE LINK AR 50 A, 660 V AC/700 V DC
FUSE LINK, SITOR, 50A, 690V AC,14 X 51MM SITOR CYLINDRICAL FUSE LINK AR 50 A, 660 V AC/700 V DC
150
- UPC
- 662643167634
- UNSPSC
- 39121626
- Country of Origin
- IN
- Amperage Rating:
- 50 A
- Size:
- NH1
- Type:
- Semiconductor Fuses SITOR
- Voltage Rating:
- 690 V
- Amperage Rating:
- 50 A
- Current / at AC / rated value:
- 50
- Design of the product:
- DCacc.toUL
- Measurable line frequency / Full-scale value:
- 45
- Measurable line frequency / initial value:
- 62
- Net weight:
- 19.0g
- Operating class of the fuse link:
- aR
- Operating current / Rated value:
- 50
- Operating voltage / rated value:
- 690
- Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole:
- 9
- Power loss [W] / maximum:
- 9
- Product component / striker:
- No
- Product designation:
- SITORcylindricalfuselink
- Reference code / acc. to DIN EN 61346-2:
- F
- Reference code / acc. to DIN EN 81346-2:
- F
- Size:
- NH1
- Size of the fuse link:
- 14x51mm
- Standard:
- UL 512
- Sub Brand:
- SENTRON
- Supply voltage / at DC:
- 700
- Supply voltage / rated value / maximum:
- 690V
- Supply voltage / rated value / minimum:
- 10V
- Switching capacity short-circuit current:
- 100kA
- Tripping characteristic class:
- aR
- Type:
- Semiconductor Fuses SITOR
- Type of voltage:
- AC
- Voltage Rating:
- 690 V
- mounting position:
- Any,preferablyvertical
- product brand name:
- SENTRON
