$379.84 / EA
manufacturer discounts
learn about discounts
- $340.55 for $1,500.00+
- $327.45 for $2,500.00+
- $314.35 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

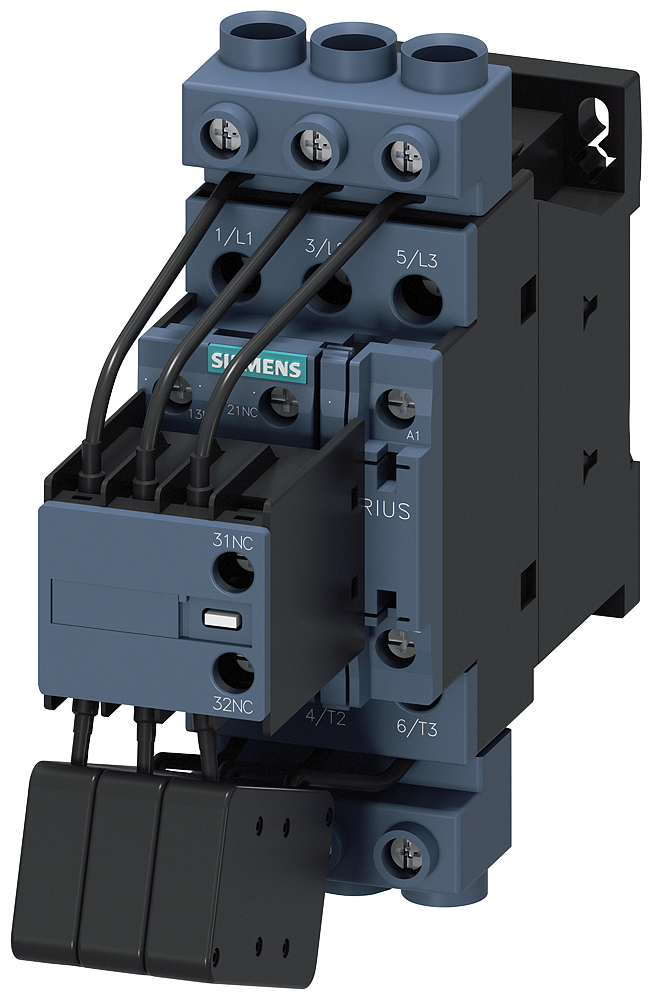

CONTACTOR. AC-6B. 33KVAR/400V. 1NO+2NC. 110 V AC 50HZ / 120 V 60 HZ. 3-POLE. SIZE S0 SCREW TERMINAL
CONTACTOR. AC-6B. 33KVAR/400V. 1NO+2NC. 110 V AC 50HZ / 120 V 60 HZ. 3-POLE. SIZE S0 SCREW TERMINAL
150
- UPC
- 804766233715
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles:
- 3
- Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required:
- gG:100A(690V,50kA)
- Number Of Poles:
- 3
- Operating current / of auxiliary contacts / at DC-12 / at 600 V:
- 0.15 A
- Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value:
- 4.8 kvar
- Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value:
- 8.3 kvar
- Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum:
- 33 kvar
- Product extension / Auxiliary switch:
- No
- Shock resistance / at rectangular impulse / at AC:
- 8,3g/5ms,5,3g/10ms
- Size of contactor:
- S0
- Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing:
- 1x(2.5...16mm²)
