3VA6140-8JT31-0AA0
SKU: 3VA6140-8JT31-0AA0
MPN: 3VA6140-8JT31-0AA0
Key specs
View all- Number Of Poles
- 3
- Type
- 3VA6
- Voltage Rating
- 480 V
Description
Product overview

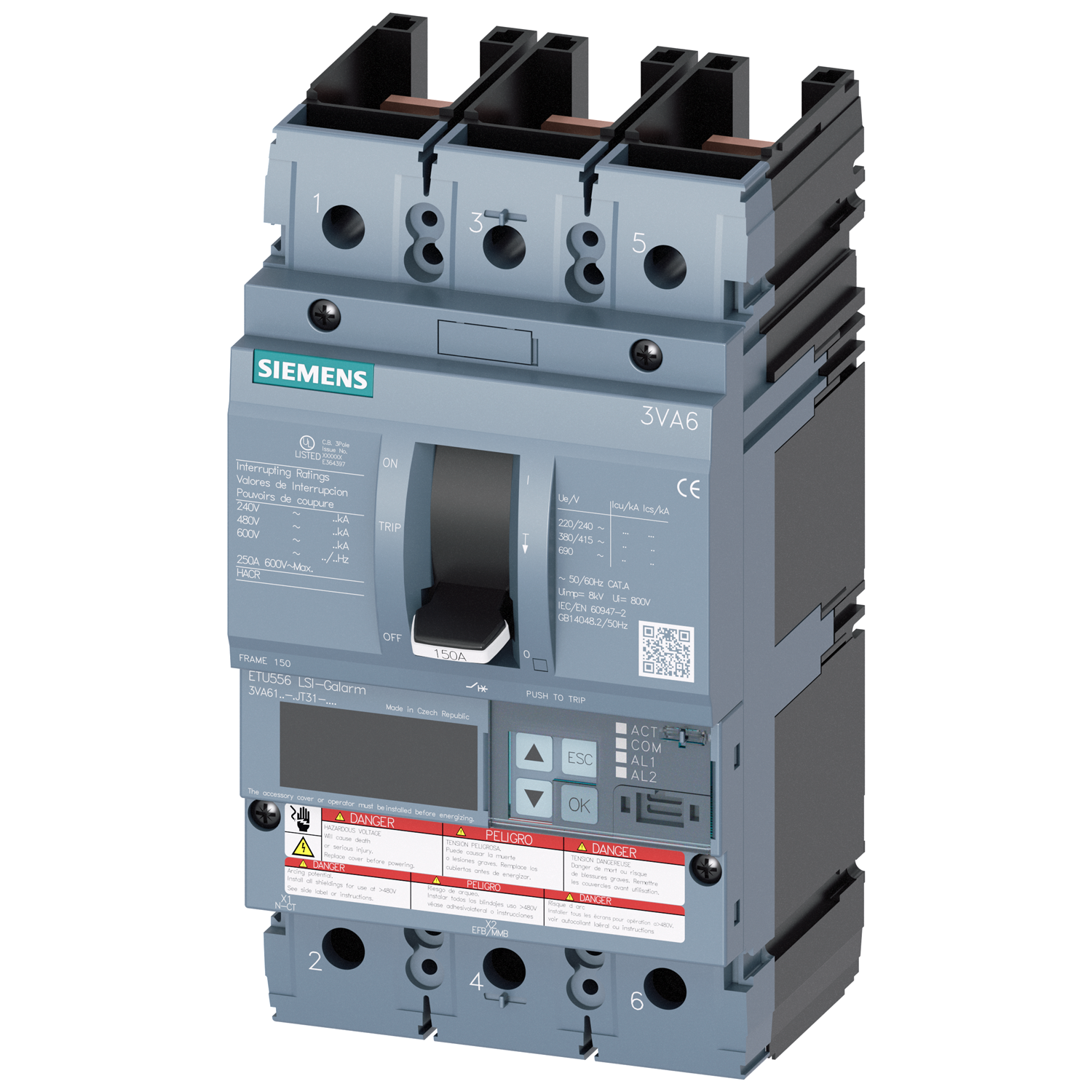

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 40A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU556 TRIP UNIT LCD LSI GROUND ALARM. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 40A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU556 TRIP UNIT LCD LSI GROUND ALARM. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3VA6140-8JT31-0AA0 BRKR 3VA61 3
- Invoice description
- BRKR 3VA61 3P 40A 150KA ETU5-LSIA
Specifications
- UPC
- 804766307195
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles
- 3
- Type
- 3VA6
- Voltage Rating
- 480 V
- Ambient temperature / during storage / minimum
- -40
- Breaking capacity current / at AC / at 240 V / acc. to UL 489 / rated value
- 200
- Breaking capacity current / at AC / at 480 V / acc. to UL 489 / rated value
- 150
- Breaking capacity current / at AC / at 600 V / acc. to UL 489 / rated value
- 50
- Certificate of suitability / as approval for NAVAL (no combat vessels) / Supplement SB
- Yes
- Connection
- punched copper bar without any lug
- Current Rating
- 40A
- Depth [in]
- 3.4
- Design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)
- Yes
- Electrical endurance (switching cycles) / at 480 V / at 50/60 Hz
- 9000
- Electrical endurance (switching cycles) / at 600 V / at 50/60 Hz
- 9000
- Frame
- 150A
- Height
- 198
- Height [in]
- 7.8
- Interrupt Rating
- WITH 150kA INTERRUPTION RATING
- Length
- 4.13
- Maximum short-circuit current breaking capacity (Icu) / at 690 V / rated value
- 2.5
- Number Of Poles
- 3
- Operating current / at 55 °C / rated value
- 40
- Operating current / at 60 °C / rated value
- 40
- Product function / Ground fault protection
- No
- Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / max
- 1
- Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / max
- 1
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / max
- 25
- Setting range / Overload function L / Setting current IR / max
- 1
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / max
- 12
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / max
- 10
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / max
- 10
- Setting range / Short-circuit function, short-time delay / can be switched on/off
- No
- Standard
- UL
- Sub Brand
- 3VA
- Trip Type
- ETU556 LSI(G) LCD
- Type
- 3VA6
- Voltage Rating
- 480 V
- Width
- 105
- Width [in]
- 4.1
