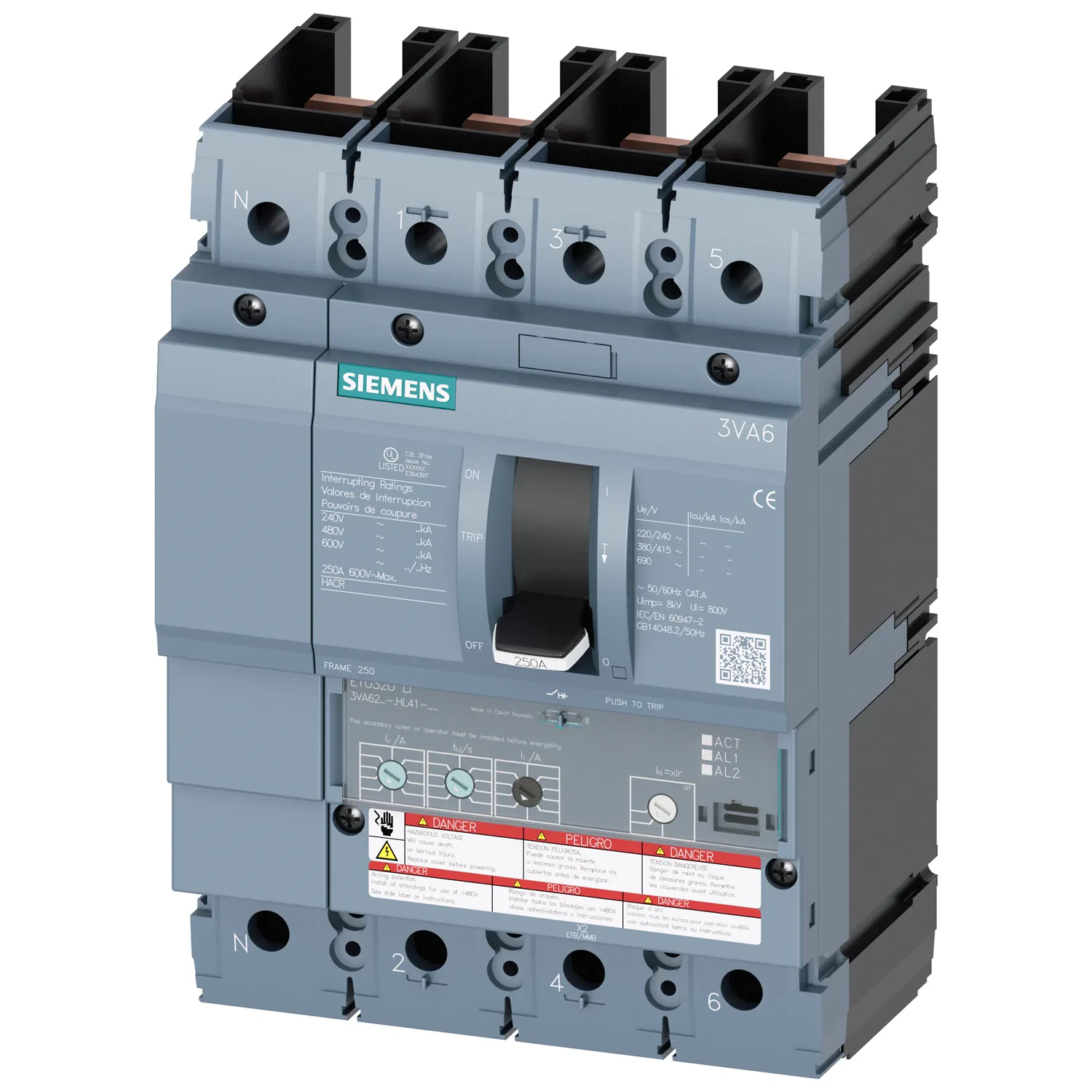

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 100A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6210-5HL41-0AA0

$3,340.28 / EA

manufacturer discounts
learn about discounts

  • $2,994.73 for $1,500.00+
  • $2,879.55 for $2,500.00+
  • $2,764.37 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 100A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 100A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

150

UPC
804766311642
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
4
Type:
3VA6
Voltage Rating:
480 V
Connection:
punched copper bar without any lug
Continuous current / rated value:
100
Continuous current / rated value / maximum:
250.0A
Current Rating:
100 A
Design of the operating mechanism:
togglehandle
Design of the overcurrent release:
ETU320
Design of the product:
Systemprotection
Frame:
250A
Height:
198
Interrupt Rating:
WITH 35kA INTERRUPTION RATING
Length:
5.51
Number Of Poles:
4
Operating current / at 40 °C / rated value:
100
Operating current / at 45 °C / rated value:
100
Operating current / at 50 °C / rated value:
100
Operating current / at 70 °C / rated value:
100
Overcurrent release / Protective functions:
LIN
Product component / display:
No
Product designation:
Molded-casecircuitbreaker
Product designation / according to UL file:
MFAE-Y
Product extension / optional / motor drive:
Yes
Product function / Intrinsic device protection:
Yes
Product function / communication function:
No
Product function / other measurement function:
No
Protective function of the overcurrent release:
LI
Simaris relevant:
-
Standard:
UL
Sub Brand:
3VA
Suitability for use:
systemprotection
Trip Type:
ETU320 LI ADJUSTMENT KNOB
Type:
3VA6
Type of the driving mechanism / motor drive:
No
Voltage Rating:
480 V
Width:
140
circuit-breaker / Design:
3VA6
product brand name:
SENTRON
