Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$7,302.26 / EA
manufacturer discounts
learn about discounts
- $6,546.85 for $1,500.00+
- $6,295.05 for $2,500.00+
- $6,043.25 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

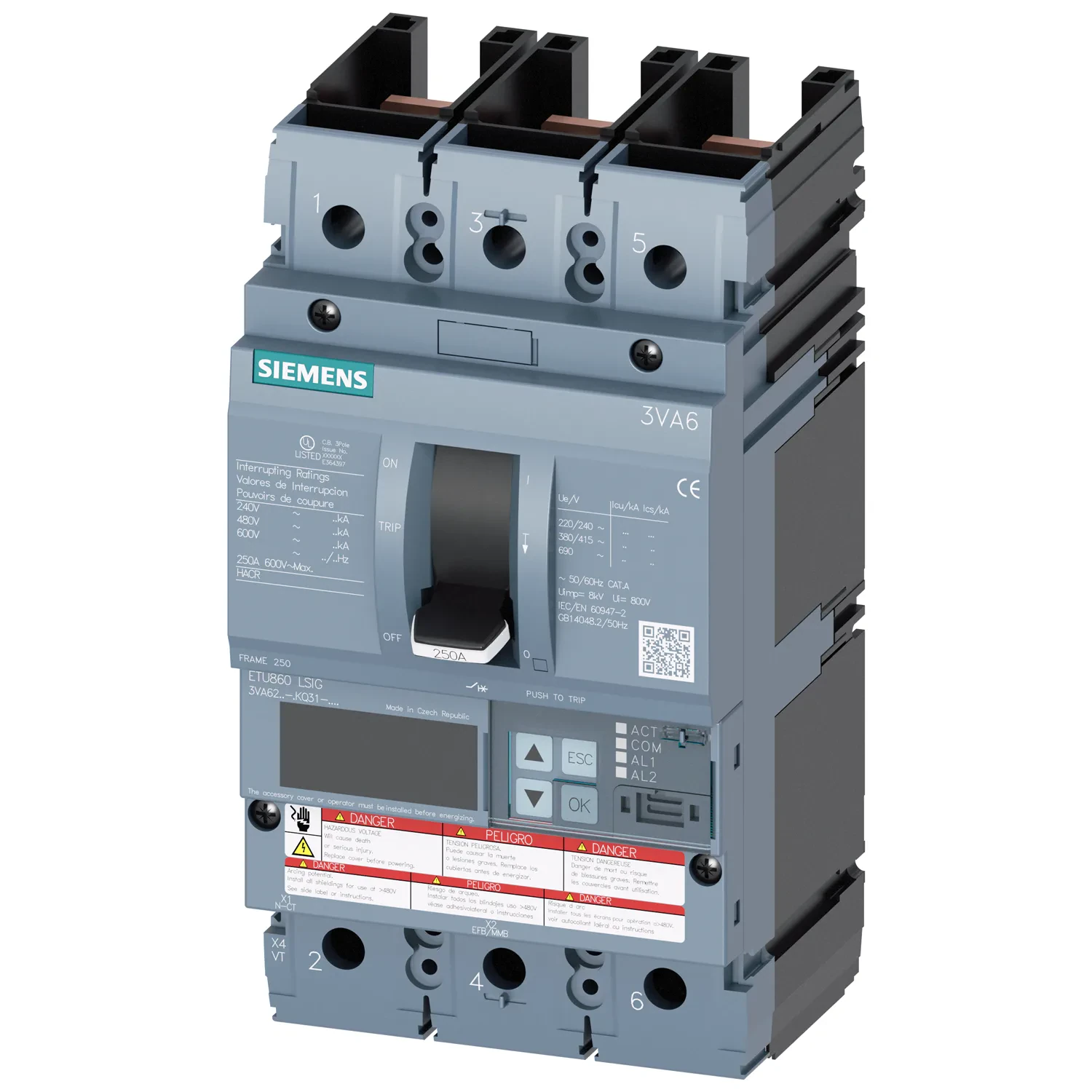

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 100A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 100A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
150
- UPC
- 804766310621
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Adjustable delay time / for G-tripping / with I2t characteristic / Full-scale value:
- 0.80s
- Adjustable delay time / for G-tripping / with I2t characteristic / initial value:
- 0.05s
- Adjustable delay time / of S-trip / with I2t characteristic / Full-scale value:
- 0.50s
- Adjustable delay time / of S-trip / with I2t characteristic / initial value:
- 0.05s
- Adjustable delay time / of S-trip / with standard characteristic / Full-scale value:
- 0.50s
- Adjustable delay time / of S-trip / with standard characteristic / initial value:
- 0.05s
- Adjustable pick-up value current / for G-tripping / with standard characteristic / Full-scale value:
- 100.00A
- Adjustable pick-up value current / for G-tripping / with standard characteristic / initial value:
- 20.00A
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / Full-scale value:
- 1200
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / initial value:
- 150
- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value:
- 100
- Adjustable pick-up value current / of the short-time delayed short-circuit release / Full-scale value:
- 1000.00A
- Adjustable pick-up value current / of the short-time delayed short-circuit release / initial value:
- 60.00A
- Connection:
- punched copper bar without any lug
- Current Rating:
- 100 A
- Frame:
- 250A
- Height:
- 198
- Interrupt Rating:
- WITH 100kA INTERRUPTION RATING
- Length:
- 4.13
- Maximum short-circuit current breaking capacity (Icu) / at 240 V / rated value:
- 150
- Maximum short-circuit current breaking capacity (Icu) / at 415 V / rated value:
- 110
- Mounting type:
- fixedmounting
- Number Of Poles:
- 3
- Operational short-circuit current breaking capacity (Ics) / at 240 V / rated value:
- 150kA
- Operational short-circuit current breaking capacity (Ics) / at 690 V / rated value:
- 3
- Product variations:
- Advancedapplications
- Reference code / acc. to DIN EN 61346-2:
- Q
- Setting range / Overload function L / IR can be switched on:
- No
- Standard:
- UL
- Sub Brand:
- 3VA
- Total disconnection time / for G-tripping / with standard characteristic / Full-scale value:
- 0.80s
- Total disconnection time / for G-tripping / with standard characteristic / initial value:
- 0.05s
- Trip Type:
- ETU860 LSIG LCD
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 105
