Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$2,269.13 / EA
manufacturer discounts
learn about discounts
- $2,034.40 for $1,500.00+
- $1,956.15 for $2,500.00+
- $1,877.90 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

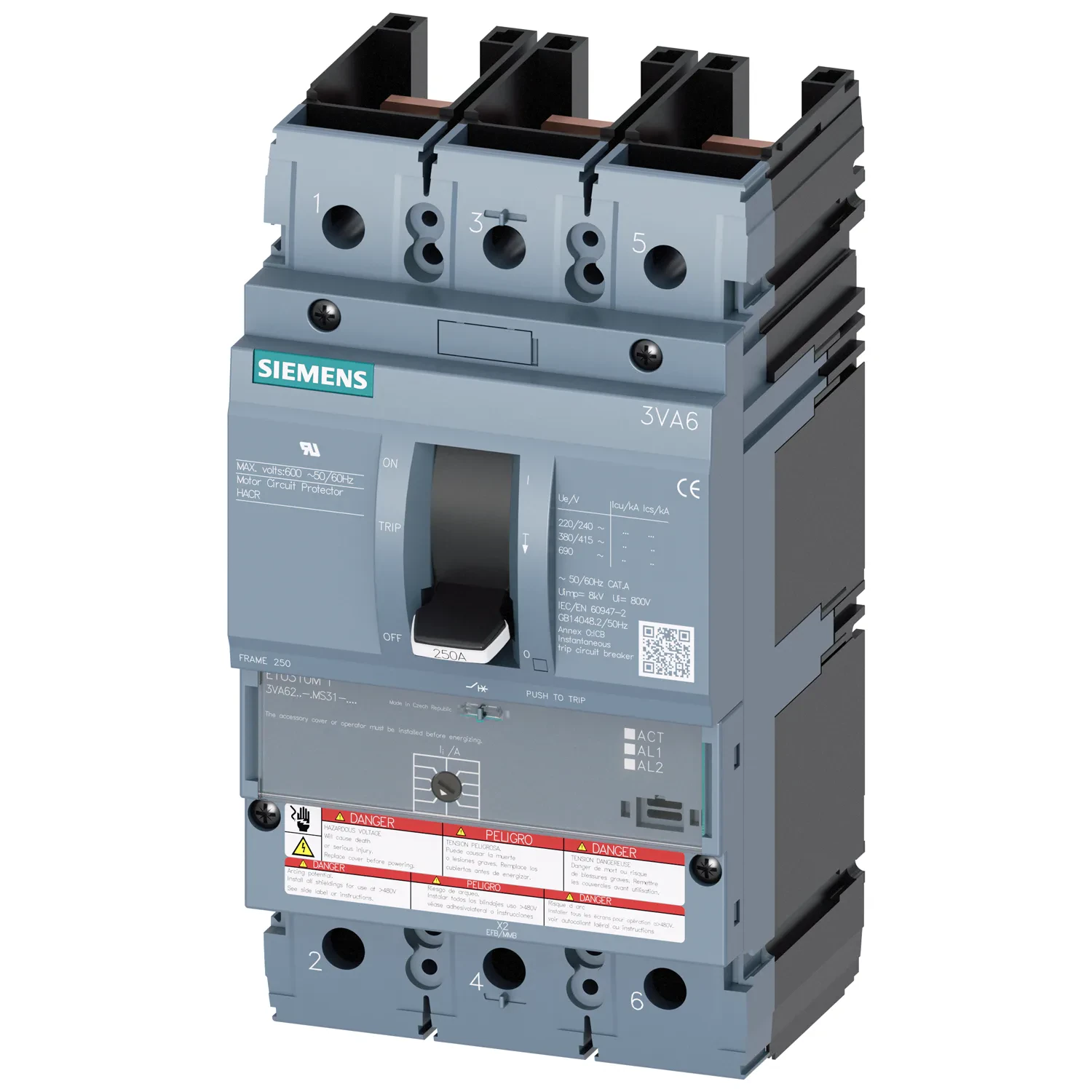

SIEMENS LOW VOLTAGE 3VA UL MOTOR CIRCUIT PROTECTOR WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME. 110A 3-POLE (100KA AT 480V). ETU310M TRIP UNIT WITH ADJUSTABLE Ii. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOTOR CIRCUIT PROTECTOR WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME. 110A 3-POLE (100KA AT 480V). ETU310M TRIP UNIT WITH ADJUSTABLE Ii. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
150
- UPC
- 804766302824
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Ambient temperature / during storage / minimum:
- -40
- Connection:
- punched copper bar without any lug
- Current Rating:
- 110 A
- Diken-export / tripping characteristics / Upper tolerance band:
- AK_3VA6_2_110A_ETU310M_C_oT
- Electrical endurance (switching cycles) / at AC-1 / at 380/415 V / at 50/60 Hz:
- 6000
- Electrical endurance (switching cycles) / at AC-1 / at 690 V / at 50/60 Hz:
- 3000
- Frame:
- 250A
- Height:
- 198
- Length:
- 4.13
- Mechanical service life (switching cycles) / typical:
- 20000
- N-Leiter Schutz / einstellbar:
- Yes
- N-Leiterschutz N / Einstellparameter Strom InN / Einheit der Werteliste:
- Settingtable
- N-Leiterschutz N / Einstellparameter Strom InN / Format der Werteliste:
- xIn
- N-leiter-schutz / Ein-/Ausschaltbar:
- No
- Number Of Poles:
- 3
- Product function / Ground fault protection:
- No
- Setting range / Overload function L / I**4tI**2t can be changed over:
- No
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor:
- xIn
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor of grading:
- Unit
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / Grading:
- 3;4;5;6;8;10;12;13;14;15
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / can be switched on/off:
- No
- Setting range / ground fault function G / lg function selectable:
- No
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU310M ELECTRONIC MOTOR CIRCUIT PROTECTOR ADJUSTMENT KNOB
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 105
- i-trip unit / can be switched ON/OFF:
- No
- version / Overcurrent release / Adjustability / Short-circuit function, instantaneous I:
- Yes
