Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$2,269.13 / EA
manufacturer discounts
learn about discounts
- $2,034.40 for $1,500.00+
- $1,956.15 for $2,500.00+
- $1,877.90 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

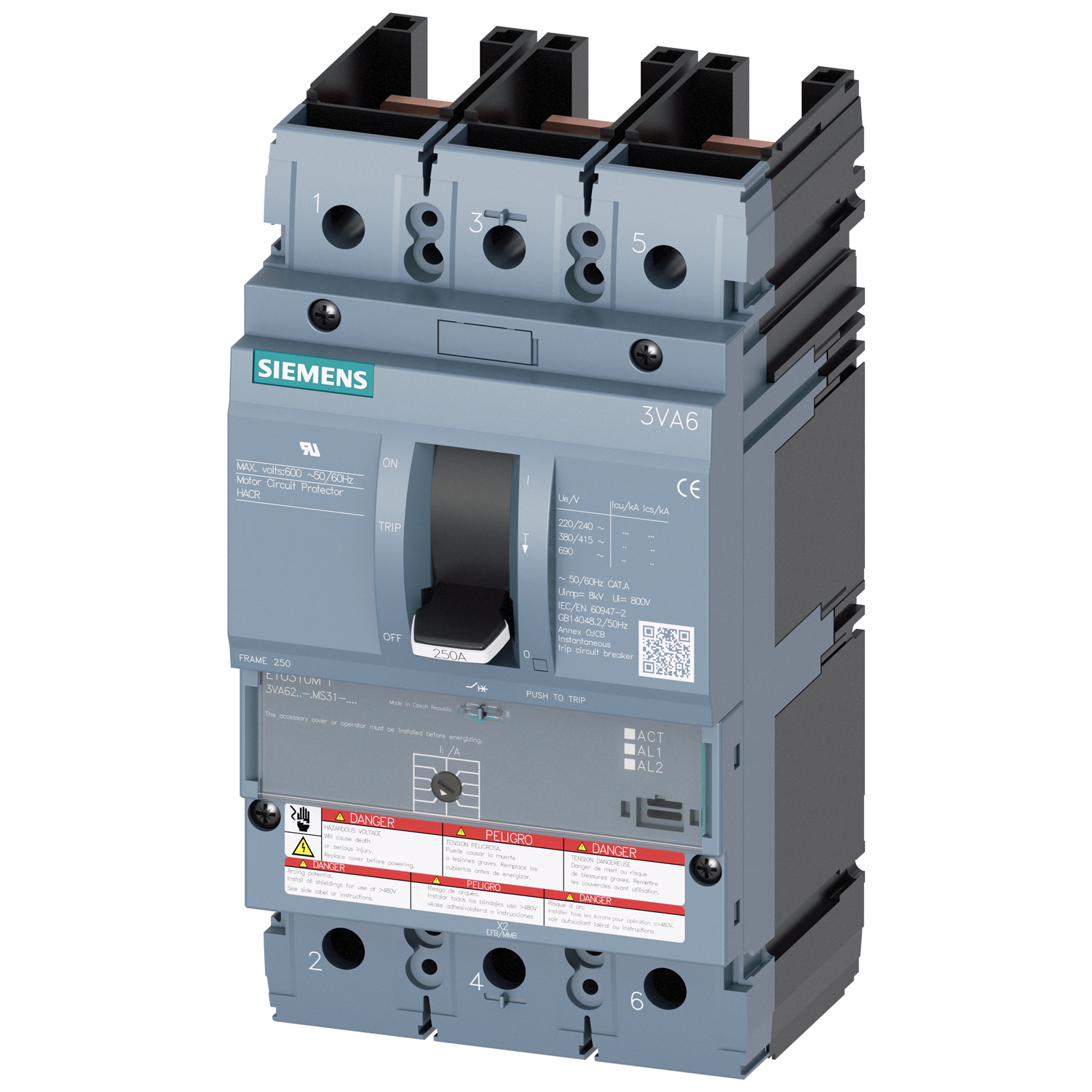

SIEMENS LOW VOLTAGE 3VA UL MOTOR CIRCUIT PROTECTOR WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME. 200A 3-POLE (100KA AT 480V). ETU310M TRIP UNIT WITH ADJUSTABLE Ii. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOTOR CIRCUIT PROTECTOR WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME. 200A 3-POLE (100KA AT 480V). ETU310M TRIP UNIT WITH ADJUSTABLE Ii. SPECIAL FEATURES WITHOUT LUGS.. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
150
- UPC
- 804766308789
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Connection:
- punched copper bar without any lug
- Continuous current / rated value:
- 200
- Continuous current / rated value / maximum:
- 250.0A
- Design of the operating mechanism:
- togglehandle
- Design of the overcurrent release:
- ETU310M
- Design of the product:
- Starterprotection
- Frame:
- 250A
- Height:
- 198
- Length:
- 4.13
- Number Of Poles:
- 3
- Operating current / at 40 °C / rated value:
- 200
- Operating current / at 45 °C / rated value:
- 200
- Operating current / at 50 °C / rated value:
- 200
- Operating current / at 70 °C / rated value:
- 200
- Overcurrent release / Protective functions:
- I
- Power loss [W] / maximum:
- 26.9
- Product component / display:
- No
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- CFAR-Y
- Product extension / optional / motor drive:
- Yes
- Product function / Intrinsic device protection:
- Yes
- Product function / communication function:
- No
- Product function / other measurement function:
- No
- Protective function of the overcurrent release:
- I
- Simaris relevant:
- -
- Standard:
- UL
- Sub Brand:
- 3VA
- Suitability for use:
- Starterprotection
- Trip Type:
- ETU310M ELECTRONIC MOTOR CIRCUIT PROTECTOR ADJUSTMENT KNOB
- Type:
- 3VA6
- Type of the driving mechanism / motor drive:
- No
- Voltage Rating:
- 480 V
- Width:
- 105
- circuit-breaker / Design:
- 3VA6
- product brand name:
- SENTRON
