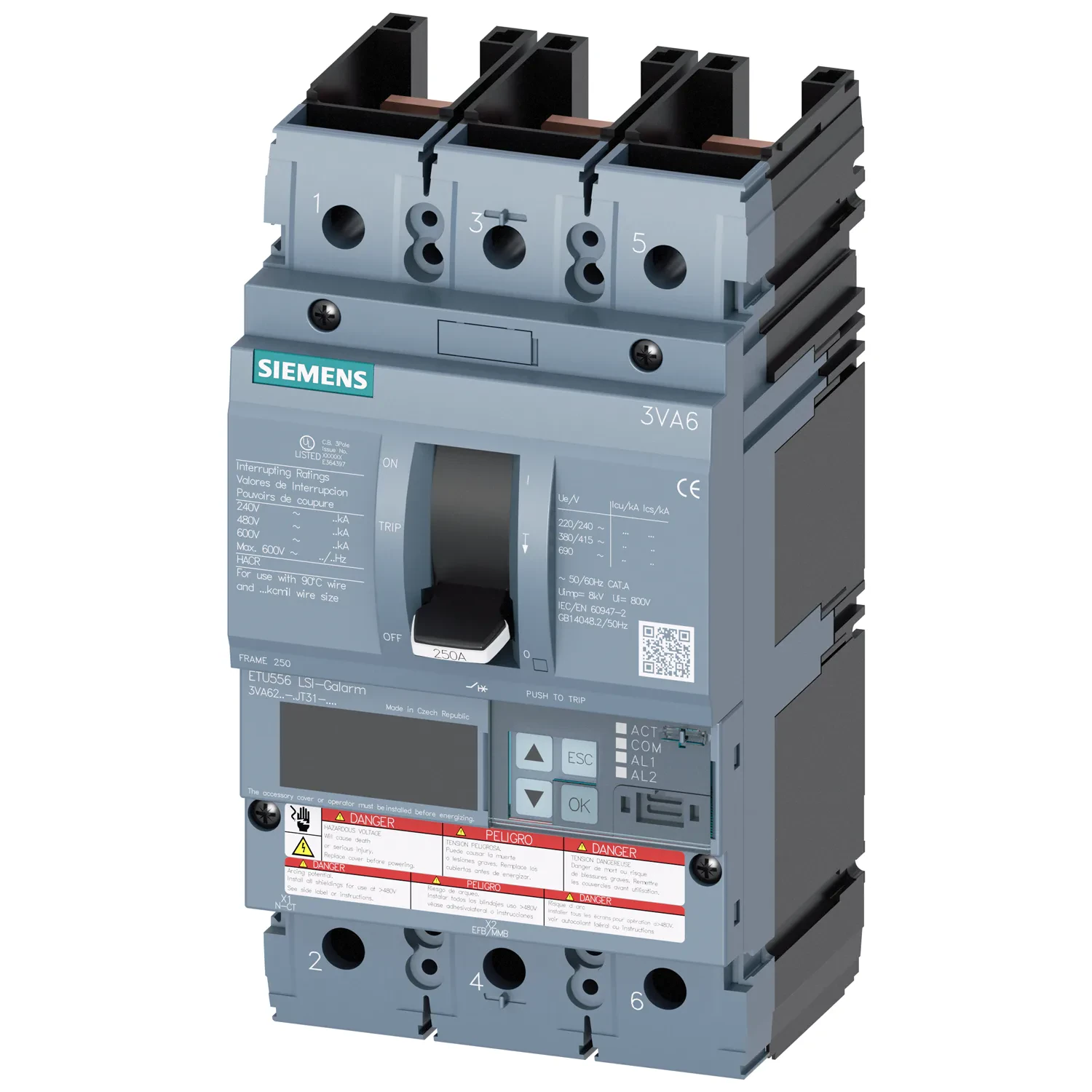

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 250A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU556 TRIP UNIT LCD LSI GROUND ALARM. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6225-7JT31-2AA0

$7,675.49 / EA

manufacturer discounts
learn about discounts

  • $6,881.47 for $1,500.00+
  • $6,616.80 for $2,500.00+
  • $6,352.13 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 250A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU556 TRIP UNIT LCD LSI GROUND ALARM. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 250A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU556 TRIP UNIT LCD LSI GROUND ALARM. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

150

UPC
804766311734
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
3
Type:
3VA6
Voltage Rating:
480 V
Breaking capacity current / at AC / at 240 V / acc. to UL 489 / rated value:
200
Breaking capacity current / at AC / at 480 V / acc. to UL 489 / rated value:
100
Breaking capacity current / at AC / at 600 Y/347 V / acc. to UL 489 / rated value:
35
Certificate of suitability / as approval for NAVAL (no combat vessels) / Supplement SB:
Yes
Connection:
punched copper bar without any lug
Current Rating:
250 A
Design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type):
Yes
Electrical endurance (switching cycles) / at 480 V / at 50/60 Hz:
6000
Electrical endurance (switching cycles) / at 600 V / at 50/60 Hz:
7500
Frame:
250A
Height:
7.8 in
Interrupt Rating:
WITH 100kA INTERRUPTION RATING
Length:
4.13
Marking / of circuit breaker / acc. to UL 489 / 100%-rated breaker:
Yes
Number Of Poles:
3
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / max:
0.8
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / minimum:
0.05
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (on) / max:
0.8
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (on) / minimum:
0.05
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / minimum:
0.2
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / minimum:
0.2
Setting range / Overload function L / Delay time tR / I**2t characteristic curve / min:
0.5
Setting range / Overload function L / Setting current IR / min:
0.4
Setting range / Short-circuit function, instantaneous I / Setting current Ii / minimum:
1.5
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / max:
0.5
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / min:
0.05
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / max:
0.5
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / min:
0.05
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / min:
0.6
Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / min:
0.6
Standard:
UL
Sub Brand:
3VA
Trip Type:
ETU556 LSI(G) LCD
Type:
3VA6
Voltage Rating:
480 V
Width:
4.21
