Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$6,611.65 / EA
manufacturer discounts
learn about discounts
- $5,927.69 for $1,500.00+
- $5,699.70 for $2,500.00+
- $5,471.71 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

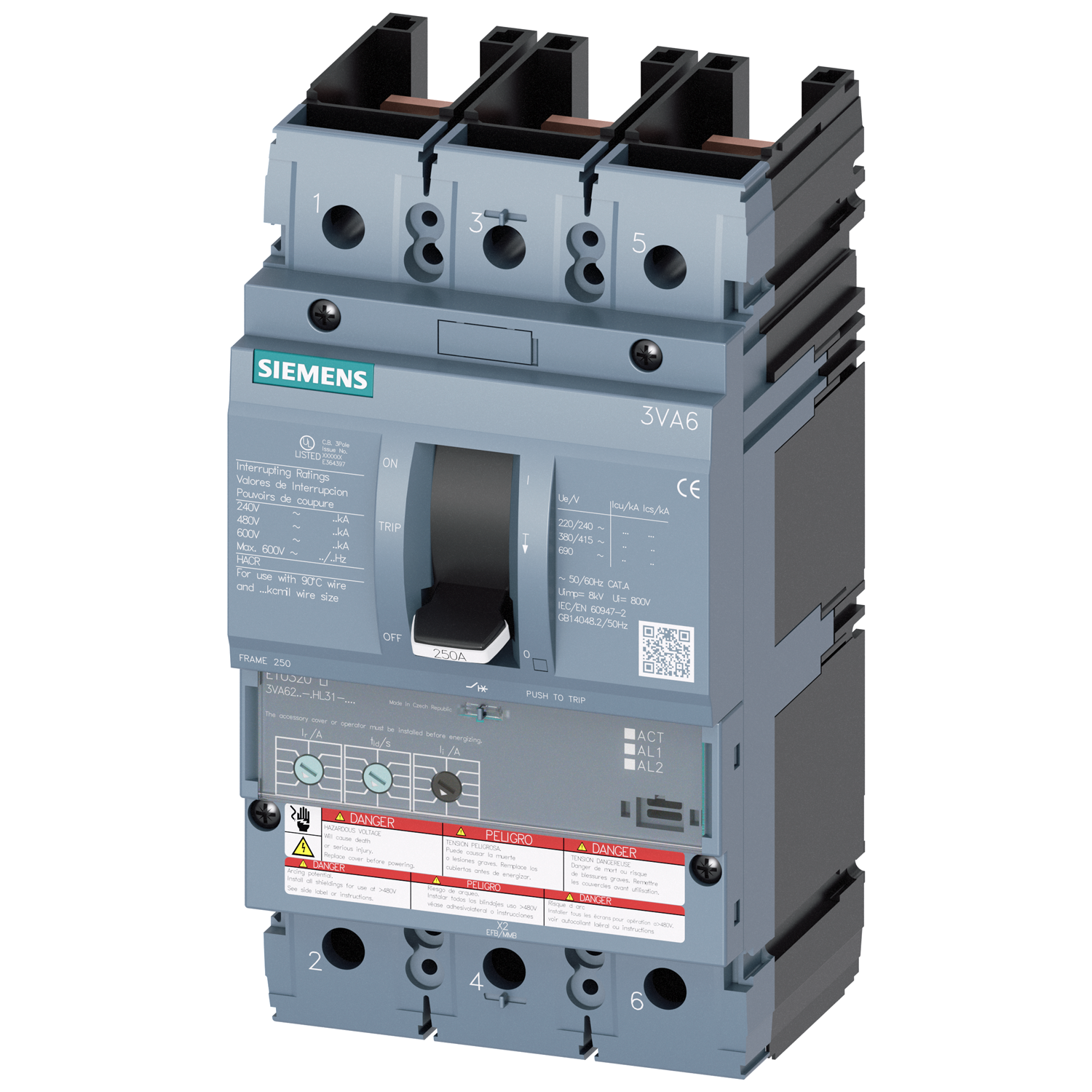

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
150
- UPC
- 804766309137
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Connection:
- punched copper bar without any lug
- Continuous current / rated value:
- 250
- Continuous current / rated value / maximum:
- 250.0A
- Current Rating:
- 250 A
- Design of the operating mechanism:
- togglehandle
- Design of the overcurrent release:
- ETU320
- Design of the product:
- Systemprotection
- Frame:
- 250A
- Height:
- 7.8 in
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 4.13
- Number Of Poles:
- 3
- Operating current / at 40 °C / rated value:
- 250
- Operating current / at 45 °C / rated value:
- 250
- Operating current / at 50 °C / rated value:
- 250
- Operating current / at 70 °C / rated value:
- 250
- Overcurrent release / Protective functions:
- LI
- Product component / display:
- No
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- LFAE-Y
- Product extension / optional / motor drive:
- Yes
- Product function / Intrinsic device protection:
- Yes
- Product function / communication function:
- No
- Product function / other measurement function:
- No
- Protective function of the overcurrent release:
- LI
- Simaris relevant:
- -
- Standard:
- UL
- Sub Brand:
- 3VA
- Suitability for use:
- systemprotection
- Trip Type:
- ETU320 LI ADJUSTMENT KNOB
- Type:
- 3VA6
- Type of the driving mechanism / motor drive:
- No
- Voltage Rating:
- 480 V
- Width:
- 4.21
- circuit-breaker / Design:
- 3VA6
- product brand name:
- SENTRON
45375G
$48.43 /ea
BREAKER-CIRCUIT (50453750)
10712-GRNL
$80.56 /ea
SWITCH,CIRCUIT BREAKER (52040980)
86152-GRNL
$201.84 /ea
SWITCH,CIRCUIT BREAKER (120V 16A S-P) (91861527)
| Product Image |
|
|
|
|---|---|---|---|
|
45375G
BREAKER-CIRCUIT (50453750)
$48.43 / EA
|
10712-GRNL
SWITCH,CIRCUIT BREAKER (52040980)
$80.56 / EA
|
86152-GRNL
SWITCH,CIRCUIT BREAKER (120V 16A S-P) (91861527)
$201.84 / EA
|
|
| Attributed Data | |||
| Add a product to the cart | Show more details | Show more details | Show more details |
Recently Viewed
-
3VA6225-6KP31-0AA0
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM (CLASS H) BREAKING CAPACITY. 250A 3-POLE (22...
See more details -

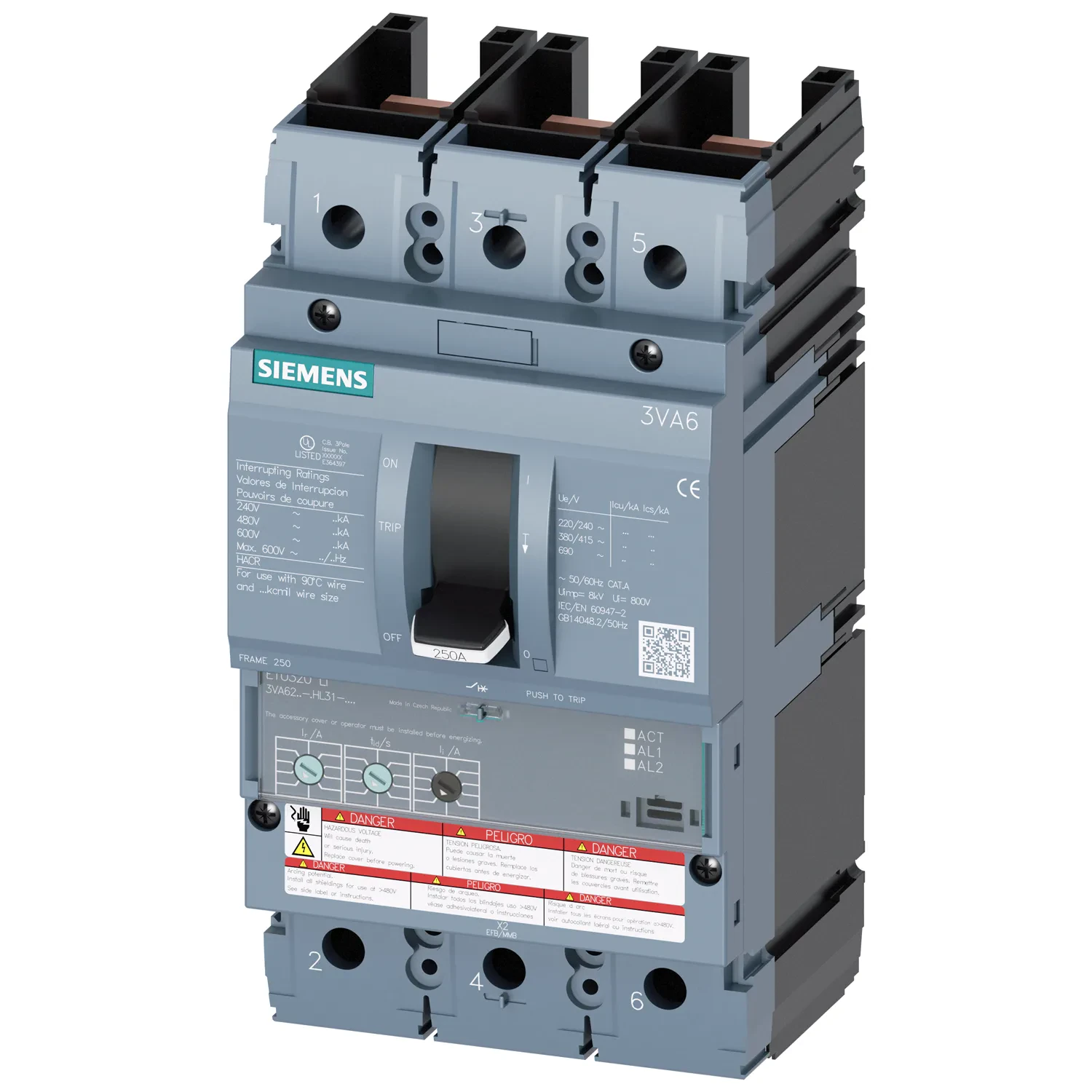

3VA6225-8HL31-2AA0
