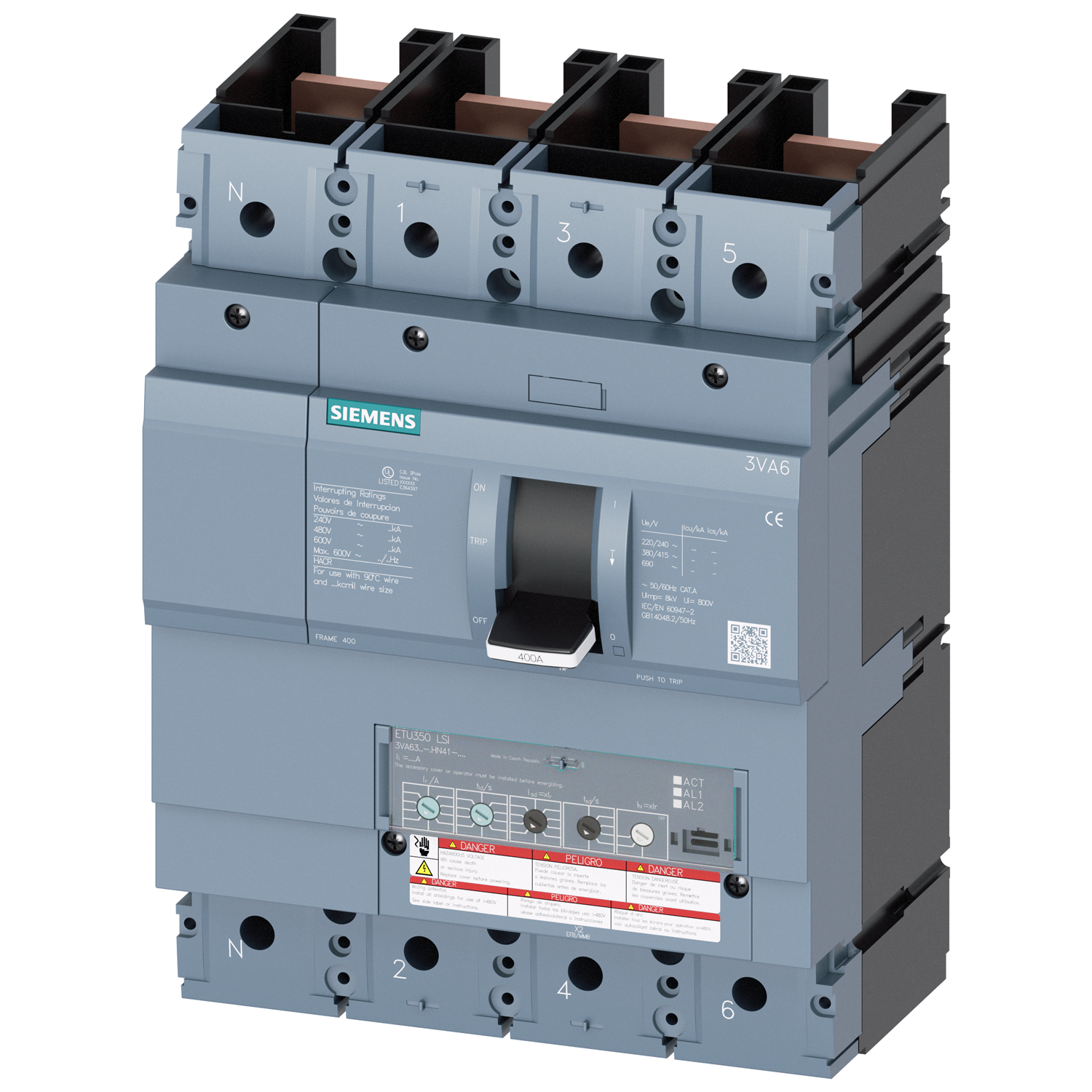

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 250A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6325-7HN41-2AA0

$9,213.82 / EA

manufacturer discounts
learn about discounts

  • $8,260.67 for $1,500.00+
  • $7,942.95 for $2,500.00+
  • $7,625.23 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 250A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 250A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.

150

UPC
804766313998
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
4
Type:
3VA6
Voltage Rating:
480 V
Connection:
punched copper bar without any lug
Continuous current / rated value:
250
Continuous current / rated value / maximum:
400.0A
Current Rating:
250 A
Design of the operating mechanism:
togglehandle
Design of the overcurrent release:
ETU350
Frame:
400A
Ground fault monitoring version:
Without
Height:
248
Insulation voltage / rated value:
600
Interrupt Rating:
WITH 100kA INTERRUPTION RATING
Length:
7.24
Number Of Poles:
4
Operating current / at 40 °C / rated value:
250
Operating current / at 45 °C / rated value:
250
Operating current / at 50 °C / rated value:
250
Operating current / at 65 °C / rated value:
250
Operating current / at 70 °C / rated value:
250
Operating voltage / at AC / at 50/60 Hz / rated value:
600
Overcurrent release / Protective functions:
LSIN
Product component / display:
No
Product extension / optional / motor drive:
Yes
Product feature / for neutral conductors / upgradeable/retrofittable / Short-circuit and overload proof:
No
Product function / Intrinsic device protection:
Yes
Product function / communication function:
No
Product function / other measurement function:
No
Protective function of the overcurrent release:
LSI
Standard:
UL
Sub Brand:
3VA
Suitability for use:
systemprotection
Trip Type:
ETU350 LSI ADJUSTMENT KNOB
Type:
3VA6
Type of the driving mechanism / motor drive:
No
Voltage Rating:
480 V
Width:
184
circuit-breaker / Design:
3VA6
