$14,557.01 / EA
manufacturer discounts
learn about discounts
- $13,051.12 for $1,500.00+
- $12,549.15 for $2,500.00+
- $12,047.18 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

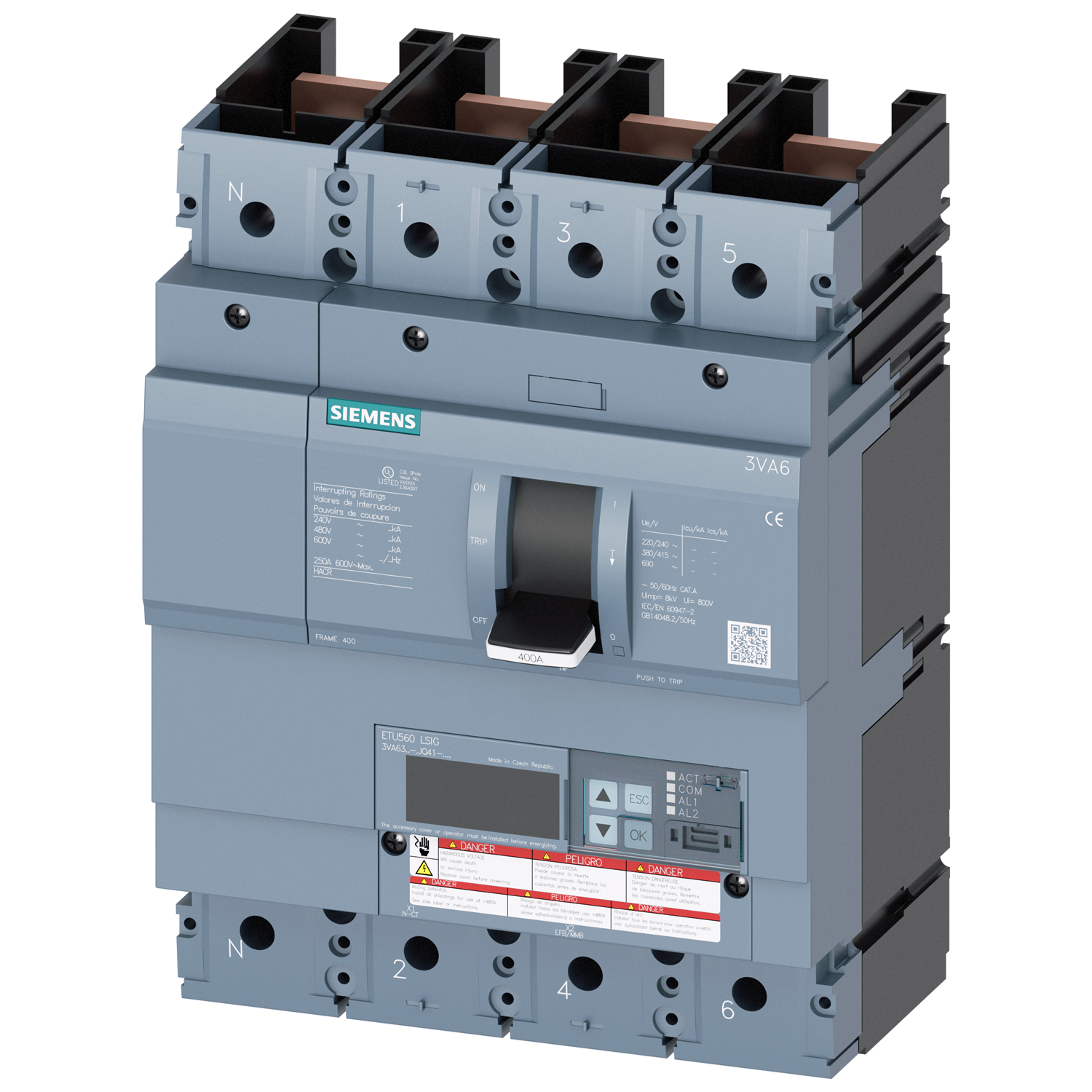

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU560 TRIP UNIT LCD LSIG. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU560 TRIP UNIT LCD LSIG. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
150
- UPC
- 804766313561
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 4
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Connection:
- punched copper bar without any lug
- Continuous current / rated value:
- 250
- Continuous current / rated value / maximum:
- 400.0A
- Current Rating:
- 250 A
- Design of the operating mechanism:
- togglehandle
- Design of the overcurrent release:
- ETU560
- Design of the product:
- Systemprotection
- Frame:
- 400A
- Height:
- 248
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 7.24
- Number Of Poles:
- 4
- Operating current / at 40 °C / rated value:
- 250
- Operating current / at 45 °C / rated value:
- 250
- Operating current / at 50 °C / rated value:
- 250
- Operating current / at 70 °C / rated value:
- 250
- Overcurrent release / Protective functions:
- LSIGN
- Product component / display:
- Yes
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- LJAE
- Product extension / optional / motor drive:
- Yes
- Product function / Intrinsic device protection:
- Yes
- Product function / communication function:
- Yes
- Product function / other measurement function:
- No
- Protective function of the overcurrent release:
- LSIG
- Simaris relevant:
- -
- Standard:
- UL
- Sub Brand:
- 3VA
- Suitability for use:
- systemprotection
- Trip Type:
- ETU560 LSIG LCD
- Type:
- 3VA6
- Type of the driving mechanism / motor drive:
- No
- Voltage Rating:
- 480 V
- Width:
- 184
- circuit-breaker / Design:
- 3VA6
- product brand name:
- SENTRON
