3VA6440-7JP41-2AA0
SKU: 3VA6440-7JP41-2AA0
MPN: 3VA6440-7JP41-2AA0
Key specs
View all- Number Of Poles
- 4
- Type
- 3VA6
- Voltage Rating
- 480 V
Description
Product overview

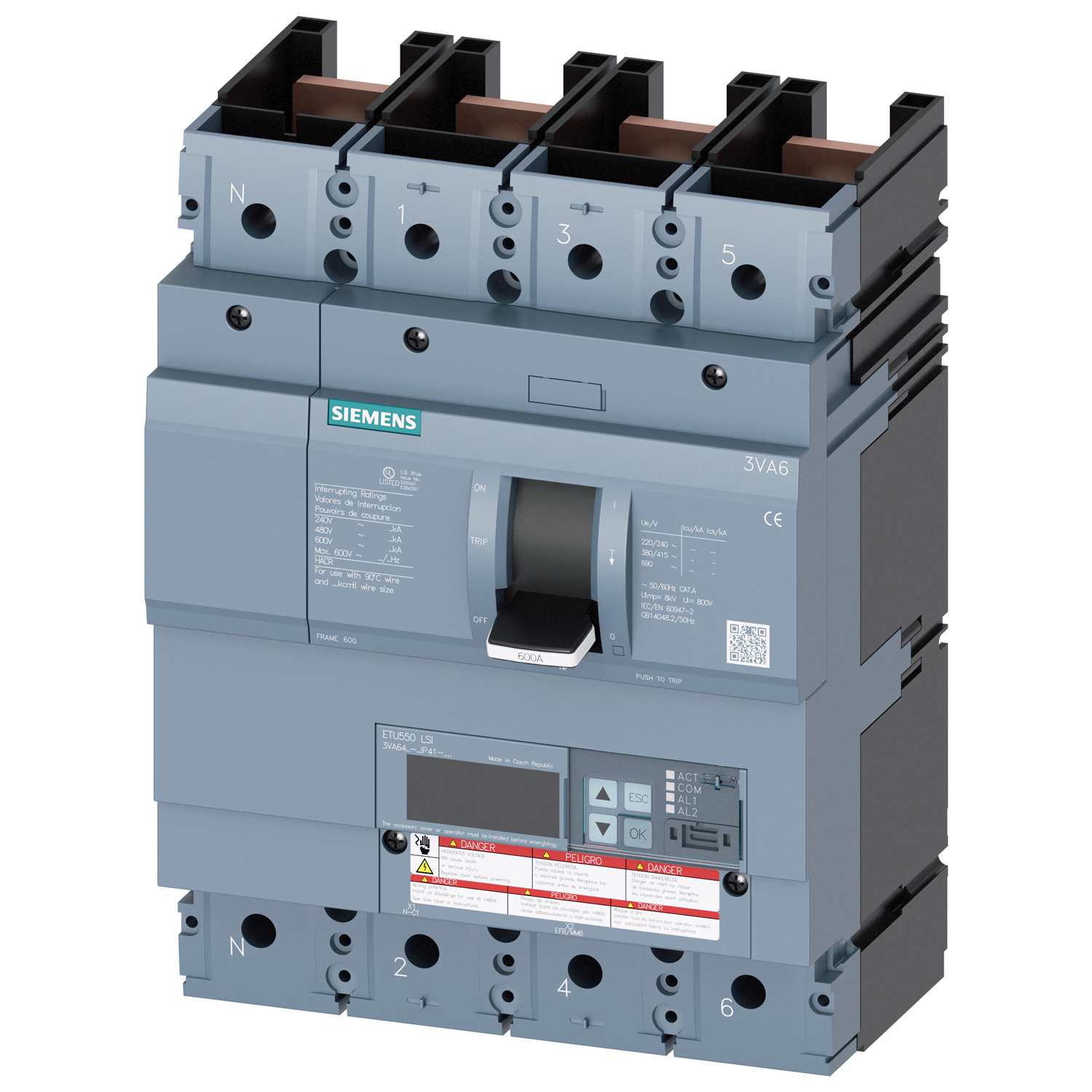

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 400A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU550 TRIP UNIT LCD LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 400A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU550 TRIP UNIT LCD LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3VA6440-7JP41-2AA0 BRKR 3VA64 4
- Invoice description
- BRKR 3VA64 4P 400A 100KA ETU5-LSI 100
Specifications
- UPC
- 804766316609
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles
- 4
- Type
- 3VA6
- Voltage Rating
- 480 V
- Adjustable delay time / of S-trip / with I2t characteristic / initial value
- 0.05s
- Adjustable delay time / of S-trip / with standard characteristic / initial value
- 0.05s
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / Full-scale value
- 4800
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / initial value
- 600
- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value
- 400
- Adjustable pick-up value current / of the current-dependent overload release / initial value
- 160
- Adjustable pick-up value current / of the short-time delayed short-circuit release / Full-scale value
- 4000.00A
- Adjustable pick-up value current / of the short-time delayed short-circuit release / initial value
- 240.00A
- Connection
- punched copper bar without any lug
- Continuous current / rated value / maximum
- 600.0A
- Current Rating
- 400A
- Frame
- 600A
- Ground fault monitoring version
- Without
- Height
- 248
- Insulation voltage / rated value
- 600
- Interrupt Rating
- WITH 100kA INTERRUPTION RATING
- Length
- 7.24
- Maximum short-circuit current breaking capacity (Icu) / at 240 V / rated value
- 150
- Maximum short-circuit current breaking capacity (Icu) / at 415 V / rated value
- 110
- Number Of Poles
- 4
- Operating current / at 40 °C / rated value
- 400
- Operating current / at 45 °C / rated value
- 400
- Operating current / at 65 °C / rated value
- 400
- Operating voltage / at AC / at 50/60 Hz / rated value
- 600
- Operational short-circuit current breaking capacity (Ics) / at 240 V / rated value
- 150kA
- Operational short-circuit current breaking capacity (Ics) / at 415 V / rated value
- 110kA
- Operational short-circuit current breaking capacity (Ics) / at 690 V / rated value
- 6
- Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole
- 23.33
- Product feature / for neutral conductors / upgradeable/retrofittable / Short-circuit and overload proof
- No
- Standard
- UL
- Sub Brand
- 3VA
- Switching capacity class of the circuit breaker
- C
- Trip Type
- ETU550 LSI LCD
- Type
- 3VA6
- Voltage Rating
- 480 V
- Width
- 184
