3VA6460-6KT31-0AA0

SKU: 3VA6460-6KT31-0AA0

MPN: 3VA6460-6KT31-0AA0

Purchase options

$8,704.35 / EA

manufacturer discounts
learn about discounts

$7,803.90 for $1,500.00+
$7,503.75 for $2,500.00+
$7,203.60 for $3,500.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Number Of Poles: 3
Type: 3VA6
Voltage Rating: 480 V

Description

Product overview

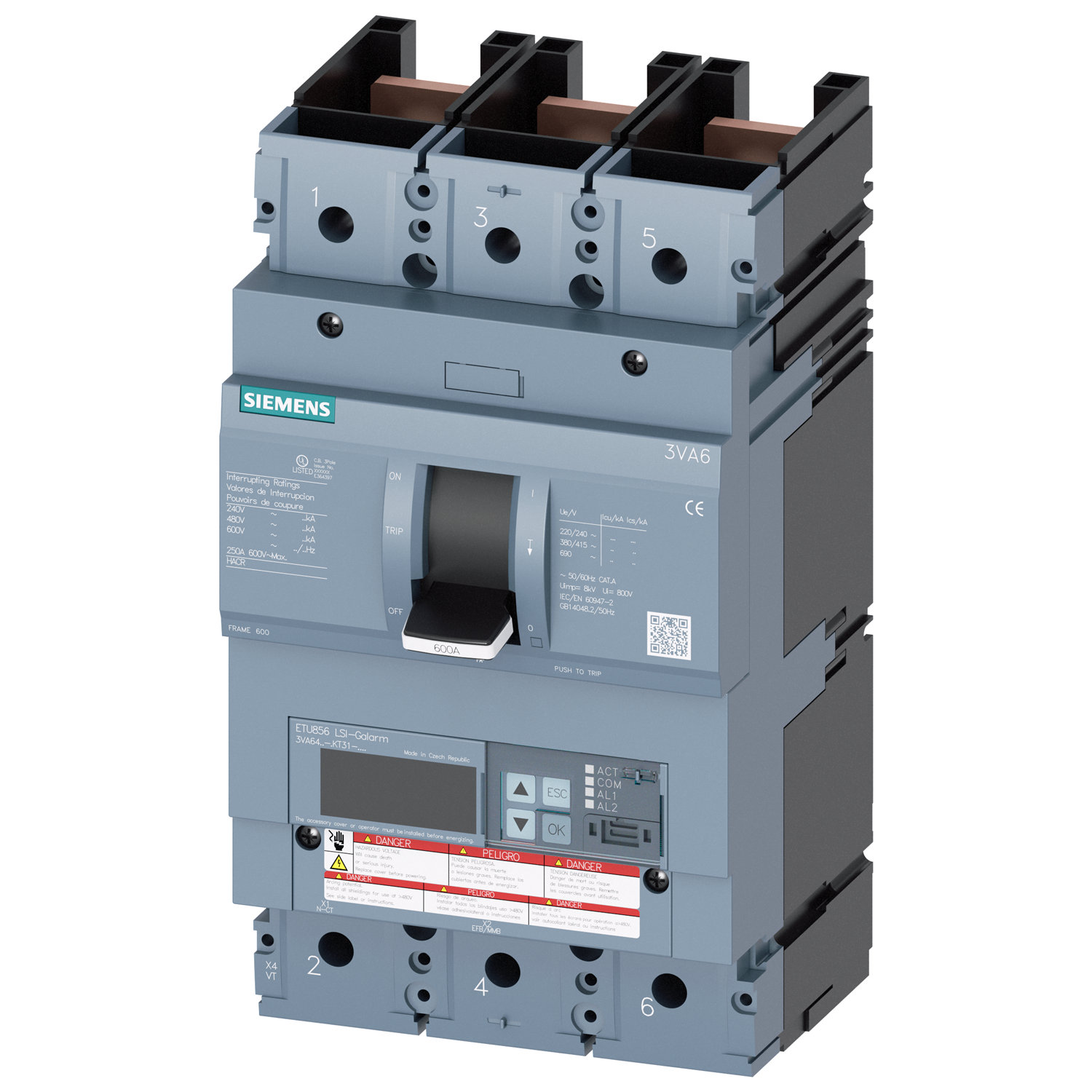

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH HIGH (CLASS H) BREAKING CAPACITY. 600A 3-POLE (22KAIC AT 600V) (65KAIC AT 480V). ETU856 TRIP UNIT LCD LSI GROUNG ALARM WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A 3VA6460-6KT31-0AA0 BRKR 3VA64 3
Invoice description: BRKR 3VA64 3P 600A 65KA ETU8-LSIA

Specifications

UPC: 804766317774

UNSPSC: 39121601

Country of Origin: CZ

Number Of Poles: 3

Type: 3VA6

Voltage Rating: 480 V

Connection: punched copper bar without any lug

Current Rating: 600A

Frame: 600A

Height: 248

Interrupt Rating: WITH 65kA INTERRUPTION RATING

Length: 5.43

Number Of Poles: 3

Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Factor: s

Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Factor of grading: Settingtable

Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Grading: 0.05-0.8;0.01

Setting range / Earth fault function G / Delay time tG, tripped / I**2t (on) / Grading: 0.05-0.8;0.01

Setting range / Earth fault function G / Ig-function can be switched on/off: Yes

Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Factor: xIn

Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Factor of grading: Unit

Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Grading: 0.2-1;0

Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / Factor: xIn

Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / Factor of grading: Unit

Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / Grading: 0.2-1;0

Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor: xIn

Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor of grading: Unit

Setting range / Short-circuit function, instantaneous I / Setting current Ii / Grading: 1.5-9;0

Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Factor: s

Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Grading: 0.05-0.5;0.01

Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Factor: s

Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Grading: 0.05-0.5;0.01

Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor of grading: Unit

Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Grading: 0.6-9;0

Setting range / ground fault function G / lg function selectable: Yes

Standard: UL

Sub Brand: 3VA

Trip Type: ETU856 LSI(G) LCD

Type: 3VA6

Voltage Rating: 480 V

Width: 138

i-trip unit / can be switched ON/OFF: No

version / Overcurrent release / Adjustability / Short-circuit function, instantaneous I: Yes
