3VA6460-7KM31-0AA0
SKU: 3VA6460-7KM31-0AA0
MPN: 3VA6460-7KM31-0AA0
Key specs
View all- Number Of Poles
- 3
- Type
- 3VA6
- Voltage Rating
- 480 V
Description
Product overview

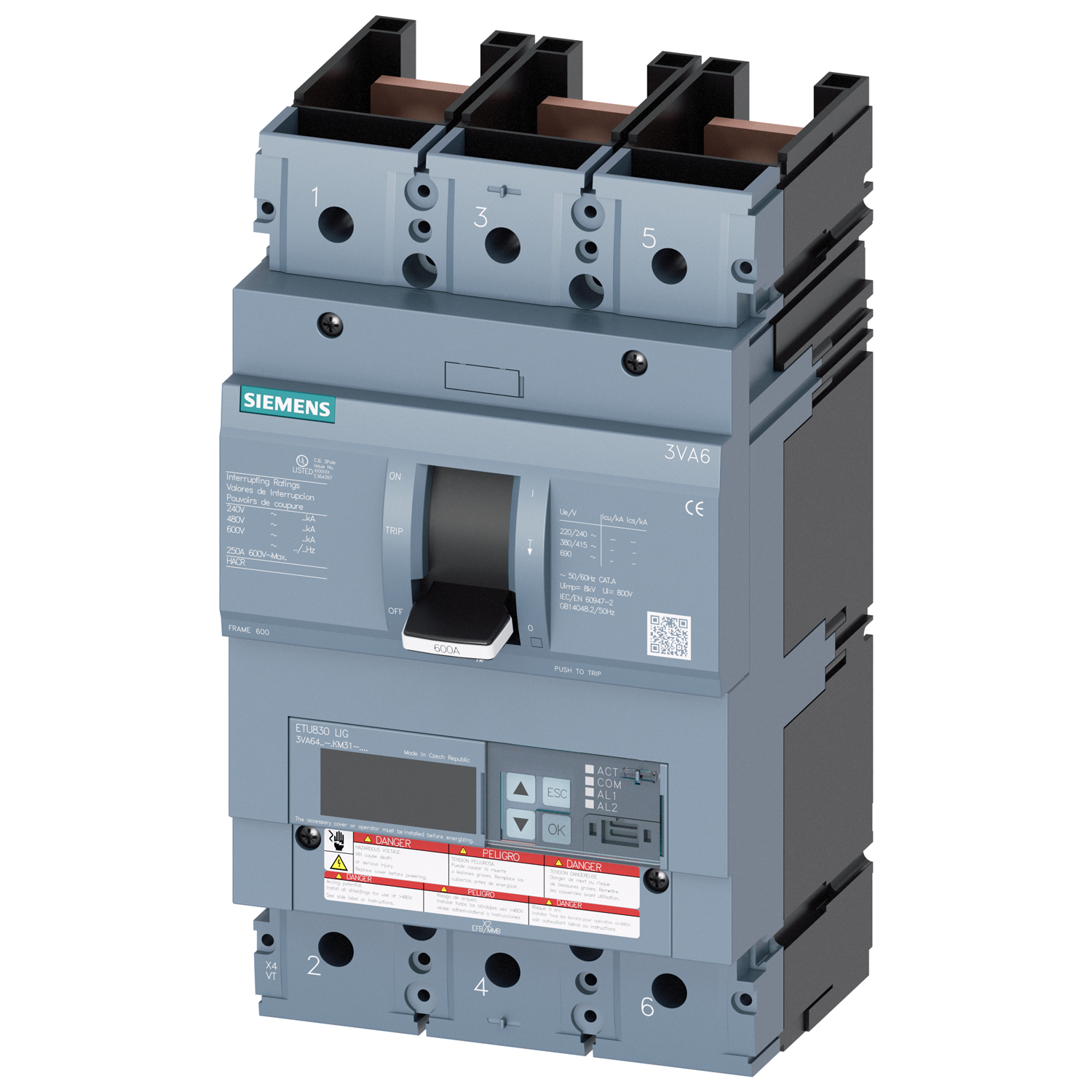

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU830 TRIP UNIT LCD LIG WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU830 TRIP UNIT LCD LIG WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3VA6460-7KM31-0AA0 BRKR 3VA64 3
- Invoice description
- BRKR 3VA64 3P 600A 100KA ETU8-LIG
Specifications
- UPC
- 804766315558
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles
- 3
- Type
- 3VA6
- Voltage Rating
- 480 V
- Adjustable pick-up value current / for G-tripping / with standard characteristic / Full-scale value
- 600.00A
- Adjustable pick-up value current / for G-tripping / with standard characteristic / initial value
- 120.00A
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / initial value
- 900
- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value
- 600
- Ambient temperature / during operation / maximum
- 70
- Ambient temperature / during operation / minimum
- -25
- Ambient temperature / during storage / maximum
- 80
- Arrangement of electrical connectors / for main current circuit
- Withoutconnection
- Connection
- punched copper bar without any lug
- Current Rating
- 600A
- Electrical endurance (switching cycles) / at AC-1 / at 380/415 V / at 50/60 Hz
- 4000
- Electrical endurance (switching cycles) / at AC-1 / at 690 V / at 50/60 Hz
- 2500
- Frame
- 600A
- Height
- 248
- Interrupt Rating
- WITH 100kA INTERRUPTION RATING
- Length
- 5.43
- Mounting type
- fixedmounting
- Number Of Poles
- 3
- Product variations
- Advancedapplications
- Protection class IP
- IP40
- Protection class IP / on the front
- IP40
- Reference code / acc. to DIN EN 61346-2
- Q
- Reference code / acc. to DIN EN 81346-2
- Q
- Setting range / Overload function L / IR can be switched on
- No
- Standard
- UL
- Sub Brand
- 3VA
- Total disconnection time / for G-tripping / with standard characteristic / Full-scale value
- 0.80s
- Total disconnection time / for G-tripping / with standard characteristic / initial value
- 0.05s
- Trip Type
- ETU830 LIG LCD
- Type
- 3VA6
- Type of electrical connection / for main current circuit
- Without
- Voltage Rating
- 480 V
- Width
- 138
