441-2
SKU: 441-2
MPN: 441-2
Key specs
View all- Material
- Feeding Sheave for 2" conduit
- Type
- Sheave Assembly
Description
Product overview

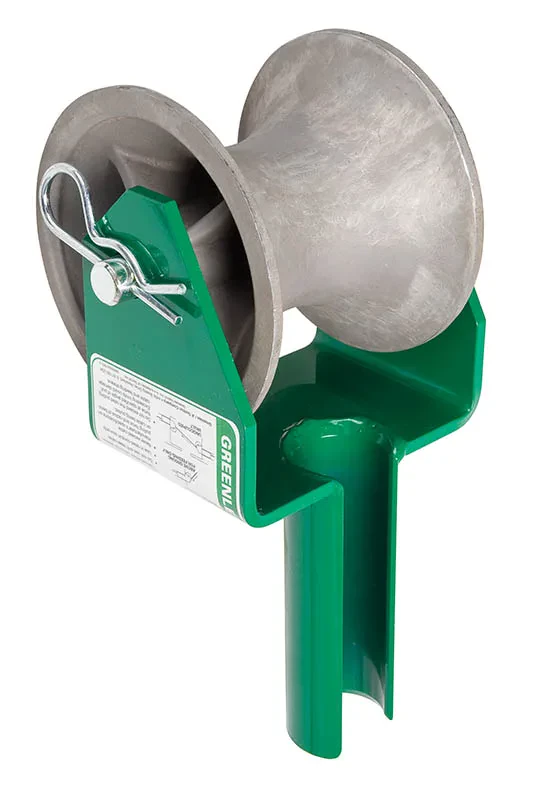

Feeding Sheave for 2" Conduit. Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave. 5" (127.0 mm) wide aluminum alloy sheave with self-lubricating bearings. Split tube for easy removal after cable is installed.
Feeding Sheave for 2" Conduit. Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave. 5" (127.0 mm) wide aluminum alloy sheave with self-lubricating bearings. Split tube for easy removal after cable is installed.
Manufacturer highlights
Additional manufacturer notes
- Feed description
- GRN 441-2 2" CABLE FEEDING SHEAVE
- Label description
- 2" CABLE FEEDING SHEAVE
Specifications
- UPC
- 783310301837
- UNSPSC
- 31171804
- Country of Origin
- US
- Material
- Feeding Sheave for 2" conduit
- Type
- Sheave Assembly
- Capacity
- 1750.000 LB (7.700 KN) At 15 DEG, 900.000 LB (4.000 KN) At 30 DEG, 650.000 LB (2.800 KN) At 45 DEG, 500.000 LB (2.200 KN) At 60 DEG, 450.000 LB (2.000 KN) At 75 DEG, 450.000 LB (2.000 KN) At 90 DEG
- Includes
- 25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
- Keyway
- None
- Material
- Feeding Sheave for 2" conduit
- Outside Diameter
- 6 in
- Pitch Diameter
- Between 3.00" and 6.00"
- Standard
- Feeding Sheave for 2" conduit
- Type
- Sheave Assembly
- Manufacturer keywords
- 441-2,30183
