Feeding Sheave for 3

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

441-3

Manufacturer
Greenlee Textron

$587.74 / EA

manufacturer discounts
learn about discounts

  • $510.73 for $500.00+
  • $486.41 for $1,000.00+
  • $470.19 for $2,000.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

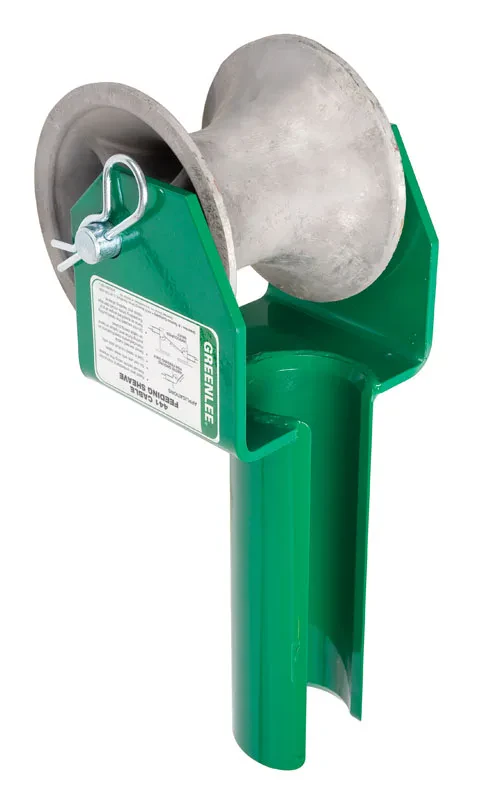

Feeding Sheave for 3" Conduit. Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave. 5" (127.0 mm) wide aluminum alloy sheave with self-lubricating bearings. Split tube for easy removal after cable is installed.

Feeding Sheave for 3" Conduit. Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave. 5" (127.0 mm) wide aluminum alloy sheave with self-lubricating bearings. Split tube for easy removal after cable is installed.

150

UPC
783310301882
UNSPSC
31171804
Country of Origin
US
Material:
Feeding Sheave for 3" conduit
Type:
Sheave Assembly
Capacity:
6050.000 LB (26.900 KN) At 15DEG, 3150.000 LB (14.000 KN) At 30 DEG, 2200.000 LB (9.700 KN) At 45 DEG, 1800.000 LB (8.000 KN) At 60 DEG, 1600.000 LB(7.100 KN) At 75 DEG, 1550.000 LB (6.800 KN) At 90 DEG
Includes:
25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
Keyway:
None
Material:
Feeding Sheave for 3" conduit
Outside Diameter:
6 in
Pitch Diameter:
Between 3.00" and 6.00"
Standard:
Feeding Sheave for 3" conduit
Type:
Sheave Assembly
