$700.38 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

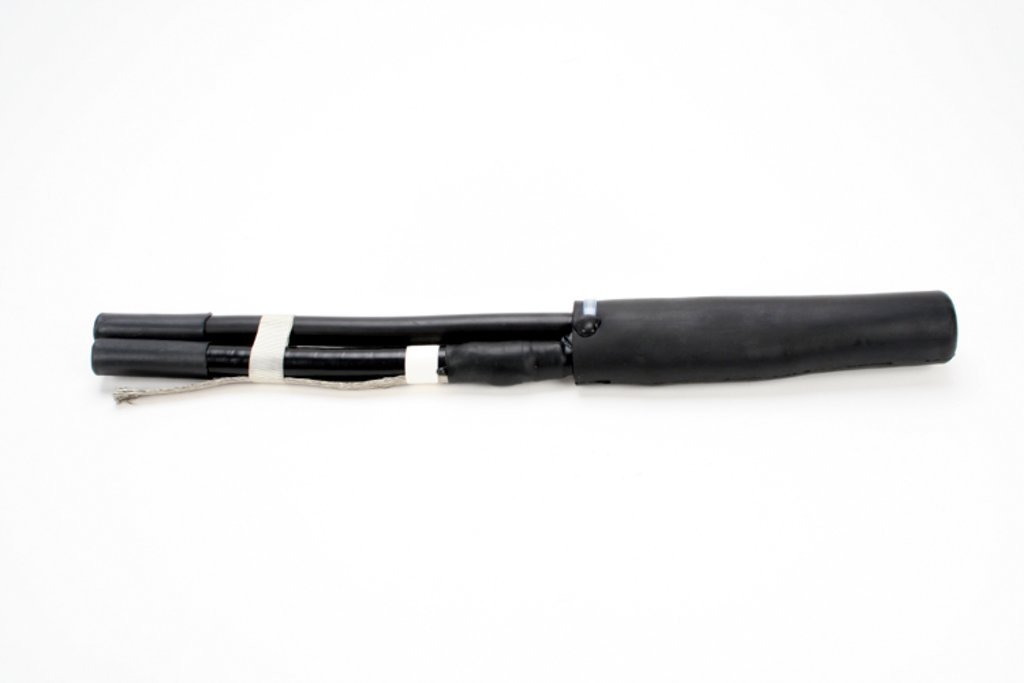

3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cable’s electri...
3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cable’s electrical stress control.These kits are designed to be used with copper compression lugs. After being crimped onto the cables, the lugs are bolted together, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlock™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include:• (3) Lug covers • (3) Cold Shrink terminations • (12) Mastic sealing strips • (3) Copper tape strips • (3) Cleaning kits • (6) Tubes of silicone grease • (3) Cold Shrink jacket tubes • (3) Constant force springs • (3) Cable ties • (3) Ground straps • (1) Instruction sheet
150
- Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs
- Perfect for use with shielded and non-shielded cables
- Rated for 5/8 kV applications
- The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage
- Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs
- Perfect for use with shielded and non-shielded cables
- Rated for 5/8 kV applications
- The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage
- UPC
- 051128559512
- UNSPSC
- 39121718
- Country of Origin
- USA
- Color:
- Black
- Type:
- Pigtail
- Voltage Rating:
- 625 V
- Cable Size:
- 8. - 4
- Color:
- Black
- Number Of Cables:
- 3
- Type:
- Pigtail
- Voltage Rating:
- 625 V
CPT-3-1/2-3M
$585.21 /ea
3M™ Cold Shrink Corrosion Protection Kit CPT Series are designed to provide a quick and easy method for protecting bulkhead termination connectors from the corrosive influences of wet and salt-fog installation environments.A CPT series assembly is an open-ended tubular rubber sleeve which is factory expanded and assembled onto a removable core. The core is removed after the assembly has been positioned for installation over a bulkhead terminator connector. Mastic strips are provided for sealing between NPT fitting threads and the enclosure in use (junction box, cabinet, panel board, etc.). CPT insulating sleeves are made of an EPDM rubber that contains no chlorides or sulfers.
| Attributed Data | Included |
|---|---|
| Cable Minimum Outside Diameter | 2.90 in Yes |
| Connector Maximum Installed Length | 13.50 in Yes |
| Connector Maximum Outside Diameter | 6.00 in Yes |
5513A-3/0-CU
$651.20 /ea
The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).
| Attributed Data | Included |
|---|
CPT-3/4-3M
$326.36 /ea
3M™ Cold Shrink Corrosion Protection Kit CPT Series are designed to provide a quick and easy method for protecting bulkhead termination connectors from the corrosive influences of wet and salt-fog installation environments.A CPT series assembly is an open-ended tubular rubber sleeve which is factory expanded and assembled onto a removable core. The core is removed after the assembly has been positioned for installation over a bulkhead terminator connector. Mastic strips are provided for sealing between NPT fitting threads and the enclosure in use (junction box, cabinet, panel board, etc.). CPT insulating sleeves are made of an EPDM rubber that contains no chlorides or sulfers.
| Attributed Data | Included |
|---|---|
| Cable Minimum Outside Diameter | 0.66 in Yes |
| Connector Maximum Installed Length | 4.80 in Yes |
| Connector Maximum Outside Diameter | 1.90 in Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
CPT-3-1/2-3M
3M™ Cold Shrink Corrosion Protection Kit CPT Series are designed to provide a quick and easy method for protecting bulkhead termination connectors from the corrosive influences of wet and salt-fog installation environments.A CPT series assembly is an...
$585.21 / EA
|
5513A-3/0-CU
The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design...
$651.20 / EA
|
CPT-3/4-3M
3M™ Cold Shrink Corrosion Protection Kit CPT Series are designed to provide a quick and easy method for protecting bulkhead termination connectors from the corrosive influences of wet and salt-fog installation environments.A CPT series assembly is an...
$326.36 / EA
|
|
| Attributed Data | |||
| Cable Minimum Outside Diameter | 0.66 in 0.66 in | 2.90 in 2.90 in | |
| Connector Maximum Installed Length | 4.80 in 4.80 in | 13.50 in 13.50 in | |
| Connector Maximum Outside Diameter | 1.90 in 1.90 in | 6.00 in 6.00 in | |
