5525A-250-CU
SKU: 5525A-250-CU
MPN: 5525A-250-CU
Key specs
View all- Type
- Inline
- Voltage Rating
- 25,000/28,000 V
Description
Product overview
3M™ Cold Shrink QS-III Inline Shielded Cable Splices 5524A, 5525A and 5526A Series are inline splices for joining 25/28 kV tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design.
3M™ Cold Shrink QS-III Inline Shielded Cable Splices 5524A, 5525A and 5526A Series are inline splices for joining 25/28 kV tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design.
Manufacturer highlights
The cold shrink splice body is a one-piece molded design made of specially formulated silicone rubbers, while the jacketing is made of EPDM rubber for...
The cold shrink splice body is a one-piece molded design made of specially formulated silicone rubbers, while the jacketing is made of EPDM rubber for its special physical properties. Each splice is high-voltage production tested to ensure reliability. Kits can be ordered with connectors packed in the kit, or the kit and connector can be ordered as separate items. Meets requirements of IEEE 404.Each kit makes one splice.Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
- Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
- Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
- Designed for inline splicing, feeder and distribution circuits, size transition splicing, direct burial installations and submerged locations
- Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 5525A-250-CU 5525A-250-CU QSIII
- Label description

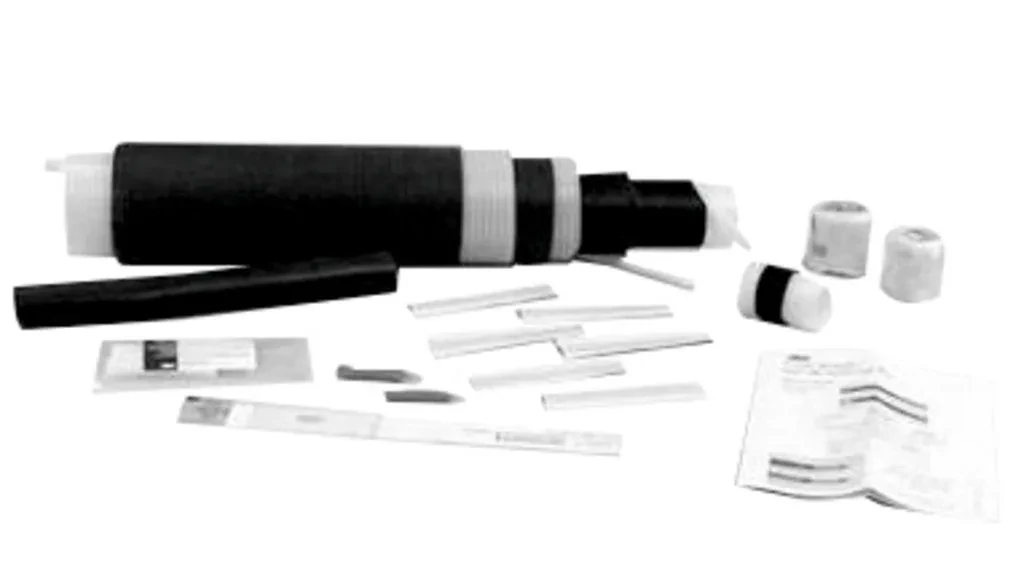

- 3M(TM) Cold Shrink QS-III Splice Kit 5525A-250-CU, 250 kcmil, 1 per case
- Invoice description
- 5525A-250-CU QSIII SPLICE KIT
Specifications
- UPC
- 051128538463
- UNSPSC
- 26121649
- Country of Origin
- USA
- Type
- Inline
- Voltage Rating
- 25,000/28,000 V
- Cable Type
- Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield
- Conductor Material
- Copper; Copper/Aluminum
- Conductor Size
- 250 kcmil
- Connector
- 10009
- Number of Conductors
- 1
- Product Technology
- Cold Shrink
- Type
- Inline
- Voltage Rating
- 25,000/28,000 V
