5553
SKU: 5553
MPN: 5553
Key specs
View all- Type
- Inline Splice
- Voltage Rating
- 625 V
Description
Product overview

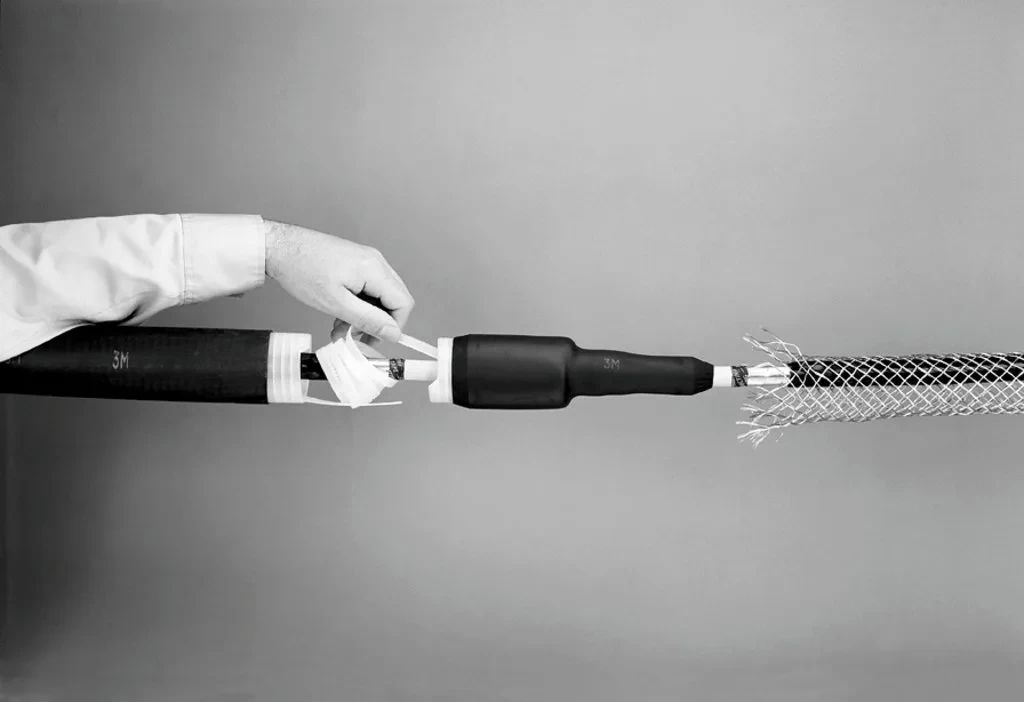

3M™ Cold Shrink Shielded Splice Kit 5550 Series are for splicing 5 kV and 8 kV shielded, solid dielectric, power cables. Meets requirements of IEEE 404. Each kit contains all the materials (except connectors and optional ground strap) required to construct three (3) single conductor splices on Tape Shield, Wire Shield or UniShield® cables. Note: The kit can also be used to splice a shielded to a non-shielded 5/8 kV cable. Note: Cable sizes shown below are for standard insulation thickness. Final...
3M™ Cold Shrink Shielded Splice Kit 5550 Series are for splicing 5 kV and 8 kV shielded, solid dielectric, power cables. Meets requirements of IEEE 404. Each kit contains all the materials (except connectors and optional ground strap) required to construct three (3) single conductor splices on Tape Shield, Wire Shield or UniShield® cables. Note: The kit can also be used to splice a shielded to a non-shielded 5/8 kV cable. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
Manufacturer highlights
- Provides splicing on tape shield, wire shield and UniShield® cables
- This kit is suitable for use on solid dielectric cables, indoor or outdoor locations and direct-burial applications
- Insulator and jacket is made of EPDM for easy installation
- Rated for 5/8 kV applications
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 5553 5553 5KV&8KV COLD SHRINK RU
- Label description
- 3M(TM) Cold Shrink Rubber Splice Kit 5553 5kV and 8kV, 500-1000 kcmil Copper or Aluminum, 23 in, 1 per case
- Invoice description
- 5553 5KV&8KV COLD SHRINK RUBBER SP KIT
Specifications
- UPC
- 054007090915
- UNSPSC
- 39121718
- Country of Origin
- USA
- Type
- Inline Splice
- Voltage Rating
- 625 V
- Cable Size
- 1000 kcmil; 500 kcmil; 750 kcmil
- Number Of Cables
- 1
- Type
- Inline Splice
- Voltage Rating
- 625 V
Do you have a question about 5553?
