5622K
SKU: 5622K
MPN: 5622K
Key specs
View all- Type
- Cold Shrink QT-II Indoor Termination Kit
- Voltage Rating
- 6,000/8,000/15,000 V
Description
Product overview

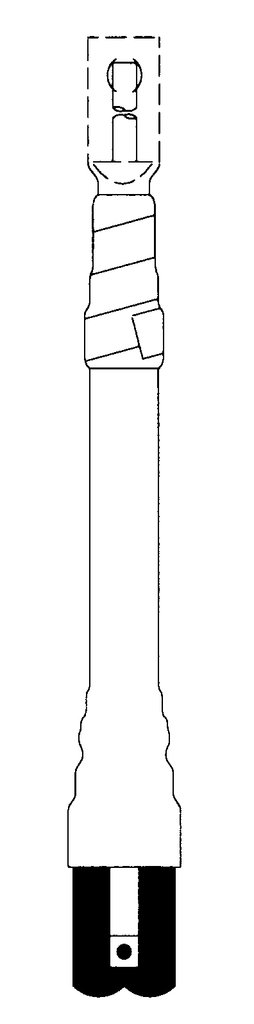

3M™ Cold Shrink QT II 5620K & 5630K Series Termination Kit includes sufficient material to make 3, skirted terminations. Each kit has materials to make 3 single phase terminations for tape shield, wire shield and UniShield® power cables..
3M™ Cold Shrink QT II 5620K & 5630K Series Termination Kit includes sufficient material to make 3, skirted terminations. Each kit has materials to make 3 single phase terminations for tape shield, wire shield and UniShield® power cables..
Manufacturer highlights
3M™ Cold Shrink QT II 5620K & 5630K Series Termination Kits are designed for terminating solid dielectric shielded, medium voltage power cables. The Q...
3M™ Cold Shrink QT II 5620K & 5630K Series Termination Kits are designed for terminating solid dielectric shielded, medium voltage power cables. The QT II termination uses high dielectric constant (High K) stress control tube insulated with a UV stable, track resistant, silicone insulator. The track resistant, hydrophobic propertities of the silicone rubber minimize leakage currents. Meets the requirements of IEEE Standard 48, for Class 1 for outdoor, weather exposed environments.
- One-piece cold shrink termination.
- High dielectric-constant material manages the distribution of electric field stress
- Suitable for weather protected areas (indoor)
- Silicone rubber insulation is track-resistance and hydrophobic action
Additional manufacturer notes
- Feed description
- 3M 5622K 5622K QTII INDOOR TERMINAT
- Invoice description
- 5622K QTII INDOOR TERMINATION 3 Pts/Kit
Specifications
- UPC
- 051128608906
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type
- Cold Shrink QT-II Indoor Termination Kit
- Voltage Rating
- 6,000/8,000/15,000 V
- Cable Type
- "Ribbon shield, wire shield or UniShield"
- Conductor Size
- "8-4, 8-6, 8, 2-2/0, 4-1/0, 6-1, 2/0-250, 1/0-4/0, 1-3/0, 4-2/0, 4-1, 300-750, 250-750, 4/0-600, 2/0-500, 1-350, 600-1500-, 500-1250, 350-1001"
- Standard
- IEEE
- Type
- Cold Shrink QT-II Indoor Termination Kit
- Voltage Rating
- 6,000/8,000/15,000 V
