$189.26 / EA
Local stock: 0
Lead time:
over 7 working days

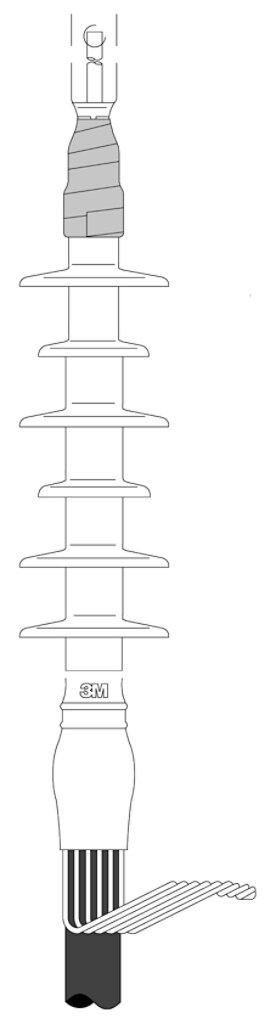

3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
150
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor, weather exposed applications
- Silicone rubber insulation is track-resistance and hydrophobic
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor, weather exposed applications
- Silicone rubber insulation is track-resistance and hydrophobic
- UPC
- 054007705277
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-II
- Voltage Rating:
- 892.857/15,000 V
- Additional Kit Contents:
- (1) SC0010 Stem Connector
- BIL:
- 150 kV
- Cable Insulation Outside Diameter Range:
- 0.64-1.12 in
- Cable Type:
- Jacketed Concentric Neutral (JCN)
- Conductor Size:
- 1/0 AWG
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- Yes
- Maximum Installed Length:
- 13.00 in
- Number Of Terminals:
- 1
- Number of Skirts:
- 6
- Standard:
- IEEE
- Type:
- QT-II
- Voltage Rating:
- 892.857/15,000 V
