5691K
SKU: 5691K
MPN: 5691K
Key specs
View all- Type
- QT-II
Description
Product overview

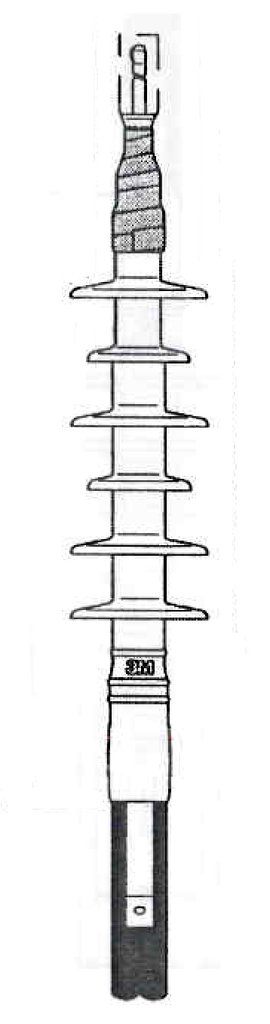

3M™ Cold Shrink QT II 5690K Series Termination Kit includes three 6 skirt, 1 piece terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
3M™ Cold Shrink QT II 5690K Series Termination Kit includes three 6 skirt, 1 piece terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
Manufacturer highlights
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor, weather exposed applications
- Silicone rubber insulation is track-resistance and hydrophobic
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 5691K 5691K 25 KV COLD SHRINK TE
- Label description
- 3M(TM) Cold Shrink Outdoor Termination Kit 5691K, 15 to 25/28 kV, 0.64-0.90 in (16,3-22,9 mm) Cable Insulation O.D.
- Invoice description
- 5691K 25 KV COLD SHRINK TERM
Specifications
- UPC
- 054007493952
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type
- QT-II
- BIL
- 150 kV
- Cable Insulation Outside Diameter Range
- 0.64-0.90 in
- Cable Type
- Tape Shield; UniShield(R); Wire Shield
- Lug/Stem Connector Included in Kit
- No
- Maximum Installed Length
- 15.00 in (Tape and Wire Shield) 14.50 in (UniShield(R))
- Number Of Terminals
- 1
- Number of Skirts
- 6
- Standard
- IEEE
- Type
- QT-II
