5811-BI-25
SKU: 5811-BI-25
MPN: 5811-BI-25
Key specs
View all- Amperage Rating
- 200 A
Description
Product overview

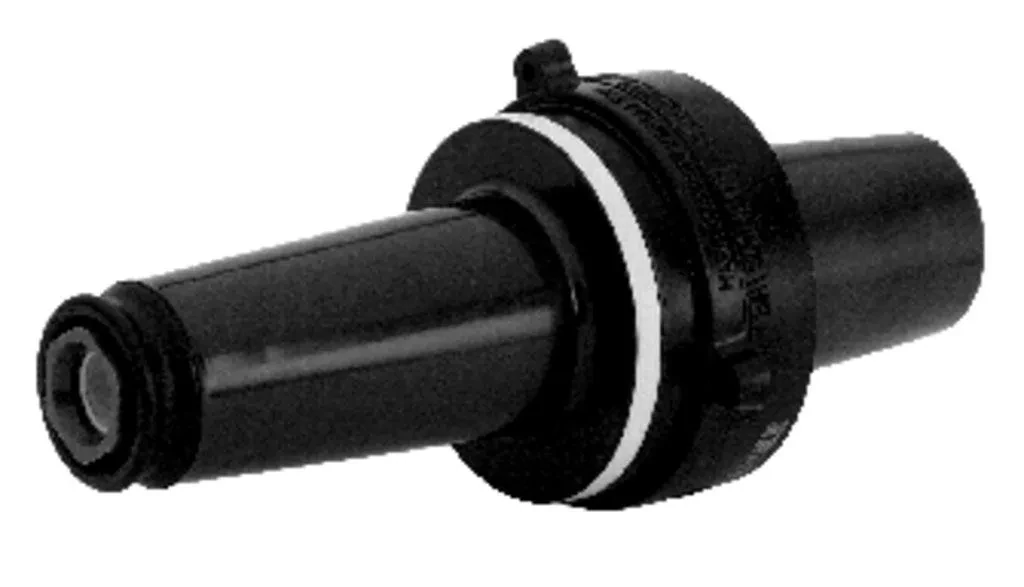

3M™ Industrial Loadbreak Bushing Insert Kit fits well into a universal bushing to provide a similar function as an integral loadbreak bushing. It is designed specifically for use in transformers, switches and other apparatus. This kit is 15 kV voltage rated and 200 amp current rated.
3M™ Industrial Loadbreak Bushing Insert Kit fits well into a universal bushing to provide a similar function as an integral loadbreak bushing. It is designed specifically for use in transformers, switches and other apparatus. This kit is 15 kV voltage rated and 200 amp current rated.
Manufacturer highlights
3M™ Industrial Loadbreak Bushing Insert Kit includes a loadbreak bushing insert, shipping cap, silicone lubricant and an installation instruction shee...
3M™ Industrial Loadbreak Bushing Insert Kit includes a loadbreak bushing insert, shipping cap, silicone lubricant and an installation instruction sheet. The bushing insert utilizes an all copper current path for efficient and reliable performance. The internal hex broach in the bushing aids in positive torque controlled installation. ANSI/IEEE Standard 386 Certified.
- Provides the same function as an integral loadbreak bushing
- All-copper current path offers high performance
- Suitable for use in transformers, switches and other apparatus
- Meets ANSI/IEEE Standard 386 requirement
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 5811-BI-25 5811-BI-25 200 AMP IN
- Label description
- 3M(TM) 200 Amp Industrial Loadbreak Bushing Insert 5811-BI-25
- Invoice description
- 5811-BI-25 200 AMP INDUSTRIAL LOADBREAK
Specifications
- UPC
- 054007437765
- UNSPSC
- 39121450
- Country of Origin
- USA
- Amperage Rating
- 200 A
Do you have a question about 5811-BI-25?
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
5810-B-250

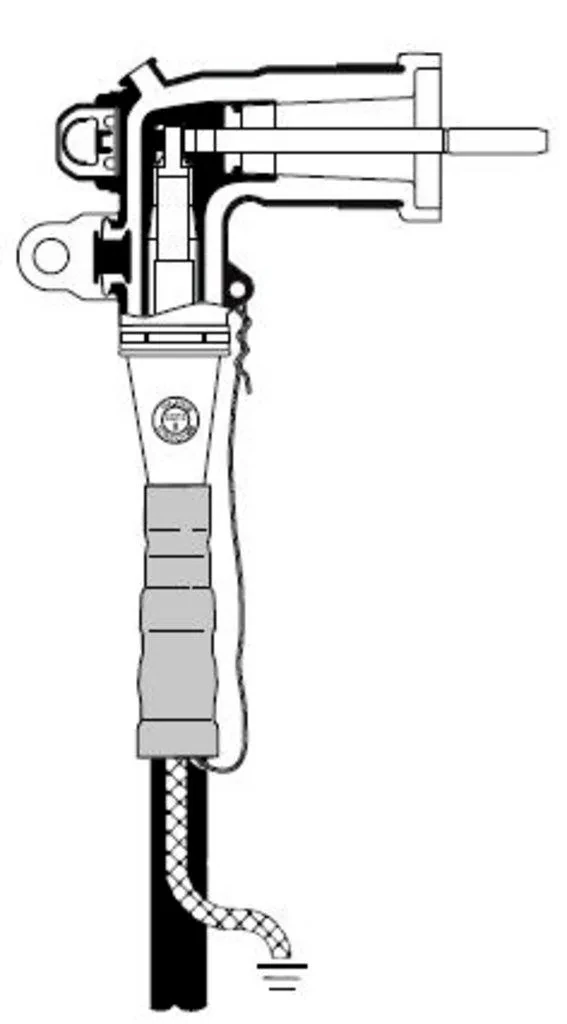

3M™ 5810 Series Industrial Loadbreak Elbow Kit is a fully shielded and insulated dead front termination. This kit is for connecting undergro...
