$72.47 / EA
manufacturer discounts
learn about discounts
- $64.97 for $1,500.00+
- $62.47 for $2,500.00+
- $59.98 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

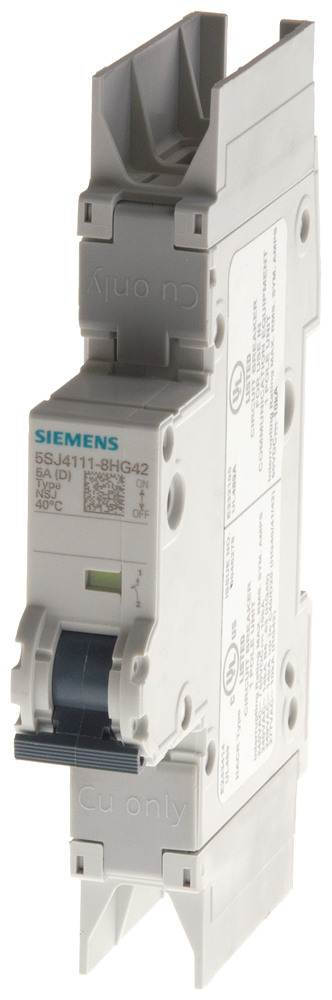

CIRCUIT BREAKER 10KA, 1POLE, C, 0.3A ACC. TO UL 489 - 277V
CIRCUIT BREAKER 10KA, 1POLE, C, 0.3A ACC. TO UL 489 - 277V
150
- UPC
- 754554959313
- UNSPSC
- 39121601
- Country of Origin
- DE
- Number Of Poles:
- 1
- Type:
- NSJ
- Voltage Rating:
- 277/480 V
- Breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235:
- 10kA
- Class:
- C
- Connection:
- Identical wire screw connections on line and load side.
- Frequency Rating:
- 50 Hz
- Height:
- 121
- Installation depth:
- 70
- Interrupt Rating:
- 10kA
- Mounting:
- On standard mounting rail (DIN 35mm)
- Mounting type:
- onstandardmountingrail
- Number Of Poles:
- 1
- Number of poles / Note:
- 1P
- Number of width units:
- 1
- Operating voltage / at DC / rated value / maximum:
- 60
- Operating voltage / minimum:
- 24
- Product extension / can be installed / supplementary devices:
- Yes
- Product feature / sealable:
- Yes
- Product function / neutral conductor switching:
- No
- Short Circuit Rating:
- 10kA
- Standard:
- UL 489 Rated
- Sub Brand:
- SENTRON
- Supply voltage / at AC / rated value:
- 400
- Supply voltage / with multi-phase operation / at AC / rated value:
- 400V
- Supply voltage / with single-phase operation / at AC / rated value:
- 230V
- Supply voltage frequency / rated value:
- 50
- Switching capacity current / acc. to EN 60898 / rated value:
- 10k
- Switching capacity current / acc. to IEC 60947-2 / rated value:
- 15kA
- Tripping characteristic class:
- C
- Tripping residual / rated value / derated current / at 55 Cel:
- 0.260A
- Tripping residual / rated value / derated current / at 60 Cel:
- 0.25
- Type:
- NSJ
- Type of voltage:
- AC/DC
- Voltage Rating:
- 277/480 V
- Width:
- 18
- mounting position:
- any
