$175.39 / EA
manufacturer discounts
learn about discounts
- $157.25 for $1,500.00+
- $151.20 for $2,500.00+
- $145.15 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

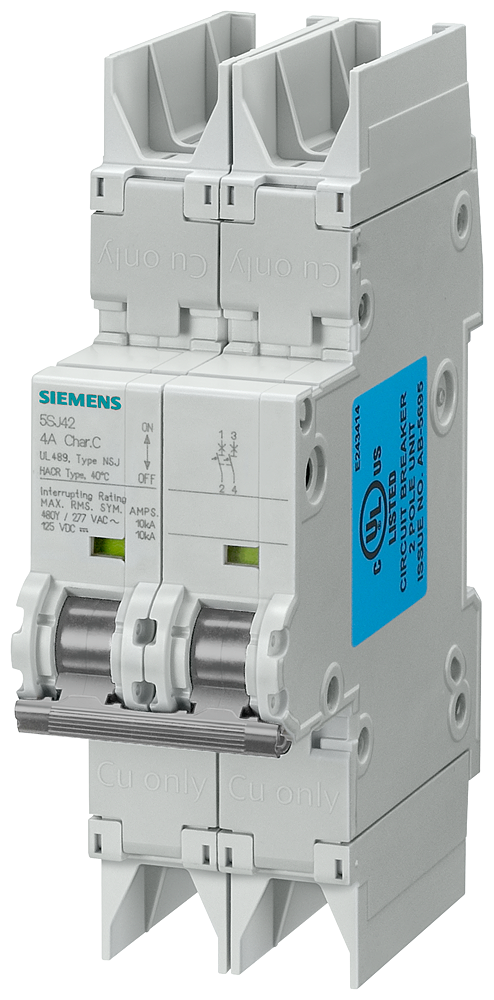

Switch_OVERCURRENT 5SJ4202-8HG42-5SJ4202-8HG42
Switch_OVERCURRENT 5SJ4202-8HG42-5SJ4202-8HG42
150
- UPC
- 754554959948
- UNSPSC
- 39121601
- Country of Origin
- DE
- Number Of Poles:
- 2
- Type:
- Miniature Circuit Breakers IEC
- Breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235:
- 10kA
- Current / at AC / rated value:
- 2
- Design of the product:
- Miniaturecircuit-breaker5SJ4
- Height:
- 121
- Installation depth:
- 70
- Mounting type:
- onstandardmountingrail
- Number Of Poles:
- 2
- Number of poles / Note:
- 2P
- Number of width units:
- 2
- Operating voltage / at DC / rated value / maximum:
- 60
- Operating voltage / minimum:
- 24
- Product designation:
- Miniaturecircuitbreakers
- Product extension / can be installed / supplementary devices:
- Yes
- Product feature / sealable:
- Yes
- Product function / neutral conductor switching:
- No
- Protection class IP:
- IP20,withconnectedconductors,IP40inthehandlerange
- Sub Brand:
- SIEMENS
- Supply voltage / at AC / rated value:
- 400
- Supply voltage / with multi-phase operation / at AC / rated value:
- 400V
- Supply voltage frequency / rated value:
- 50
- Switching capacity current / acc. to EN 60898 / rated value:
- 10k
- Switching capacity current / acc. to IEC 60947-2 / rated value:
- 15kA
- Tripping characteristic class:
- D
- Tripping residual / rated value / derated current / at 40 Cel:
- 2
- Tripping residual / rated value / derated current / at 45 Cel:
- 1.900A
- Tripping residual / rated value / derated current / at 50 Cel:
- 1.9
- Tripping residual / rated value / derated current / at 55 Cel:
- 1.800A
- Tripping residual / rated value / derated current / at 60 Cel:
- 1.8
- Type:
- Miniature Circuit Breakers IEC
- Type of voltage:
- AC/DC
- Width:
- 36
- circuit-breaker / Design:
- 5SJ4
- mounting position:
- any
- product brand name:
- SENTRON
