$253.95 / EA
manufacturer discounts
learn about discounts
- $227.68 for $1,500.00+
- $218.92 for $2,500.00+
- $210.17 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
CIRCUIT BREAKER 10KA, 3POLE, C, 35A ACC. TO UL 489 - 480Y/277V
CIRCUIT BREAKER 10KA, 3POLE, C, 35A ACC. TO UL 489 - 480Y/277V
150
- UPC
- 754554960111
- UNSPSC
- 39121601
- Country of Origin
- DE
- Material:
- N/A
- Number Of Poles:
- 3
- Size:
- N/A
- Type:
- NSJ
- Voltage Rating:
- 240 V
- Adapter Rating:
- N/A
- Ambient temperature / during storage / minimum:
- -40
- Ambient temperature / maximum:
- 55
- Ambient temperature / minimum:
- -25
- Breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235:
- 10kA
- Class:
- C
- Connection:
- Identical wire screw connections on line and load side.
- Degree of pollution:
- 3
- Element:
- N/A
- Frequency Rating:
- 50 Hz
- Height:
- 121
- Influence of the surrounding temperature:
- max.95%humidity
- Installation depth:
- 70
- Interrupt Rating:
- 14kA
- Material:
- N/A
- Mounting:
- On standard mounting rail (DIN 35mm)
- Mounting type:
- onstandardmountingrail
- Number Of Poles:
- 3
- Number of width units:
- 3
- Product extension / can be installed / supplementary devices:
- Yes
- Product feature / sealable:
- Yes
- Protection class IP:
- IP20,withconnectedconductors,IP40inthehandlerange
- Response Time:
- N/A
- Short Circuit Rating:
- 14kA
- Size:
- N/A
- Standard:
- UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2
- Sub Brand:
- SENTRON
- Switching capacity current / acc. to EN 60898 / rated value:
- 10k
- Switching capacity current / acc. to IEC 60947-2 / rated value:
- 15kA
- Type:
- NSJ
- Type Of Indicators:
- N/A
- Voltage Rating:
- 240 V
- Width:
- 54
- mounting position:
- any
Recently Viewed
-
5SJ4335-7HG42
SIEMENS INDUSTRY, INC.
CIRCUIT BREAKER 10KA, 3POLE, C, 35A ACC. TO UL 489 - 480Y/277V
See more details -
3VA6325-8KM32-2AA0
SIEMENS INDUSTRY, INC.
Unfortunately, we do not have a description available for 3VA6325-8KM32-2AA0. Please call (800) 46...
See more details -
KT-LED5.5FG25-E26-927-C
KEYSTONE TECHNOLOGIES, LLC
Unfortunately, we do not have a description available for KT-LED5.5FG25-E26-927-C. Please call (80...
See more details -
3SU11500AB501BA0
SIEMENS INDUSTRY, INC.

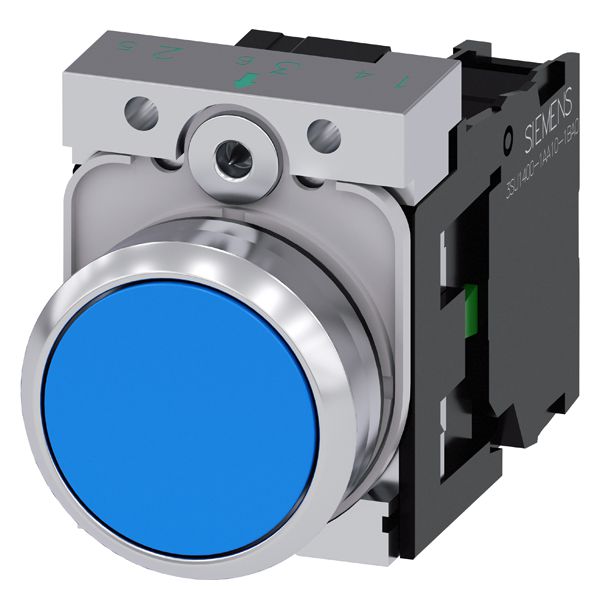

Pushbutton, 22mm, round, metal, shiny, blue, flat button, momentary contact type, with holder, 1NO, screw terminal
